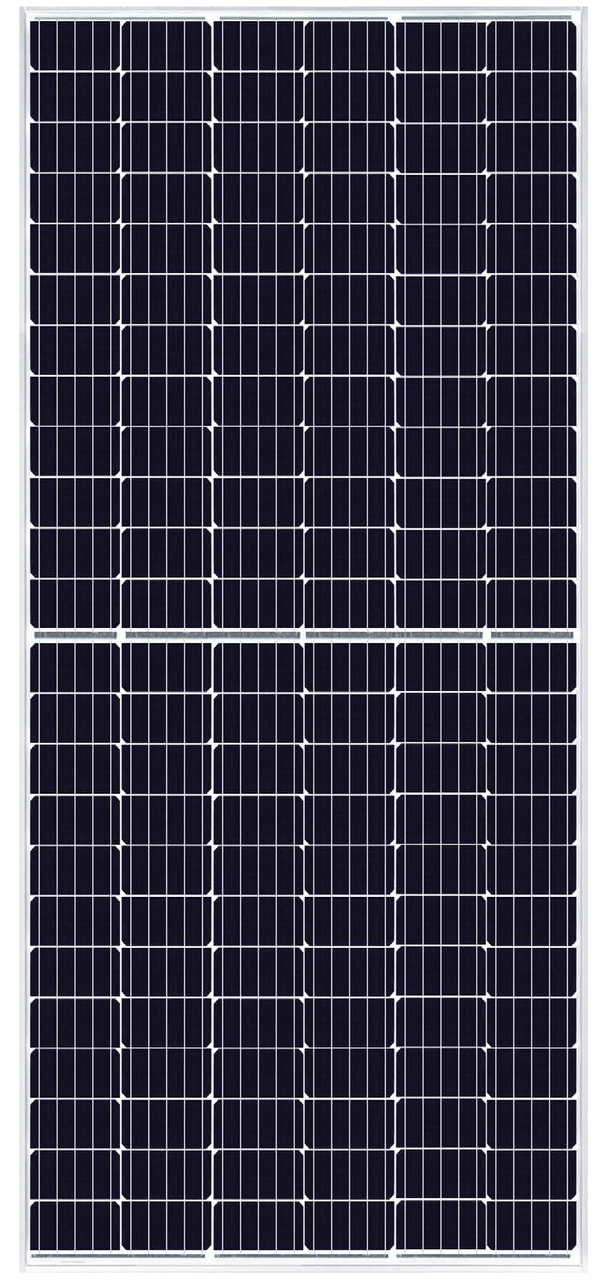

Canadian Solar KuMax CS3U-390MS 390w Mono Solar Panel

Hover over image to zoom

  • CS3U-390MS
Canadian Solar
Discontinued
SKU: SLR-110-1257
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 49.80 LBS

 Product Description

Canadian Solar 390W Mono Solar Panel - KuMax - CS3U-390MS

Canadian Solar, 390W PV Module, 1670mm (65.7”)PV Wire, T-4 Connector, 35mm Clear Frame on White Backsheet, 144 ½ Cells, Mono-PERC, 5BB, 20A Fuse, 1000VDC, 363.5 PTC, CS3U-390MS

With Canadian Solar's industry leading mono-PERC cell technology and the innovative LIC (Low Internal Current) module technology, Canadian Solar is now able to offer global customers high power mono modules up to 380 watts.

The KuMax mono-PERC modules offer unique features such as: higher power classes for equivalent module sizes, high module efficiency (up to 19.15%), low hot spot temperature risk, low temperature coefficient (Pmax) of -0.37% / °C and Low NMOT (Nominal Module Operating Tempreature) of 42±2°C.

Features

  • Highlights - Lower power loss in cell connection. Heavy snow load up to 5400 Pa. Wind load up to 2400 Pa. Low BoS cost with 1500 VDC system voltage. High PTC rating of up to: 93.13%.



General Information
Manufacturer: Canadian Solar
Product Line:
KuMax
Model ID:
CS3U-390MS
Certifications and Safety Ratings: iec.jpg  ul.jpg  vde.jpg  csa.jpg  ce.gif  mcs.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
78.70 x 39.10 x 1.57 inches (CS3U-390MS Dimensions)
Weight: 49.80 lbs
Cell Arrangement: 144 Mono Cells [2 x (12x6)]
Front Cover: 3.2mm Tempered Glass
Frame: Anodized Aluminum Alloy, Crossbar Enhanced
J-Box: IP87, 3 Diodes
Cable: 4 mm² (IEC), 12 AWG (UL)
Cable Length: 49.2 Inches
Connector: T4 Series
Per Pallet: 27 pieces
Per Container (40' HQ): 594 Pieces
Module Efficiency: 19.15%
Operating Temperature: -40°C to +85°C



Electrical Data

Nominal Maximum Power (Pmax): 390 Watts
Optimum Operating Voltage (Vmp): 40.4 Volts
Optimum Operating Current (Imp): 9.66 Amps
Open Circuit Voltage (Voc): 47.80 Volts
Short Circuit Current (Isc): 10.01 Amps
Nominal Module Operating Temperature: 42±2°C



Datasheets

Document Type
logo-adobe-pdf-2.jpgCanadian Solar CS3U-390MS Specs Specifications
logo-adobe-pdf-2.jpgCanadian Solar Installation Guide Installation Guide
Warranty 10 Year Limited Product Warranty
Performance Guarantee 25 Year Limited Performance Warranty
logo-adobe-pdf-2.jpgCanadian Solar Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Canadian Solar - Canadian Solar KuMax CS3U-390MS 390w Mono Solar Panel
Price:
Condition: new



 Warranty Information

Warranty: 10 Year Limited Product Warranty
Performance Guarantee: 25 Year Limited Performance Warranty
