Canadian Solar SuperPower CS6K-310MS 310w Mono Solar Panel

Hover over image to zoom

  • CS6K-310MS
  • CS6K-310MS-Black
Canadian Solar
Discontinued
SKU: CS6K-310MS
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 40.10 LBS

 Product Description

Canadian Solar 310w Mono Solar Panel - CS6K-310MS

Canadian Solar, 310W PV Module, PV Wire, T4 (MC4-comparable), 35mm Black Frame on White Backsheet, BOW, 60 Cell Mono-PERC, CS6K-310MS

Canadian Solar‘s new SuperPower modules with Mono-PERC cells significantly improve efficiency and reliability. The innovative technology offers superior low irradiance performance in the morning, in the evening and on cloudy days, increasing the energy output of the module and the overall yield of the solar system.

CANADIAN SOLAR INC. is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading PV project developer and manufacturer of solar modules with over 16 GW deployed around the world since 2001, Canadian Solar Inc. (NASDAQ: CSIQ) is one of the most bankable solar companies worldwide.

Features

  • Highlights - 11% more power than convential modules. Excellent performance at low irradiance of up to 97.5%. High PTC rating of up to 91.87%. Improved energy production due to low temperature coefficients. IP67 junction box for long-term weather endurance. Heavy snow load up to 5400Pa, wind load up to 5400 Pa.



General Information
Manufacturer: Canadian Solar
Product Line:
SuperPower
Model ID:
CS6K-310MS
Certifications and Safety Ratings: ce.gifcsa.jpg ul.jpg vde.jpg mcs.jpg tuv.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:

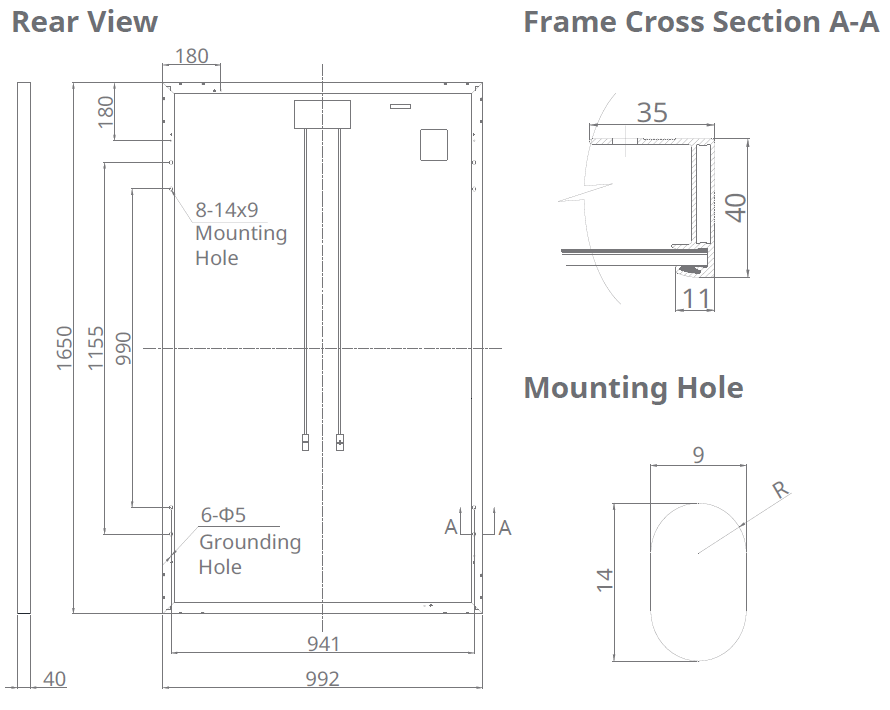

65.00 x 39.10 x 1.57 inches (CS6K-310MS Dimensions)
Weight: 40.10 lbs
Cell Arrangement: 60 (6x10)
Front Cover: 3.2mm Tempered Glass
Frame Material: Anodized Aluminum Alloy (Black)
Junction Box: IP68, 3 Diodes
Cable: 4 mm² (IEC), 12 AWG (UL) , 1000 mm (39.4 in)
Module Connector: T4 Series
Per Pallet:
27 Pieces, 1186.1 lbs
Per Container (40' HQ): 756 Pieces
Operating Temperature: -40°C to +85°C



Electrical Data

Nominal Maximum Power (Pmax): 310 Watts
Optimum Operating Voltage (Vmp): 32.90 Volts
Optimum Operating Current (Imp): 9.43 Amps
Open Circuit Voltage (Voc): 40.10 Volts
Short Circuit Current (Isc): 9.99 Amps
Module Efficiency: 18.94%
Maximum System Voltage: 1000V (IEC) or 1000V (UL)
Module Fire Performance: Type1 (UL 1703) or Class C (IEC 61730)
Max Series Fuse Rating: 15 Amps
Application Classification: Class A
Power Tolerance: 0 / +5 W



Datasheets

Document Type
logo-adobe-pdf-2.jpgCanadian Solar CS6K-310MS Specs Specifications
logo-adobe-pdf-2.jpgCanadian Solar Installation Installation Guide
Warranty 10 Year Limited Product Warranty
Performance Guarantee 25 Year Limited Performance Warranty
logo-adobe-pdf-2.jpgCanadian Solar Warranty Warranty
