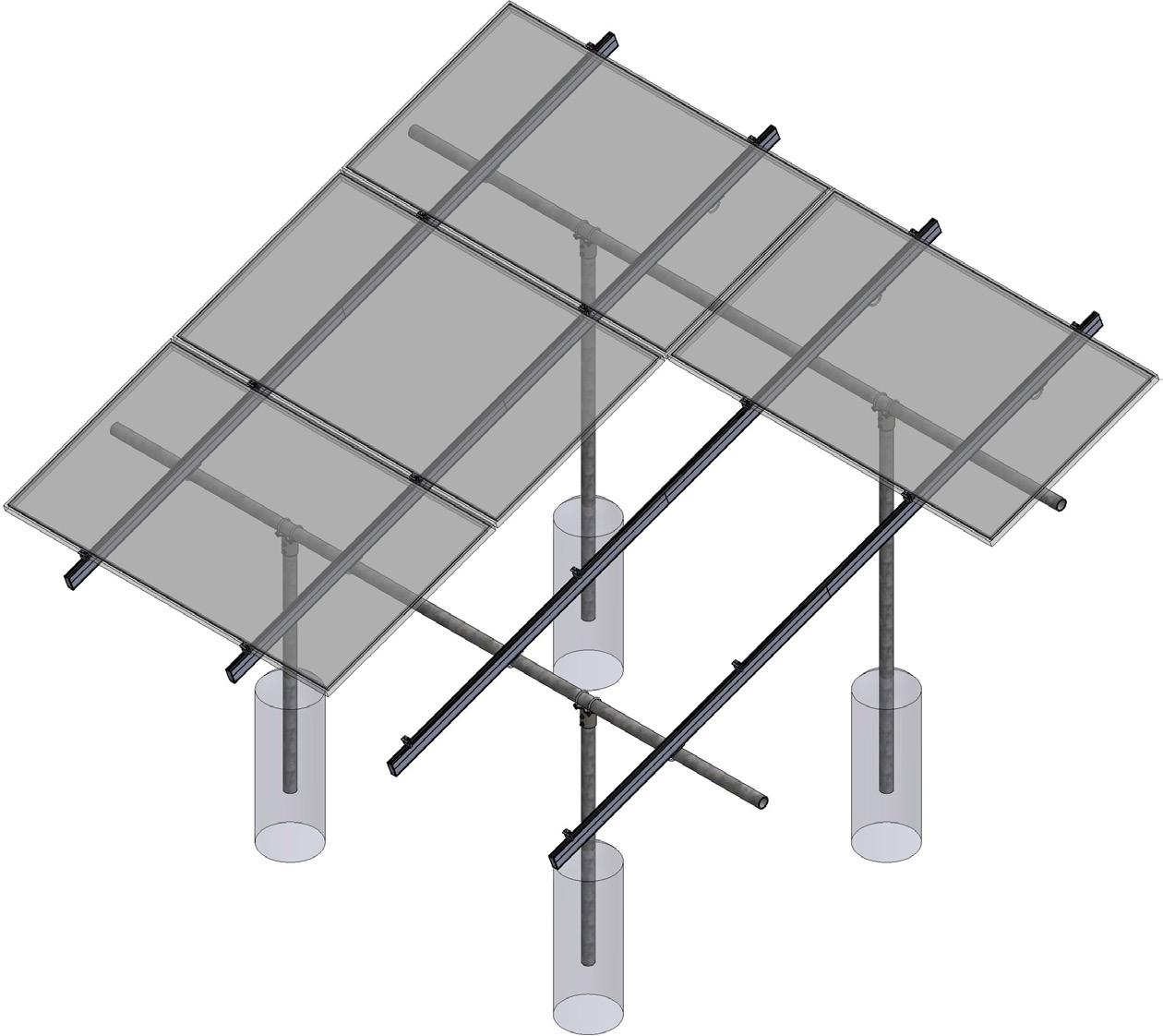

Tamarack Solar 91603-A GM Kit C-3IN - For 4 Modules, 0 Posts & 3-IN Pipe

Save Time and Money
Low-cost, rail-based Ground Mount Kits provides for an easy installation, simple wire management, great strength and economical shipping!

Features

• Heavy-duty 3.1 Mill-finish aluminum rails
• Rated for up to 170 MPH wind speed and 140 PSF of snow load
• Kits are available for 3 or 4 modules per column
• Combine multiple kits to create an array up to 100 ft long
• Kit includes everything needed except:
  • Concrete / Ground Screws
  • 2-IN or 3-IN Schedule-40 Pipe
  • Swivel Tees for cross-bracing, if needed
• UPS-Shippable!
• UL 2703 Listed - All components meet the UL standards and have a Class A Fire Rating for Type 1 and 2 modules
• Best Wire Management - PV cables and wiring for module-level electronics fits inside rails to avoid time consuming wire management
• PE Certified - Pre-stamped engineering letters available for all 50 states and Washington DC

Mount modules with frame thickness between 30mm and 40mm. Deeper module frames (up to 46mm) can be used by adding 5050+ Mounting Clamps (sold separately).

Maximum module width: 45 INCHES

Sites with a ground slope greater than 15° may require additional engineering certification.

Some situations require cross bracing - use our Ground Mount Configurator Tool
