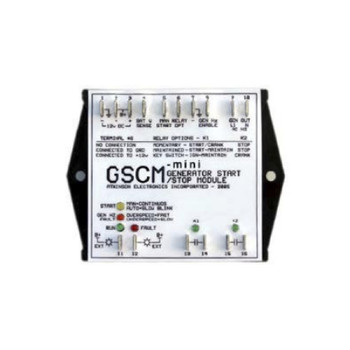

Atkinson GSCM-MINI-I Generator Start Module

GSCM-MINI-I

Hover over image to zoom

  • GSCM-MINI-I
Atkinson Electronics
MSRP: $356.93
$268.25 (You save $88.68)
SKU: ALG-020-06343
Condition: New
Weight: 1.40 LBS
Shipping: Calculated at checkout
  • Buy 2 - 4 and get 2% off
  • Buy 5 or above and get 3% off

 Product Description

Atkinson Electronics Generator Start Control Module - MSCM-MINI-I

Atkinson Electronics, Generator Start Control Module, MSCM-MINI-I

The GSCM-mini-I is a micro-processor based generator start-stop module, designed to auto start-stop high speed gas and diesel generators needing a 3 wire connection from a 2 wire 12 volt manual start command. It automatically disconnects the starter when a minimum generator AC Hz output is measured, it can monitor the generator’s output, shutting it down if either an over or under Hz condition is detected. LEDs are flashed to indicate the cause of the shutdown. Manually resetting the GSCM-mini-I (by removing the power), removes the lockout and allows the generator to restart if called to do so. The GSCM-mini-I is powered by 12VDC from the generator battery, and can monitor the battery voltage and start the generator to charge it’s own battery. All Thresholds are fixed. The GSCM-mini-I is a limited function controller, part of the GSCM family. If adjustability is required use the GSCM full function Generator Start Control Module.

Features

  • Highlights - PV charge and lighting controller - waterproof. Micro-controller for digital accuracy and reliability. Fully automatic operation on 12V or 24V DC systems. Automatic dusk and dawn lighting control. All night, or adjustable time-off for area lighting with pre-dawn lighting for signs. We handle up to 15 AMps @ 28VDC from PV panels and lighting loads up to 15 Amps. Built-in low voltage disconnect, max load 12 Amps. Built-in temperature compensation for PV charging. LED indication of solar charge and lighting control. Selectable operation for sealed/flooded batteries. Pulse action reduces battery sulfaction. Applications: Photovoltatic charge and lighting controller for: area lighting, roadside sides, warning signs, etc.



General Information
Manufacturer: Atkinson Electronics
Product Line:
 Atkison Accessory
Model ID:
 MSCM-MINI-I
Certifications and Safety Ratings: ce.gif



Mechanical Data

Technology: Generator Start Module
Dimensions:
 5.13 x 2.85 x 1.35 inches
Weight: 1.40 lbs
Relay Configuration: Open Input = Momentary Crank; Grounded Input = Maintained Crank; B+ (12VDC) Input = Ignition and Crank
Fault Detection: Start Failure: 3 Attempts; Over Hz Condition: 10 Seconds; Under Hz Condition: 10 Seconds; Maximum Run Time Auto Restart within 30m; Generator Stops Due to its Own Fault Condition



Electrical Data

Crank Delay: 5 Seconds
Maximum Crank: 20 Seconds
Crank Disconnect: 45 Hz
Under Speed Shutdown: 55 Hz
Over Speed Shutdown: 65 Hz
Maximum Auto Start Run Time: 6 Hours
Auto Start/Stop Thresholds
12 V System: Start: 11.5V; Stop: 13.8V
24 V System: Start 23.0V; Stop: 27.6V
48 V System: Start: 46.0V; Stop 55.2V



Datasheets

Document Type
logo-adobe-pdf-2.jpgAtkinson Electronics MSCM-MINI-I Specs Specifications
logo-adobe-pdf-2.jpgAtkinson Electronics MSCM-MINI-I Diagram Diagram
Warranty 2 Year Limited Warranty (See Specifications Sheet)
