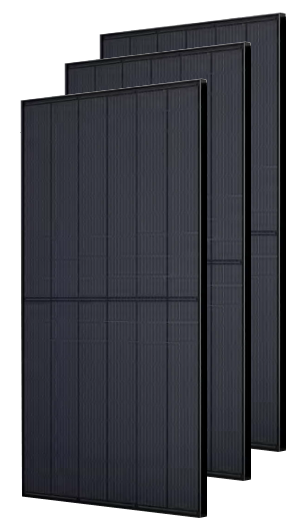

TrinaSolar TSM-330-DD06M.05(II) 330w Mono Solar Panel Pallet

Hover over image to zoom

  • TSM-330-DD06M.05
  • TSM-330-DD06M.05(II)
Trina Solar
Discontinued
SKU: TSM-330-DD06M.05-30
Note: Ships LTL Freight
Condition: New
Weight: 1,236.30 LBS

 Product Description

TrinaSolar 330w Mono Solar Panel - TSM-330-DD06M.05(II) - Pallet 30ct

Trina, 330W PV Module, MC-4 Connector, PV Wire~47", 35mm Black Frame with Black Backsheet, BoB, 120 1/2 Cell Mono, 20A Fuse, 1000VDC, 3.2mm glass, 302.8 PTC, TSM-330-DD06M.05(II), Pallet 30ct

Trina Solar DD06M series modules feature half cut cell architecture with a split center mounted J-Box layout. Split series cell layout improves module resilience and reduces the impact of partial shade. These modules include 1200mm cables - compatible with landscape layout.

Founded in 1997, Trina Solar is the world’s leading comprehensive solutions provider for solar energy. We believe close cooperation with our partners is critical to success. Trina Solar now distributes its PV products to over 60 countries all over the world. Trina Solar is able to provide exceptional service to each customer in each market and supplement our innovative, reliable products with the backing of Trina Solar as a strong, bankable partner. We are committed to building strategic, mutually beneficial collaboration with installers, developers, distributors and other partners.

Features

  • High Power Output - Reduce BOS cost with high power bin and module efficiency. New cell string layout and split junction box location reduces the energy loss caused by inter-row shading. Lower resistance of half-cut cells and increased MBB (Multi Busbar) reflectance ensure higher power.
  • High Efficiency & Low LCOE - Excellent 3rd party validated IAM and low light performance with cell process and module material optimization. Low Pmax temp coefficient (-0.36%) increases energy production. Better ani-shading performance and lower operating temperature.
  • Excellent Aesthetics & Easy Installation - Designed for superior rooftop aesthetics. Thinner wires give an eye catching all black look. Safe and easy to transport, handle and install. Certified to perform in highly challenging environments.



General Information
Manufacturer: TrinaSolar
Product Line:
AllMax Plus
Model ID:
TSM-330-DD06M.05(II)
Certifications and Safety Ratings: ce.giful.jpg tuv.jpg iso.jpg pv-cycle.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
66.85 x 39.53 x 1.38 inches
Weight: 41.21 lbs
Front Glass: 32 mm, High Transmission, AR Coated Tempered
Encapsulant Material: EVA
Backsheet: Black
Frame: Anodized Aluminum Alloy (Black)
Junction Box: IP68 Rated
Cables: Photovoltatic Technology Cable 4.0mm², 1000mm
Connector: MC4



Electrical Data

Maximum Power (Pmax): 330 Watts
Power Output Tolerance (Pmax): 0/+5
Maximum Power Voltage (Vmpp): 33.8 Volts
Maximum Power Current (Impp): 9.76 Amps
Open Circuit Voltage (Voc): 40.6 Amps
Short Circuit Voltage (Isc): 10.4 Amps
Module Efficiency: 19.4%



Datasheets

Document Type
logo-adobe-pdf-2.jpgTrinaSolar TSM-330-DD06M.05(II) Specs Specifications
logo-adobe-pdf-2.jpgTrinaSolar Installation Installation Guide
Warranty 10 Year Limited Product Warranty
Performance Guarantee 25 Year Limited Power Output Warranty
logo-adobe-pdf-2.jpgTrinaSolar Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Trina Solar - TrinaSolar TSM-330-DD06M.05(II) 330w Mono Solar Panel Pallet
Price:
Condition: new



 Warranty Information

Warranty: 10 Year Limited Product Warranty
Performance Guarantee: 25 Year Limited Power Output Warranty
