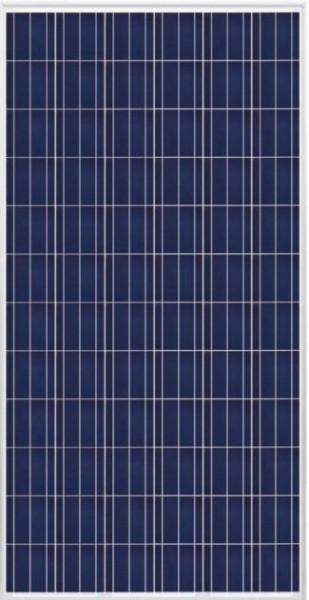

TrinaSolar TSM-310PD14 310W Poly Solar Panel

TSM-310PD14

Hover over image to zoom

  • TSM-310PD14
Trina Solar
MSRP: $461.45
$240.00 (You save $221.45)
SKU: SLG-110-0951
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 60.80 LBS
  • Buy 4 - 23 and get 2% off
  • Buy 24 or above and get 5% off

 Product Description

TrinaSolar 310w Mono Solar Panel - TSM-310PD14

310W PV Module, MC4, PV Wire, 40mm Silver Frame with White Backsheet, 72 Cell Poly, 15A Fuse, 1000VDC, 4mm glass, 282.5W PTC.

TrinaSolar's TSM-310PD14 is a 72-cell, high output module designed for PV installations. The module is dual rated 1000V IEC and UL, which enables longer strings, lower BOS, and greater inventory flexibility.

Features

  • Ideal for Large Scale Installations - High power footprint reduces installation time and BOS costs.
  • Reliability & Quality - Field proven performance. Strong, reliable supplier. Over 30 in-house tests (UV, TC, HF, and many more). In-house testing goes well beyond certification requirements.
  • Environmental Certifications - 2400 Pa wind load. 5400 Pa snow load. 25 mm hail stones at 82 km/hr.



General Information
Manufacturer: TrinaSolar
Product Line:
 PD14
Model ID:
 TSM-310PD14
Certifications and Safety Ratings: ce.giful.jpg tuv.jpg iso.jpg pv-cycle.jpg



Mechanical Data

Technology: Polycrystalline (Poly)
Dimensions:
 77.00 x 39.05 x 1.57 inches (TSM-310PD14 Dimensions)
Weight: 60.80 lbs
Front Glass: High Transparency Solar Glass (0.16 in)
Cells: 72 (6 x 12)
Frame: Anodized Aluminum Alloy (Silver)
Back Sheet: (White)
Module Connector: MC4-EVO 3
Junction Box: IP65 or IP67
Output Cables:
 Photovoltaic Technology Cable 4.0mm² (0.006 inches²), 1200mm (47.2 inches)



Electrical Data

Peak Power (Pmax): 310 Watts
Open Circuit Voltage (Voc): 45.50 Volts
Maximum Power Point Voltage (Vmpp): 37.00 Volts
Short Circuit Current (Isc): 8.85 Amps
Maximum Power Point Current (Impp): 8.38 Amps
Series Fuse Rating: 15 Amps
Operating Temperature: -40°C + 85°C
Module Efficiency: 16.00%
Maximum System Voltage: 1000V
Power Sorting: -0 Wp / +3 Wp



Datasheets

Document Type
logo-adobe-pdf-2.jpgTrinaSolar TSM-310PD14 Specs Specifications
logo-adobe-pdf-2.jpgTrinaSolar TSM-310PD14 Installation Installation Guide
Warranty 10 Year Limited Product Warranty
Performance Guarantee 25 Year Limited Power Output Warranty
logo-adobe-pdf-2.jpgTrinaSolar TSM-310PD14 Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Save


Trina Solar - TrinaSolar TSM-310PD14 310W Poly Solar Panel
Price: 240
Condition: new



 Warranty Information

Warranty: 10 Year Limited Product Warranty
Performance Guarantee: 25 Year Limited Power Output Warranty
