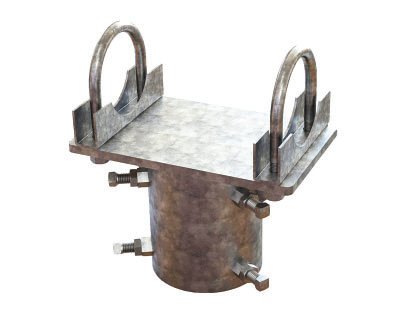

Tamarack Solar 70-0300-PGM High Wind Top Cap

Tamarack, Additional Pole Cap for high wind locations, 2 pole, 70-0300-PGM

The PGRM Series Pole Mount can be used to mount up to 6 solar modules with a frame thickness between 1.18” and 2”.

• Install up to 92 square feet of modules on a single 4” Schedule 40 pole and up to 130 square feet of modules on two 4” schedule 40 poles
• Suitable for wind speeds up to 115 MPH
• For high wind locations add an additional vertical pole
• Tilt angle can be adjusted from 0° to 60° and is easily adjusted seasonally
• All sizes can ship by UPS Ground
• Simple one-person installation and adjustment
• User supplies 4” schedule 40 steel pipe(s) for vertical pole and a 3” schedule 40 steel pipe for the horizontal beam.
• Calculation of the required horizontal beam length (L) in inches: L = W x N + (N + 1) x 1.4 where N = number of modules and W = module width in inches

Features

• Highlights - Easy installation and high compatibility.
