SimpliPhi AccESS A-4PHI-CC-SCH 14kWh Battery System w/CC

Hover over image to zoom

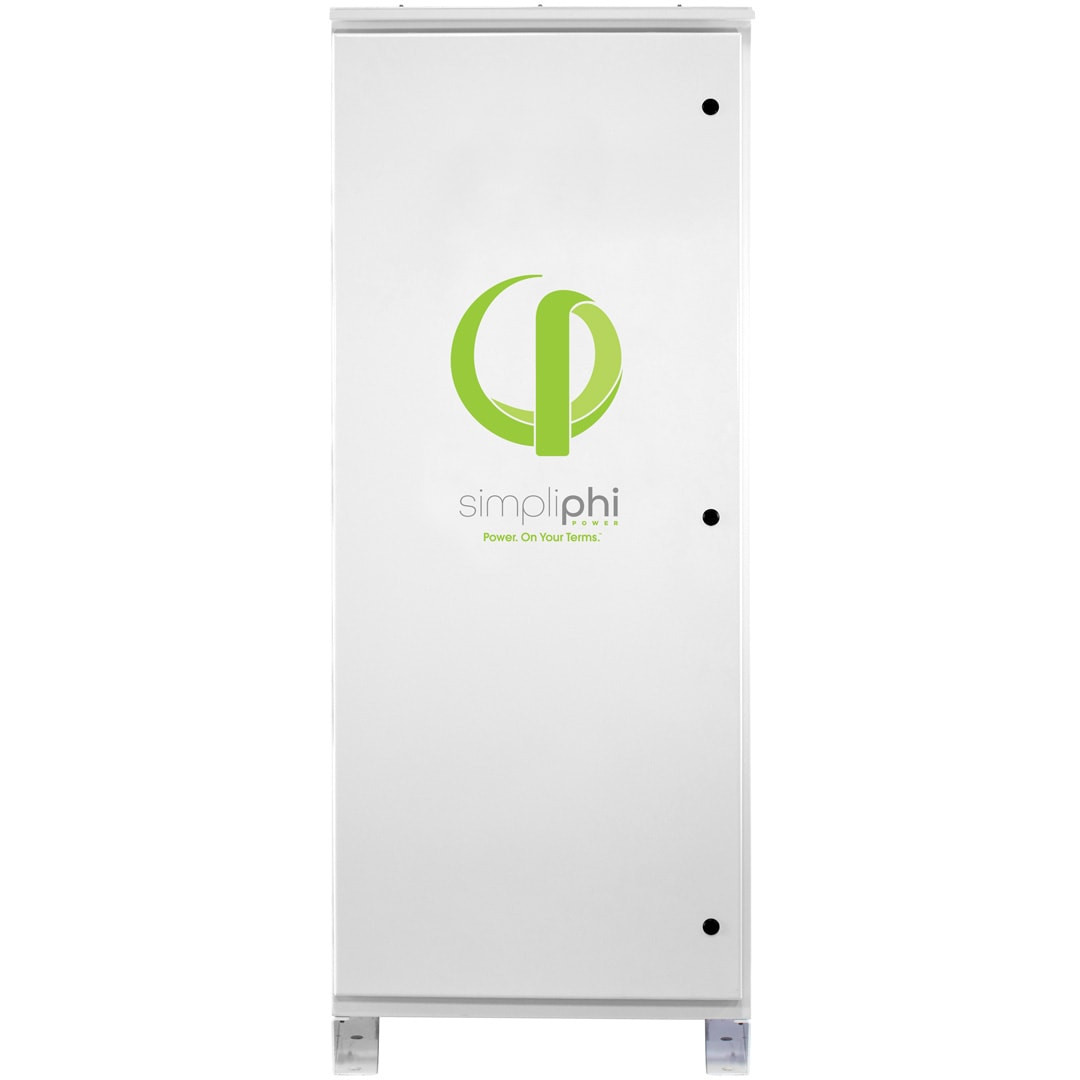

  • A-4PHI-CC-SCH
  • A-4PHI-CC-SCH Side
  • A-4PHI-CC-SCH Side
  • A-4PHI-CC-SCH Internal Battery Bank
SimpliPhi
Unavailable
SKU: A-4PHI-CC-SCH-Z
Note: Ships LTL Freight Only
Condition: New
Weight: 600.00 LBS

 Product Description

SimpliPhi Schneider Battery System - A-4PHI-CC-SCH

SimpliPhi AccESS w/ 4 x PHI 3.5 kWh Batteries & 2 x Charge Controllers, A-4PHI-CC-SCH

SimpliPhi Power designs and manufactures efficient, non-toxic and enduring energy storage and management systems that utilize lithium ferro phosphate (LFP). Based in California, SimpliPhi combines non-hazardous LFP chemistry with its proprietary cell and battery architecture, power electronics, battery management system (BMS) and manufacturing methods to create safe, reliable, durable and highly scalable on-demand power solutions. Available for the residential, commercial, military and emergency response markets, SimpliPhi storage solutions have been rigorously tested and passed operational performance requirements by the U.S. Army and Marine Corps. Integral to all SimpliPhi solutions is a proprietary management system that further optimizes the life-cycle, round-trip efficiency rate, performance and durability of its batteries. SimpliPhi PHI 3.5 kWh 48V 60 Amp batteries are Certified to UL 1973 Standard.

Features

  • Standard Features - Pre-programmed ESS for backup power, peak shaving, and self consumption of solar PV. Internal transfer switch automatically disconnects from the grid during power outages and provides standby power for critical circuits. Outdoor rated enclosure can be free-standing, or pad-mounted. Advanced LFP batteries with up to a 10,000 cycle / 10-year warranty. 98% round trip efficiency. Remote monitoring by web browser or mobile device app. No cobalt, thermal regulation, or risk of fire. Extended operation temperature. Solar MPPT for DC-coupled or off-grid installations. Automatic generator control for additional standby power.
  • Applications - SIA (Standard Interconnection Agreement) customers: ESS allows for solar PV poer to be self-consumed, while also providing a backup power source. NEM (Net Energy Metering customers: add standby power and peak-shaving to a new or existing net-metered solar array. Off-grid customers: ESS with 8kW solar MPPT combines power generation and energy management in a single package.
  • Intelligent - AccESS power security with safe, reliable, non-hazardous and efficient energy storage. AccESS any power generation source with intelligent management. AccESS your own power when and where you need it - inside or outside your home or business.



General Information
Manufacturer: SimpliPhi
Product Line:
AccESS
Model ID:
A-4PHI-CC-SCH
Certifications and Safety Ratings: ul.jpg etl.jpg  ce.gifrohs.jpg



Mechanical Data

Technology: Lithium Ferro phosphate (LFP) Battery
Dimensions:
29.50 x 76.00 x 20.00 inches
Weight: 600.00 lbs (without batteries)
Enclosure Rating: NEMA 3R Outdoor Rated
Mounting: Free Standing or Pad Mounted
System Control Panel (No Internet): Systems Control Panel (SCP)
Battery Monitor: Conext Battery Monitor
Internet Connected Monitor/Command: ComBox or Gateway



Electrical Data

Battery
SimpliPhi Power: PHI 3.5kWh 48V (x4)
UL Rating: UL 1973 Standard (ETL Certified)
Rated kWh Capacity @C/2: 15.2 kWh
Max. Combined Output Power: 7.6 kW DC
Max. Combined Charge Current: 150 ADC
Charging Temperature: 0°C to 49°C
Depth of Discharge: Up to 100% DoD
Round Trip Efficiency: 98%
Cycle Life: 10,000+ (@80% DOD)
Warranty Period: 10 Years
Solar (Select Modules)
Schneider Electric Charge Controller: Conext MPPT 80 600
Max. Connected PV Power: 4.8kW
Max. Charge Current: 80ADC
Max. Operating PV Array Voltage: 195 to 550VDC
Max. Open Circuit PV Array Voltage: 600VDC
Inverter
Schneider Electric: Conext XW Pro or XW+ 6848
Application: On/Off Grid
AC Connections: 1 Grid Port, 1 Generator Port
AC Output: 48A (120VAC) / 27A (240VAC), 60 Hz
Rated Output Power: 6.8kW Continuous
Max . Output Charging Current: 140ADC
CEC Weighted Efficiency: 92.50%



Datasheets

Document Type
logo-adobe-pdf-2.jpgSimpliPhi A-4PHI-CC-SCH Specs Specifications
logo-adobe-pdf-2.jpgSimpliPhi A-4PHI-CC-SCH Installation Installation Guide
logo-adobe-pdf-2.jpgSimpliPhi Integration Guide Integration Guide
Warranty 10 Year Performance Warranty
logo-adobe-pdf-2.jpgSimpliPhi Warranty Warranty
