Silfab Solar SIL-370-HC 370w Mono Solar Panel

Image 1

Hover over image to zoom

  • Image 1
Silfab Solar
Discontinued
SKU: SIL-370-HC
Note: ***CLOSEOUT POLICY APPLIES*** --Product will not be held for more than 60 days total --No refunds, returns, or other discounts may be applied
Condition: New
Weight: 44.00 LBS
Minimum Purchase: 8 unit(s)
  • Buy 12 - 29 and get 2% off
  • Buy 30 - 49 and get 3% off
  • Buy 50 or above and get 5% off

 Product Description

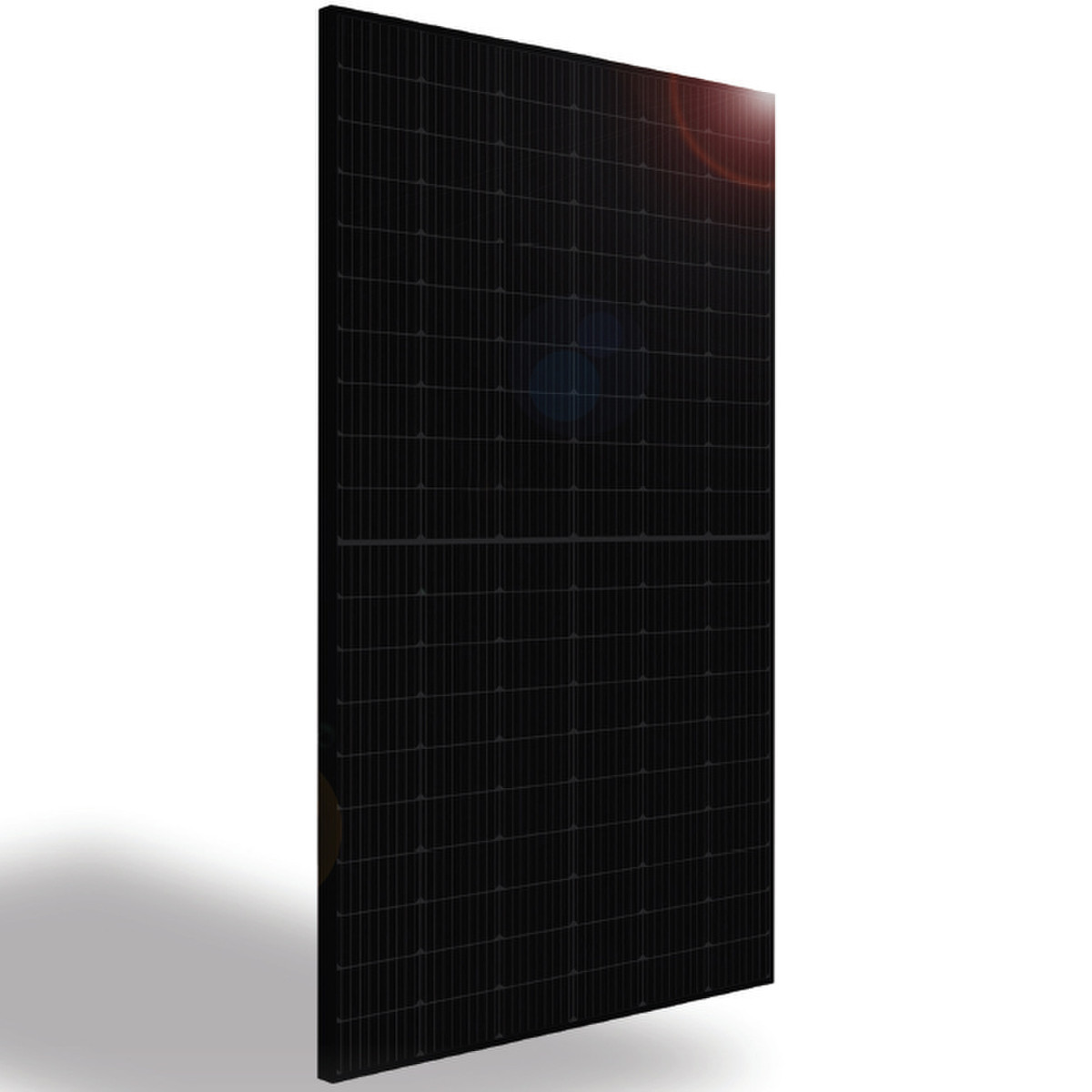

Silfab Solar 370W Mono Solar Panel - SIL-370-HC

Silfab Solar, 370w Monocrystalline Solar Panel, 1000VDC, MC4 Connectors, SIL-370-HC

Silfab 370 W module; 60 cell - mono PERC; 9 busbars; Black/black

Ideal for ground-mount, roof-top and solar tracking installations where maximum power density is preferred.

Features

  • Highlights - Hail impact resistance - 1" at 51.6 mph 3.2 mm high transmittance, tempered glass with DSM antireflective coating High durability, superior hydrolysis and UV resistance, multi-layer dielectric film, fluorine-free PV backsheet 25 year module product workmanship warranty if installer is registered at https://silfabsolar.com/silfab-extended-warranty-application/



General Information
Manufacturer: Silfab Solar
Product Line:
 SIL-HC
Model ID:
 SIL-370-HC
Certifications and Safety Ratings:



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
 69.4 x 40.8 x 1.37 inches
Weight: 44 lbs
Maximum Surface Load: 5400 Pa
Hail Impact Resistance: Ø 25mm at 83 km/h
Cells: 120 Half cells - Si Mono Perc - 9 Busbar - 83 x 166 mm
Glass: 3.2 mm High Transmittance, Tempered, DSM Anti-reflective Coating
Encapsulant: PID - Resistant EVA
Backsheet: Multi-Layer Polyester - Based
Frame: Anodized Aluminum
Junction Box: 3 Diodes - 45V/30A, IP68
Cables and Connectors: 1350 mm, ø 5.7 mm, MC4 from Staubli
Product: UL 3730 Certified, IEC 62790 Certified, IP68 rated
Factory: ISO 9001:2015
Operating Temperature: -40°C to +85°C



Electrical Data

Module Power (Pmax): 370 Wp
Maximum Power Voltage (Vpmax): 34.95 Volts
Maximum Power Current (Ipmax): 10.60 Amps
Open Circuit Voltage (Voc): 41.75 Volts
Short Circuit Current (Isc): 11.25 Amps
Module Efficiency: 20.2%
Maximum System Voltage: 1000 VDC
Series Fuse Rating: 20 Amps
Power Tolerance: -0/+10 Wp



Datasheets

Document Type
logo-adobe-pdf-2.jpgSilfab Solar SLG370M Specs Specifications
logo-adobe-pdf-2.jpgSilfab Solar SLG370M Installation Guide Installation Guide
logo-adobe-pdf-2.jpgSilfab Solar SLG370M Brochure Brochure
Warranty 12 Year Product Warranty
Performance Guarantee 25 Year Linear Power Performance
logo-adobe-pdf-2.jpgSilfab Solar SLG370M Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Silfab Solar - Silfab Solar SIL-370-HC 370w Mono Solar Panel
Price:
Condition: new



 Warranty Information

Warranty: 12 Year Product Warranty
Performance Warranty: 30 years linear 82.6% at end of 30th year
