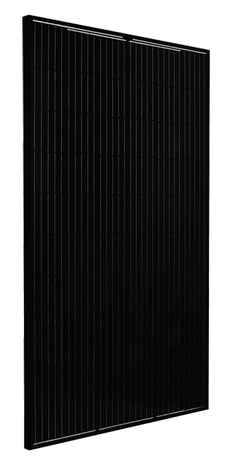

Loading... Please wait...| Silfab Solar 310W Mono Solar Panel - SIL-310 ML |
|
Silfab Solar, 310w Monocrystalline Solar Panel, 60 Cell, SIL-310 ML Silfab panels are designed and manufactured to meet Buy American Act Compliance. The US State Department, US Military and FAA have all entrusted Silfab panels in their solar installations. Engineered to accommodate low load bearing structures up to 5400Pa. The light-weight frame is exclusively designed for wide-ranging racking compatibility and durability. Total automation ensures strict quality controls during the entire manufacturing process at our ISO certified facilities. 48.18 ppm as per December 2018. Silfab is 100% North American which means our customer service is direct, efficient and local. Your solar panels can be delivered anywhere in the Continental USA within days. All black sleek design doesn’t compromise on quality. PID Resistant due to advanced cell technology and material selection. In accordance to IEC 62804-1. |
|
Features
|
| General Information | |
| Manufacturer: | Silfab Solar |
| Product Line: |
SIL ML |
| Model ID: |
SIL-310 ML |
| Certifications and Safety Ratings: |
| Mechanical Data |
|
| Technology: | Monocrystalline (Mono) |
| Dimensions: |
66.93 x 39.37 x 1.50 inches |
| Weight: | 41.89 lbs |
| Maximum Surface Load (Wind/Snow): | 4000 Pa Upward / 5400 Pa Downward |
| Hail Impact Resistance: | Ø 25mm at 83 km/h |
| Cells: | 60 - Si Monocrystalline - 4 or 5 Busbar - 156.75 x 156.75 mm |
| Glass: | 3.2 mm High Transmittance, Tempered, Anti-reflective Coating |
| Backsheet: | Multi-Layer Polyester - Basted |
| Frame: | Anodized Aluminum (Black) |
| Electrical Data |
|
| Module Power (Pmax): | 310 Wp |
| Maximum Power Voltage (Vpmax): | 33.05 Volts |
| Maximum Power Current (Ipmax): | 9.38 Amps |
| Open Circuit Voltage (Voc): | 40.25 Volts |
| Short Circuit Current (Isc): | 9.93 Amps |
| Module Efficiency: | 19% |
| Datasheets |
|
| Document | Type |
| Specifications | |
| Installation Guide |
|
| Warranty | 25 Year Product Warranty |
| Performance Guarantee | 30 Year Linear Power Performance |
| Warranty |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 25 Year Product Warranty
Performance Guarantee: 30 Year Linear Power Performance
