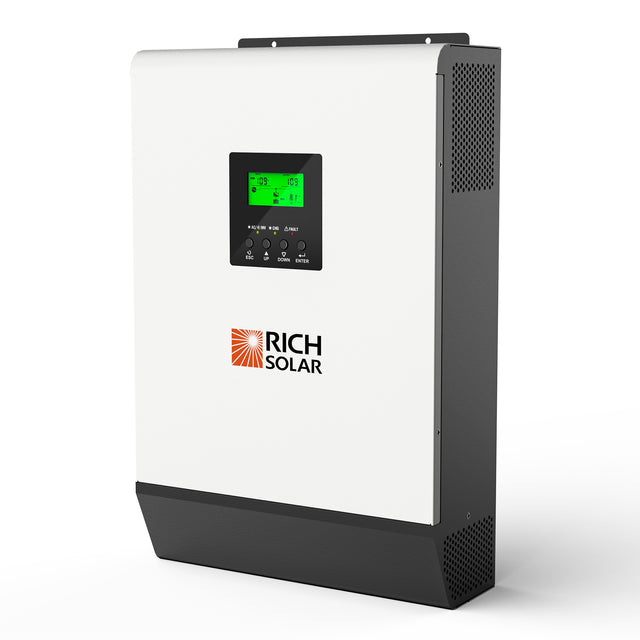

Rich Solar Hybrid Off-Grid Inverter | 2400W 24V 120A Output + 2.4kW Solar Input | 80A MPPT Charge Controller (Grid Feedback Optional)

Image 1

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
Rich Solar
MSRP: $799.99
$671.99 (You save $128.00)
SKU: RS-H2424
Condition: New
Weight: 24.25 LBS
Shipping: Free Shipping

 Product Description

Rich Solar Hybrid Off-Grid Inverter | 2400W 24V 120A Output + 2.4kW Solar Input | 80A MPPT Charge Controller (Grid Feedback Optional) - RS-H2424



Features

  • Pure sine wave output
  • Self-consumption and Feed-in to the grid
  • Programmable supply priority for PV, Battery or Grid
  • User-adjustable charging current and voltage
  • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
  • Monitoring software for real-time status display and control
  • Parallel-able up to 9 units



General Information
Manufacturer: Rich Solar
Product Line:
 Inverter
Model ID:
 RS-H2424
Certifications and Safety Ratings: ul.jpg ieee.jpg fcc.jpg csa.jpg



Specifications




Model: RS-H2424
Max.PV Array Power: 2400W
Maximum PV Array Open Circuit Voltage: 145 VDC
MPPT Range @ Operating Voltage: 30 VDC ~ 115 VDC
Number of MPP Tracker: 1

GRID OUTPUT (AC)

Nominal Output Voltage: 101/110/120 VAC
Rated Output Power: 2400W
Output Voltage Range:
89~111 VAC @ 101 VAC output
97~121 VAC @ 110 VAC output
106~132 VAC @ 120 VAC output
Output Frequency Range:
47.5~51.5Hz @ 50Hz
57.5~61.5Hz @ 60Hz
Nominal Output Current:
29.7A @ 101Vac
27.2A @ 110Vac
25.0A @ 120Vac
Power Factor: >0.99

EFFICIENCY

Maximum Conversion Efficiency (DC/AC): 85%

OFF-GRID, HYBRID OPERATION

AC Start-up Voltage / Auto Restart Voltage: 60 - 70 VAC / 90 VAC
Acceptable Input Voltage Range: 65-140 VAC or 85-140 VAC
Maximum AC Input Current: 40A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage: 101/110/120 VAC
Rated Output Power: 2400W / 3000VA
Output Waveform: Pure Sine Wave
Efficiency (DC to AC): 90%

BATTERY & CHARGER

Nominal DC Voltage: 24 VDC
Maximum Charging Current (from Grid): 60A
Maximum Charging Current (from PV): 80A
Maximum Charging Current: 140A

PHYSICAL

Dimension, D X W X H (mm): 120 x 295 x 468
Net Weight (kgs): 11

INTERFACE

Parallel-able: Yes. Single phase, Split phase, Three phase
External Safety Box (Optional): Yes
Communication: USB or RS-232/Dry contact

ENVIRONMENT

Humidity: 0 ~ 90% RH (No condensing)
Operating Temperature: 0 to 50°C





Datasheets

Document Type


 Warranty



2 Years
