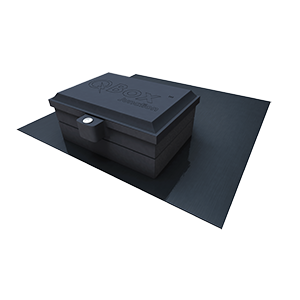

Quick Mount PV QBox QMQB-J1 B Junction Box

Hover over image to zoom

  • QMQB-J1 B
Quick Mount PV
Discontinued
SKU: SLR-510-0258
Condition: New
Weight: 1.50 LBS

 Product Description

Quick Mount Junction Box - QMQB-J1 B

QuickMount, Q-Box, Flashed Junction Box, 5.5 X 5.75” Polycarbonate Box, 12 X 12” Aluminum Flashing, For Comp Roofs, Bronze Finish, Qty. 1, QMQB-J1 B

The QBox is a flashed junction box with Quick Mount PV patented Elevated Water Seal Technology, and provides a waterproof pass-through for conduit from the box enclosure to the attic. Each QBox comes with stainless steel hardware: fasteners, fittings and wire nuts. The QBox provides a waterproof pass-through to the attic as well as waterproof wire nuts to either transition or combine two strings of conductors. The box is made of non-conductive polymer, the factory installed flashing is aluminum. Use the QBox to ensure every single junction point or pass through on the roof meets or exceeds industry best practices and is 100%IBC compliant.

Features

  • Highlights - 12"x12" anodized aluminum flashing with patented Elevated Water Seal Technology®. 5.5" x 5.75" enclosure is made of non-conductive material, eliminating need to ground box or its door. Waterproof pass-through for conduit from QBox enclosure to the attic. Made from durable and weather resistant polycarbonate. Drill starter around enclosure ensures perfect hole location for conduit attachment. Can be used to transition a single string, two parallel strings, or two combined strings. 5-year limited product warranty.



General Information
Manufacturer: Quick Mount PV
Product Line:
QBox
Model ID:
QMQB-J1 B
Certifications and Safety Ratings:  ul.jpg



Mechanical Data

Technology: Junction Box
Dimensions:
12 x 12 x 4 inches
Weight: 1.50 lbs
Material: Polycarbonate



Datasheets

Document Type
logo-adobe-pdf-2.jpgQuick Mount PV QMQB-J1 B Installation Guide Installation Guide
Warranty 5 Year Limited Product Warranty
logo-adobe-pdf-2.jpgQuick Mount PV 5-Year Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Save


Quick Mount PV - Quick Mount PV QBox QMQB-J1 B Junction Box
Price:
Condition: new



 Warranty Information

Warranty: 25 Year Limited Product Warranty
