Peimar 270w Poly Solar Panel - S-Green Line SG270P |
Peimar, 270W PV Module, MC4 compatible, PV Wire, 40mm Black Frame, BOW, 60 Cell Poly, 15A Fuse, 3 or 4 BB, 1000VDC, 245.0W PTC, Qty. 1, SG270P The PEIMAR SG270P polycrystalline solar panels are a perfect combination of high-efficiency and versatility. Flexible, unbreakable and solid, our panels are ideal for commercial and residential applications, as well as for large solar systems. Thanks to the use of high-quality solar cells, our panels achieve outstanding performances and ensure the maximum production output even under bad lighting conditions. Last but not least, the light-weight and simultaneously robust frame make it easy to install the panels, while adding to its strength. |
Features
|
General Information | |
Manufacturer: | Peimar |
Product Line: |
EU S-Green Line |
Model ID: |
SG270P |
Certifications and Safety Ratings: | ![]() ![]() ![]() |
Mechanical Data |
|
Technology: | Polycrystalline (Poly) |
Dimensions: |

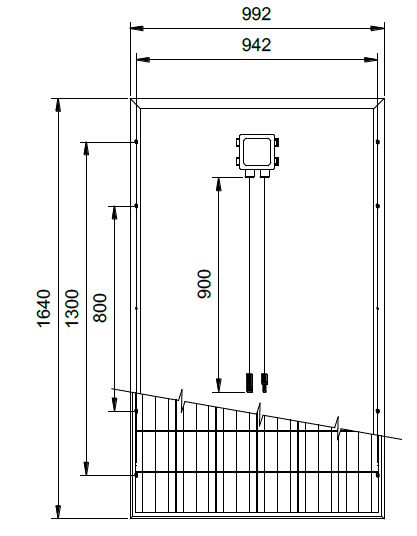

64.57 x 39.05 x 1.57 inches (SG270P Dimensions) |
Weight: | 39.68 lbs |
Front Glass: | 3.2 mm, Low Iron Tempered Glass |
Cells: | 60(6x10) poly - 156x156 mm - 3 or 4 BB |
Frame: | Anodized Aluminium Alloy, Double Wall (Silver) |
Back Sheet: | TPT (Tedlar-PET-Tedlar) (White) |
Encapsulant: | EVA (Ethylene Vinyl Acetate) |
Diodes: | 3 Bypass Diodes Serviceable |
Module Connector: | MC4 or Compatible Connector |
Junction Box: | IP65 Rated |
Output Cables: |
Length: 900 mm / Section: 4.0 mm² |
Max Load: | Certified to 5400 Pa |
Electrical Data |
|
Nominal Maximum Power (Pmax): | 270 Watts |
Flash Test Power Classification: | 0 / +5 Wp |
Open Circuit Voltage (Voc): | 37.20 Volts |
Voltage at Pmax (Vmp): | 30.80 Volts |
Short Circuit Current (Isc): | 9.82 Amps |
Current at Pmax (Imp): | 8.77 Amps |
Maximum Series Fuse Rating: | 15 Amps |
Operating Temperature: | -40°C + 85°C |
Module Efficiency: | 16.60% |
Cell Efficiency: | 18.49% |
Maximum System Voltage: | 1000V |
Datasheets |
|
Document | Type |
![]() |
Specifications |
![]() |
Installation Guide |
Warranty | 12 Year Product Warranty |
Performance Guarantee | 30 Year Linear Power Warranty (80%) |
![]() |
Warranty |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 12 Year Product Warranty
Performance Guarantee: 30 Year Linear Power Warranty (80%)
