Morningstar TriStar Meter TS-M-2 Display

Hover over image to zoom

  • TS-M-2
  • TriStar TS-M-2
Morningstar Corporation
MSRP: $195.95
$132.65 (You save $63.30)
SKU: SLR-520-0098
Condition: New
Weight: 0.85 LBS
Shipping: Calculated at checkout

 Product Description

Morningstar TriStar Remote Meter - TS-M-2

Morningstar, TriStar LCD Digital Meter Display, Mounts into TS and TS-MPPT Controller Front Plate, TS-M-2

Morningstar’s TriStar Meter-2 (TS-M-2) and TriStar Remote Meter-2 (TS-RM-2) are advanced digital meters that may be used with any TriStar™ solar controller. These two meters are identical except that the TS-M-2 is mounted on the controller and the TS-RM-2 is flush mounted up to 30 meters (98.4 feet) away from the controller.

The TriStar meters are 2 x 16 character LCD’s that display extensive system and controller information, logged data, bar graph metering as well as alarms and faults for easy troubleshooting. The information may be shown in English, French, German, Portuguese or Spanish languages.

In multi-controller systems the TS-M-2 and TS-RM-2 are networkable using Morningstar’s MeterHub to allow individual controller data and aggregate system data to be displayed together on a single meter.


  • Easy to Install - Uses standard 6 conductor RJ-11 connectors. TS-RM-2 fits a “double gang” electrical box and includes 30 meters (98.4 feet) of cable. Both data and meterbus power flow over a single cable. Network supports up to 15 devices and, optionally, more than one meter per system.
  • Easy to Use - Four directional pushbuttons for easy navigation of display screens. Backlighting to enhance readability. Meter may be added during initial controller installation, added as an upgrade anytime in the future or connected temporarily for troubleshooting and then using this same meter at other sites.
  • Networking Capability - Displays individual controller data from up to 14 TriStars with optional Morningstar Meterhubs. Aggregates system data to show total charge, load and battery charge/discharge state. Auto detects any device found on the network.


General Information
Manufacturer: Morningstar
Product Line:
TriStar Meter-2
Model ID:
Certifications and Safety Ratings: ce.gif ul.jpg fcc.jpg


Mechanical Data
Technology: Meter

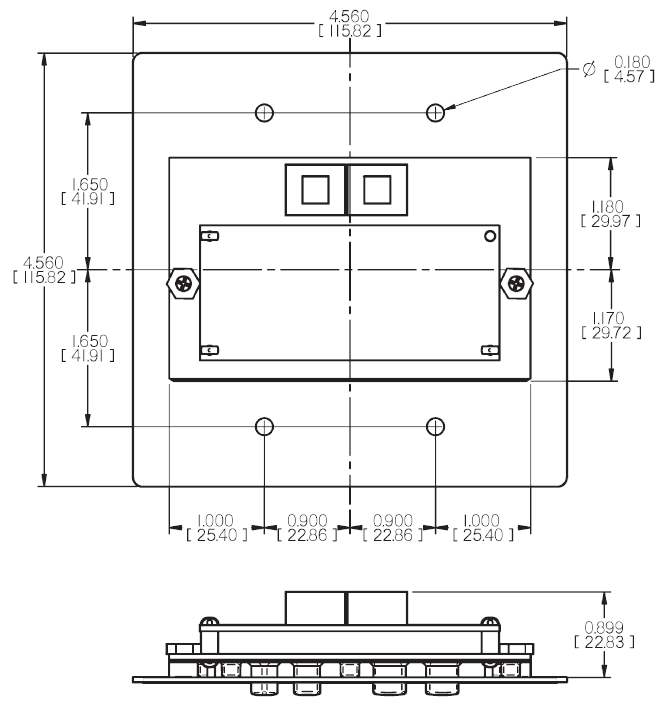

4.56 x 4.56 x 0.90 inches (TS-M-2 Dimensions)
Weight: 0.50 lbs
Casing: Powder Coated Steel (White)
Display: LCD Digital Display
Connector Type:
RJ-11 (6-Pin)
Cable Size: 5 Inches - 6 Conductor
Cable Temperature: 60°C Rating


Electrical Data
Compatibility: TS-M-2 with TriStar & TriStar MPPT
Self-Consumption: 7.50 Milliamps (42.50 mA Backlight On)
Ambient Operating Temperature: -40°C to +60°C
LCD Temperature Rating:
-20°C to +70°C
Storage Temperature Range:
-55°C to +85°C
Humidity Tolerance:
5 to 95% (NC)
Tropicalization: Conformal Coating on Both Sides of Circuit Board


Document Type
logo-adobe-pdf-2.jpgMorningstar TriStar TS-M-2 Specifications Specifications
logo-adobe-pdf-2.jpgMorningstar TriStar TS-M-2 Manual Users Manual
logo-adobe-pdf-2.jpgMorningstar TriStar TS-M-2 Communications
Communications Guide
Warranty 5 Year Material & Workmanship Warranty
logo-adobe-pdf-2.jpgMorningstar TriStar TS-M-2 Warranty Warranty


Terms & Conditions
Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Morningstar Corporation - Morningstar TriStar Meter TS-M-2 Display
Price: 132.65
Condition: new


 Warranty Information

Warranty: 5 Year Material & Workmanship Warranty
