Morningstar SunLight SL-20L-12V PWM Charge Controller

Hover over image to zoom

  • SL-20L-12V
  • SunLight SL-20L-12V
Morningstar Corporation
MSRP: $178.00
$127.00 (You save $51.00)
SKU: SLR-520-0036
Condition: New
Weight: 0.56 LBS
Shipping: Calculated at checkout

 Product Description

Morningstar SUNLight 20A PWM Charge Controller - SL-20L-12V

Morningstar, PWM Charge/Lighting Controller, 20A, 12VDC, #10 AWG, LED Indicators, SL-20L-12V

Morningstar’s advanced SunLight SL-20L-12V solar lighting controller combines the SunSaver design with a microcontroller for automatic lighting control functions. The SunLight series technology provides: proven reliability, precise lighting control and PWM battery charging. Four versions are available: 12 Volt 10 Amp ratings, 12 Volt 20 Amp ratings, 24 Volt 10 Amp ratings, and 24 Volt 20 Amp ratings.

Morningstar's SunLight charge controllers have a variety of individual lighting control features, which; determine day and night with ten different preset lighting control options, measuring the length of the night (which is calculated by taking a moving four night average, and adjusts for seasonal changes). The SunLight's controller series carries an expected fifteen year life span, they are easy to use, and have high efficiency with a low self-consumption. The SunLight-20 parallels with the SunSaver for 40 Amps solar, and includes a SunSaver battery charging circuit.

Features

  • Smart & Accurate - Detects day and night using the PV array. Temperature compensation. Microcontroller digital accuracy. Fully automatic operation.
  • Adjustable & Adaptable - Ten field adjustable lighting control options. Special on/off/on functions. Manual test capability.Sealed/Flooded battery select. Suitable for all 12/24 Vdc lamps.
  • Safe & Certified - Epoxy encapsulated. Marine rated terminals. Anodized aluminum case. CE certified.LVD override protection.



General Information
Manufacturer: Morningstar
Product Line:
SunLight-20
Model ID:
SL-20L-12V
Certifications and Safety Ratings: ce.gif



Mechanical Data

Technology: Pulse Width Modulation (PWM)
Dimensions:
6.60 x 2.18 x 1.32 inches (SL-20L-12V Dimensions)
Weight: 0.56 lbs
Casing: Anodized Aluminum (Black)
Display: LED Indicator Lights
Parallel:
40 Amps Solar (With SunSaver)
Battery Select:
Sealed/Flooded
Wire Size: #10 AWG (5.2 mm²)
Encapsulation: Epoxy Encapsulated
Terminals: Marine Rated



Electrical Data

System Voltage: 12 Volts
Rated Solar/Load Input:
10/20 Amps
Temperature Compensation (mV/°C): -27mV/°C
Self-Consumption: 8mA
Operating Temperature: -40°C to +85°C
Regulation Voltage:
Sealed: 14.10V, Flooded: 28.20V
LVD Reconnect: 12.80 Volts
Load Disconnect:
11.70 Volts



Datasheets

Document Type
logo-adobe-pdf-2.jpgMorningstar SunLight SL-20L-12V Specifications Specifications
logo-adobe-pdf-2.jpgMorningstar SunLight SL-20L-12V Manual Users Manual

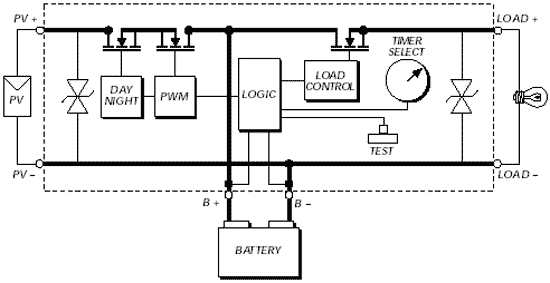

logo-adobe-pdf-2.jpgMorningstar SunLight SL-20L-12V Electrical Diagram
Electrical Diagram
logo-adobe-pdf-2.jpgMorningstar TrackStar Technology
Technology Overview
logo-adobe-pdf-2.jpgMorningstar ProStar Testing Instructions Testing Instructions
Warranty 5 Year Material & Workmanship Warranty
logo-adobe-pdf-2.jpgMorningstar SunLight SL-20L-12V Warranty Warranty
