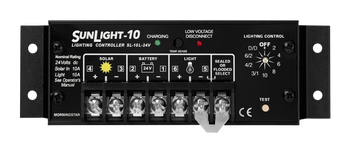

Morningstar SunLight SL-10L-24V PWM Charge Controller
Hover over image to zoom
Morningstar Corporation
Product Description
| Morningstar SunLight 10A PWM Charge Controller - SL-10L-24V |
|
Morningstar, PWM Charge/Lighting Controller, 10A, 24VDC, #10 AWG, LED Indicators, SL-10L-24V Morningstar’s advanced SunLight SL-10L-24V solar lighting controller combines the SunSaver design with a microcontroller for automatic lighting control functions. The SunLight series technology provides: proven reliability, precise lighting control and PWM battery charging. Four versions are available: 12 Volt 10 Amp ratings, 12 Volt 20 Amp ratings, 24 Volt 10 Amp ratings, and 24 Volt 20 Amp ratings. Morningstar's SunLight charge controllers have a variety of individual lighting control features, which; determine day and night with ten different preset lighting control options, measuring the length of the night (which is calculated by taking a moving four night average, and adjusts for seasonal changes). The SunLight's controller series carries an expected fifteen year life span, they are easy to use, and have high efficiency with a low self-consumption. The SunLight-10 parallels with the SunSaver for 40 Amps solar, and includes a SunSaver battery charging circuit. |
|
Features
|
| General Information | |
| Manufacturer: | Morningstar |
| Product Line: |
SunLight-10 |
| Model ID: |
SL-10L-24V |
| Certifications and Safety Ratings: |  |
| Mechanical Data |
|
| Technology: | Pulse Width Modulation (PWM) |
| Dimensions: |
6.60 x 2.18 x 1.32 inches (SL-10L-24V Dimensions) |
| Weight: | 0.56 lbs |
| Casing: | Anodized Aluminum (Black) |
| Display: | LED Indicator Lights |
| Parallel: |
40 Amps Solar (With SunSaver) |
| Battery Select: |
Sealed/Flooded |
| Wire Size: | #10 AWG (5.2 mm²) |
| Encapsulation: | Epoxy Encapsulated |
| Terminals: | Marine Rated |
| Electrical Data |
|
| System Voltage: | 24 Volts |
| Rated Solar/Load Input: |
10 Amps |
| Temperature Compensation (mV/°C): | -54mV/°C |
| Self-Consumption: | 9mA |
| Operating Temperature: | -40°C to +85°C |
| Regulation Voltage: |
Sealed: 28.20V, Flooded: 28.80V |
| LVD Reconnect: | 25.60 Volts |
| Load Disconnect: |
23.40 Volts |
| Datasheets |
|
| Document | Type |
 Morningstar SunLight SL-10L-24V Specifications |
Specifications |
| Morningstar SunLight SL-10L-24V Manual |
Users Manual |
| Morningstar SunLight SL-10L-24V Electrical Diagram |
Electrical Diagram |
| Morningstar TrackStar Technology |
Technology Overview |
| Morningstar ProStar Testing Instructions |
Testing Instructions |
| Warranty | 5 Year Material & Workmanship Warranty |
| Morningstar SunLight SL-10L-24V Warranty |
Warranty |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Morningstar Corporation - Morningstar SunLight SL-10L-24V PWM Charge Controller
Condition: new
Warranty Information
Warranty: 5 Year Material & Workmanship Warranty
