MidNite Solar MNKID-B The Kid MPPT Charge Controller

Hover over image to zoom

  • MNKID-B
  • MNKID-B Complete Kit
MidNite Solar
MSRP: $563.00
$337.10 (You save $225.90)
SKU: ALG-020-02400
Note: 1-2 Week Lead Time
Condition: New
Weight: 6.00 LBS
Shipping: Calculated at checkout

 Product Description

MidNite Solar 12V 150VDC MPPT Charge Controller - MNKID-B

The KID MPPT Charge Controller, 150VDC, 30A, 12-48V Battery, with LCD & Wall Mount Bracket, Black

The MidNite KID 30 A MPPT charge controllers are suitable for small to medium-sized renewable energy systems. The KID works with 12, 24, 36, and 48 VDC battery systems and has a 150 VDC operating limit; but is not damaged with DC voltages as high as 162 VDC, due to MidNite’s HyperVOC circuitry. The KID has a three-LED bar graph, showing battery-charge status, and a keypad to access extensive menu items and set-points.The MidNite KID 30 A MPPT charge controllers are suitable for small to medium-sized renewable energy systems. The KID works with 12, 24, 36, and 48 VDC battery systems and has a 150 VDC operating limit; but is not damaged with DC voltages as high as 162 VDC, due to MidNite’s HyperVOC circuitry. The KID has a three-LED bar graph, showing battery-charge status, and a keypad to access extensive menu items and set-points.

The KID controllers include a load control with load low-voltage disconnect (LVD). This can also be programmed as a lighting controller with dusk-to-dawn or various other on and off times. There is also a programmable AUX relay.

Sealed electronics and passive cooling (no fans) make it ideal for use in harsh environments. There are front-panel breakers for input, battery, and load. The controller’s operating temperature range is -40 ºC to +50 ºC but the controller will automatically de-rate at temperatures above 25 ºC. Add the battery-temperature sensor (BTS) to these models.

ETL Listed to UL1741 and UL458 for the U.S.A. and Canada. CE Certified. FCC Class B compliant. Dimensions are 9.25”L x 5”H (6.6”H with wall-mount adapter) x 3.4”D. NEMA 1 (IP64) indoor rating. Available in either white or black casing. Made in U.S.A. and has a 2-year warranty.

The MNKID-M Marine version comes standard with the MNKID-M-BKT Boat Mounting Bracket, flexible conduit, battery-temperature sensor and extra conformal coating.

Check out MidNite Solar's MNKID Sizing Tool here.

*The MNKID comes in both black and white colored casing models. Also check out The MNKID-ASSY-KIT-B Accessory Kit for additional mounting solutions.

Features

  • Modern Technology & Value - The KID includes MPPT tracking technology. True paralleling - inputs and outputs for two KID's. Up to 150V input. MidNite's exclusive HyperVOC extends the input voltage beyond 150 VOC for cold climates.
  • Versitile & Customizable - 12V, 24v, 36V, 48V battery output. Lighting Controller:  dusk-dawn, hourly, day, night settings. Up to 30 amps battery output with low input voltage based off of PV configuration. Stays quiet with no fan needed. Includes wall mount adapter.
  • Safe & Reliable - Reverse polarity protectedSealed for harsh environments. The KID is certified to UL1741, UL458, and CSA.



General Information
Manufacturer: MidNite Solar
Product Line:
KID
Model ID:
MNKID-B
Manufactured In: United States of America
Certifications and Safety Ratings: ul.jpg csa.jpg made-in-america.png



Mechanical Data

Technology: Maximum Power Point Tracking (MPPT)
Dimensions:

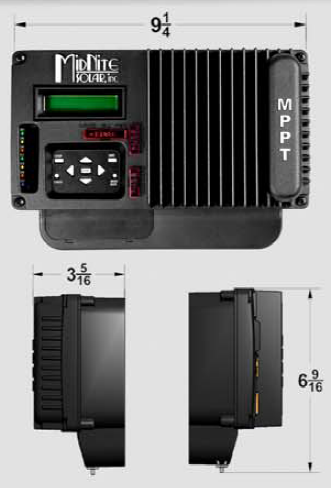

9.25 x 5.00 x 5.31 inches (MNKID-B Dimensions)
Weight: 6.00 lbs
Casing: (Black)
Display: LCD (Plus Status LED's)
Programmable Auxiliary Control Output:
Auxiliary Control Output (1 I/O Communication Port)
Communications: RS232 Openly Published Protocols & USB
Network Cables:
Standard 4 Conductor Phone Cable
Environmental Rating: Indoor IP52 Type 1 (IP53 with Drip Shield)
Battery Types: Flooded, AGM, Gel, Calcium SMF, Lithium BMS, & Custom
Lighting Controller: Customizable Via Keypad (Dawn, Daylight, Dusk & Night)



Electrical Data

Nominal Battery Voltage: 12V - 48 Volts
Maximum Output Current: 30 Amps
PV Open Circuit Voltage (Voc): 150V + HyperVOC
Maximum Voc: 162 Volts
Operating Input Voltage: 150 VDC
Battery Voltage Range: 9V - 64 Volts
Charging Regulation: Bulk, Absorb, Float & Equalization
Equalization Charging:
Adjustable Voltage & Duration
Battery Temperature Compensation:
Automatic with BTS Installed, Adjustable mV per °C per 2V Cell
Operating Temperature: -40°C + 50°C (Controller Auto Derate above + 25°C)
Load Terminal:
30A Configurable
True Paralleling:
Inputs & Outputs Between 2 Units with Smart Active Current Sharing
Conduit Knock Outs:
2
HyperVOC: Extended VOC Range for Colder Climates & Weather Conditions
Auto Gen-Start: Yes



Datasheets

Document Type
logo-adobe-pdf-2.jpgMidNite Solar KID MNKID-B Specs Specifications
logo-adobe-pdf-2.jpgMidNite Solar KID MNKID-B Installation Guide Installation Guide
logo-adobe-pdf-2.jpgMidNite Solar KID MNKID-B Dimensions
Dimensional Diagram
logo-adobe-pdf-2.jpgMidNite Solar KID MNKID-B Certifications
Certifications
Warranty 2 Year Standard Warranty
logo-adobe-pdf-2.jpgMidNite Solar KID MNKID-B Warranty Warranty
