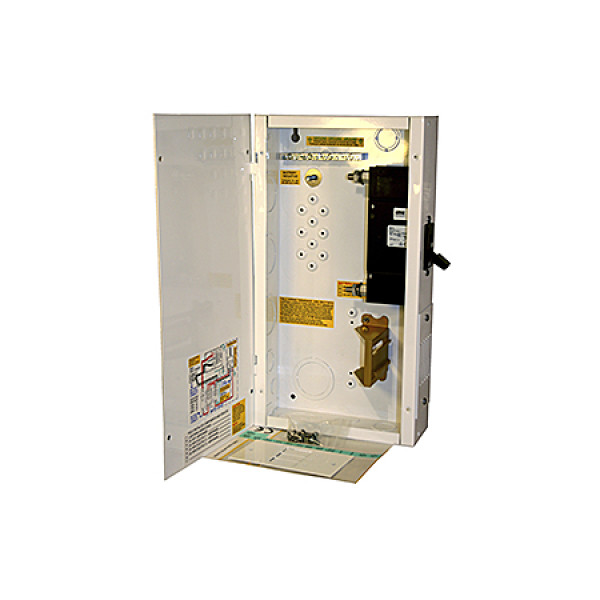

MidNite Solar MNDC175-L Load Center

Hover over image to zoom

  • MNDC175-L
MidNite Solar
Unavailable
SKU: ALG-053-00095
Note: 2-3 Week Lead Time
Condition: New
Weight: 7.00 LBS

 Product Description

Midnite 175A Left Hand Main Breaker Load Center - MNdc175-l

Midnite Solar, 175A Breaker, Left Hand Main Breaker Load Center, MNDC175-L

White powder coated aluminum chassis with 175A/125VDC breaker and 5 dinrail breaker slots or 3 panel mount breaker slots. Left hand main breaker.

Use this small DC disconnect, which includes the inverter breaker (not in the MNDC-C), to provide overcurrent protection for any single inverter. The MNDC comes with a DIN rail for five additional DC breakers for DC loads, a charge controller disconnect, and a battery-status monitor. They also include a ground bus, and a 5/16" bonding battery-negative stud. Mounting holes for a 500 A shunt are built in. The white powder-coated aluminum chassis measures 10"H x 5"W x 18"D and weighs 7 lbs. Three main-breaker sizes are available. Left-side main-breaker placement is available by special order.

The MNDC Plus version has an additional DIN rail allowing up to ten DIN-mount breakers. Two DIN rail cover plates and two panel-mount plates are included. The panel-mount plates allow for mounting the 3/4" 150 VDC breakers that range from 60 A to 100 A. Additional configurations include: an MNDCGFP80 with four panel-mount breakers, or one MNDC-GFP, one 3/4" panel-mount breaker and five DIN-mount breakers with a 125-250 A inverter breaker. Circuit breakers and DC GFP are sold separately. Mounting is provided for a 500 A shunt and an MNTBB-R terminal busbar. Battery-negative stud and ground busbar included.

The MNDC-C comes with an adapter attached to mount one of the smaller single-pole panel mount breakers, available in sizes from 1 A to 100 A (3/4 inch MNEDC panel mount breaker not included). Chassis is white powder coated aluminum with 5 DIN rail breaker slots or 3 panel mount breaker slots.

The MNDC175-L is a white powder coated aluminum chassis with 175A/125VDC breaker and 5 din rail breaker slots or 3 panel mount breaker slots. The 175 A breaker is located on the left side of the enclosure.

The MINI DC X2 versions have two DC battery breakers, one on each side of the enclosure. The MINI DC 125 X2 Disconnect is a white powder-coated aluminum enclosure while the MINI DC 175 X2 and the 250 X2 are powder-coated gray steel. They all come with the 125, 175 or 250 A battery breakers. The MNDC X2 accepts an additional five din-rail breakers or three panel-mount breakers. The boxes all come with grounding busbars and space to mount a 500 A shunt.

The MNDC125-X2 measures 25"H x 11"W x 4"D and weighs 13 lbs.

The MNDC175-X2 and the MNDC250-X2 measure 25"H x 16"W x 4"D and weigh 29 lbs.

Features

  • Highlights - Easy installation and high compatibility.



General Information
Manufacturer: Midnite Solar
Product Line:
MN Series
Model ID:
MNDC175-L
Certifications and Safety Ratings: etl.jpg



Mechanical Data

Technology: Load Center
Dimensions:
17.00 x 9.00 x 4.00 inches
Weight: 7.00 lbs
Maximum Wire (Main Lug): 4/0 AWG
Number of Spaces: 5
NEMA Rating: NEMA 1 (Indoor)
