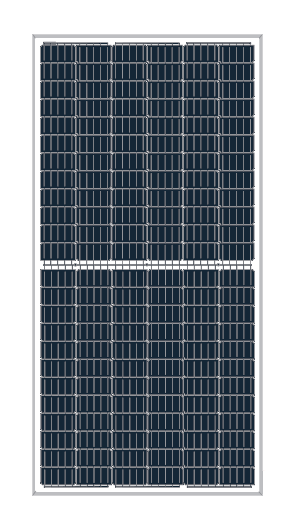

Longi Solar LR6-72HPH-380M 380w Mono Solar Panel

Hover over image to zoom

  • LR6-72HPH-380M
Longi Solar
MSRP: $395.00
$191.00 (You save $204.00)
SKU: LR6-72HPH-380M
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 50.71 LBS

 Product Description

Longi Solar 360w Mono Solar Panel - LR6-72HPH-380M

Longi Solar, 380w Mono Solar Panel, Silver Frame, White Backsheet, MC4, 144 Half Cut Cells (72 Cell Equivalent), LR6-72HPH-380M

The LONGi HPH Series combines High Efficiency, Low LID Mono PERC cells with Half-cut Technology to improve performance and boost production. This module series has a max system voltage of 1500V and a UL Type 4 Fire Rating. 35mm frames reduce weight while still providing the strength and resilience needed to rate 5400Pa for front side static loading and 2400Pa for rear side static loading.

Features

  • Highlights - Positive power tolerance (0~+5W) guaranteed. High module conversion efficiency (up to 19.3%). Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25. Solid PID resistance ensured by solar cell process optimization and careful module BOM selection. Reduced sensitive loss with lower operating current. Higher energy yield with lower operating temperature. Reduced hot spot risk with optimized electrical design and lower operating current.



General Information
Manufacturer: Longi Solar
Product Line:
LR6-72HPH
Model ID:
LR6-72HPH-380M
Certifications and Safety Ratings: tuv-sud.jpg  csa.jpg  ce.gif



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
78.90 x 39.21 x 1.38 inches
Weight: 50.71 lbs
Cell Orientation: 144 (6x24)
Junction Box: IP67, Three Diodes
Output Cable: 4mm², 3000mm in Length
Connector: MC4
Glass: Single Glass
Frame: Anodized Aluminum Alloy Frame



Electrical Data

Maximum Power (Pmax/W): 380 Watts
Open Circuit Voltage (Voc/V): 49 Volts
Short Circuit Current (Isc/A): 9.96 Amps
Voltage at Maximum Power (Vmp/V): 40.6 Volts
Current Maximum Power (Imp/A): 9.36 Amps
Module Efficiency: 19%



Datasheets

Document Type
logo-adobe-pdf-2.jpgLongi Solar LR6-72HPH-380M Specifications Specifications
logo-adobe-pdf-2.jpgLongi Solar Manual
Manual
Warranty 10 Year Materials and Processing Warranty
Performance Guarantee 25 Year Extra Linear Power Output Warranty
logo-adobe-pdf-2.jpgLongi Solar Warranty Warranty
