Longi Solar LR4-60HPH-360M 360w Mono Solar Panel

Hover over image to zoom

  • LR4-60HPH-360M
Longi Solar
MSRP: $265.95
$197.00 (You save $68.95)
SKU: LR4-60HPH-360M
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 37.04 LBS

 Product Description

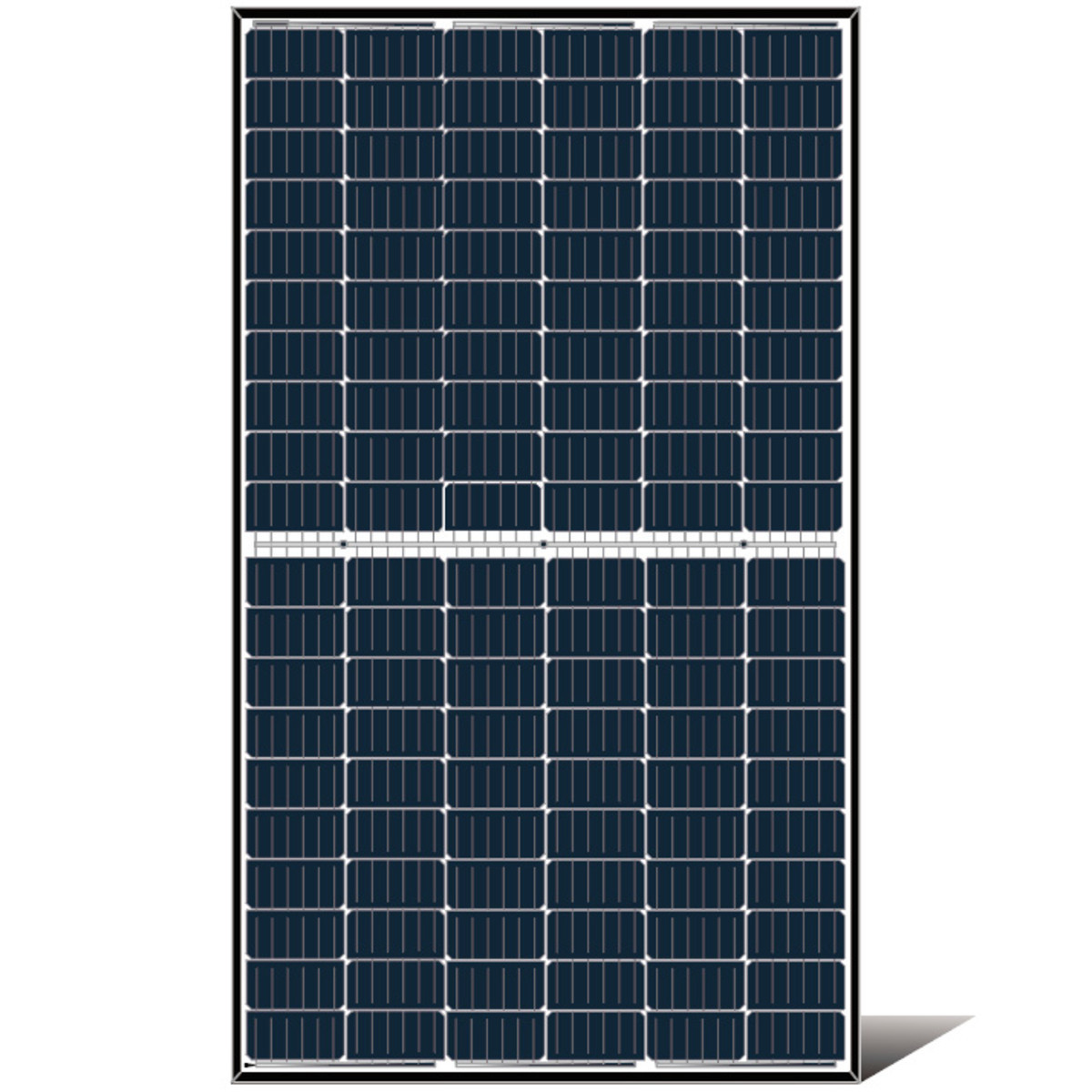

Longi Solar 360w Mono Solar Panel - LR4-60HPH-360M

LONGi, 360w Mono PERC w 120 Half-cut Cells (60 cell equivalent), Black frame, white backsheet and MC4 connectors w/ 1200mm cable, LR4-60HPH-360M

Less components and lower cost. Excellent performance under the IEC and UL Standard for 1500V system voltage brings lower system side cost.

Excellent PID-resistant performance. Passed more strict PID test with 85% RH, 85°C temperature, 1500 voltage.

Features

  • Performance - Positive power tolerance 0~+5W positive tolerance of maximal power guaranteed. High conversion efficiency, highest up to 18.8%. Excellent performance in low irradiance. Outstanding power output in low irradiance conditions, such as dawn, dusk and cloudy days.
  • Anti-PID - Anti-PID techniques of processing solar cells and encapsulating modules applied; adaptable for the installation in hot and highly humid areas.
  • Adaptable - Excellent anti salt mist and anti-ammonia capability and is adaptable to the harsh environments, such as seaside farms. Super robust resistance and able to bear 2400 Pa wind load and 5400 Pa snow load.



General Information
Manufacturer: Longi Solar
Product Line:
LR4-60HPH
Model ID:
LR4-60HPH-360M
Certifications and Safety Ratings: tuv-sud.jpg  csa.jpg  ce.gif



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
69.09 x 40.87 x 1.38 inches
Weight: 37.04 lbs
Cell Orientation: 120 Half Cells (6x20) - 60 Cell Module
Junction Box: IP68, Three Diodes
Output Cable: 4mm², 300mm in Length
Frame: Anodized Aluminum Alloy Frame (Black)
Maximum Series Fuse Rating: 20A



Electrical Data

Maximum Power (Pmax/W): 360 Watts
Open Circuit Voltage (Voc/V): 40.5 Volts
Short Circuit Current (Isc/A): 11.35 Amps
Voltage at Maximum Power (Vmp/V): 34 Volts
Current Maximum Power (Imp/A): 10.59 Amps
Module Efficiency: 19.8%



Datasheets

Document Type
logo-adobe-pdf-2.jpgLongi Solar LR4-60HPH-360M Specifications Specifications
logo-adobe-pdf-2.jpgLongi Solar Manual
Manual
Warranty 10 Year Materials and Processing Warranty
Performance Guarantee 25 Year Extra Linear Power Output Warranty
logo-adobe-pdf-2.jpgLongi Solar Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Longi Solar - Longi Solar LR4-60HPH-360M 360w Mono Solar Panel
Price: 197
Condition: new



 Warranty Information

Warranty: 10 Year Materials and Processing Warranty
Performance Guarantee: 25 Year Extra Linear Power Output Warranty
