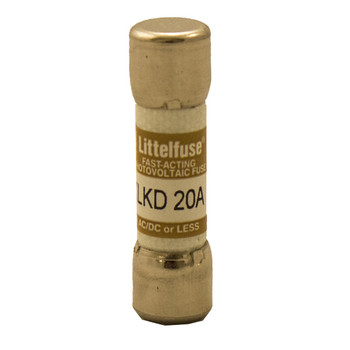

Littelfuse KLKD-20 20 Amp Midget Fuse

Hover over image to zoom

  • KLKD-20
Littelfuse
MSRP: $15.00
$5.65 (You save $9.35)
SKU: ALG-053-03042
Note: 4-6 Week Lead Time
Condition: New
Weight: 0.17 LBS
Shipping: Calculated at checkout

 Product Description

Littelfuse Midget Fuse - KLKD-20

Littelfuse, 10 x 38 20 Amp 600VDC, Midget Fuse, KLKD-20

The KLKD fuse series is fast-acting with a high DC voltage rating. This family of Midget style fuses (10 x 38 mm) is used in solar combiner boxes and in circuits with DC fault currents up to 50,000 amperes. KLKD fuses are available in standard and board-mount configurations.

In addition, the KLKD series has been designed to meet both the UL and IEC photovoltaic fuse standards. Littelfuse offers a wide range of ampere ratings to match specific requirements in a variety of applications.

Features

  • Highlights - Designed to UL and IEC photovoltaic specifications. 1/10 - 30A ratings available. 50,000 A Interrupting Rating. Available in ferrule or PCB mount options. 1-5 A meets UL1741 GFDI requirements. Applications" Combiner Boxes and Inverters, Power Supplies, and Desktop Meters.



General Information
Manufacturer: Littelfuse
Product Line:
Littelfuse Accessory
Model ID:
KLKD-20
Certifications and Safety Ratings: ul.jpg vde.jpg csa.jpg



Mechanical Data

Technology: Midget Fuse
Dimensions:
1.50 x 0.41 x 0.41 inches (KLKD-20 Dimensions)
Weight: 0.02 lbs
Voltage Rating: 600 VAC/VDC
Amperage Rating: 1/10, 1/8, 2/10, 1/4, 3/10, 1/2, 3/4, 1, 1 1/2, 2, 2 1/2, 3, 3 1/2, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25, 30
AC Interrupting Ratings: 100 kA, 200 kA Littelfuse Self-Certified
DC Interrupting Ratings: 1/10-30: 10 kA (UL 2579), 1/10-30: 50 kA (UL 248-14)
Material: Body: Melamine; Caps: Copper Alloy
Operating Temperature: See Rerating Curve
Approvals: UL 279 Listed (File: E339112), IEC 60269-6 (2-25 A), VDE Certified (No. 40033094), UL 248-14 Listed (File: E10480), CSA Certfied Ferrule Only (File: LR29862)
Environmental: RoHS Compliant
Country of Origin: Mexico



Datasheets

Document Type
logo-adobe-pdf-2.jpgLittelfuse KLKD-20 Specifications Specifications
logo-adobe-pdf-2.jpgLittelfuse KLKD-20 Installation Guide
Installation Guide
Warranty
See Download for Details
logo-adobe-pdf-2.jpgLittelfuse KLKD-20 Warranty
Warranty
