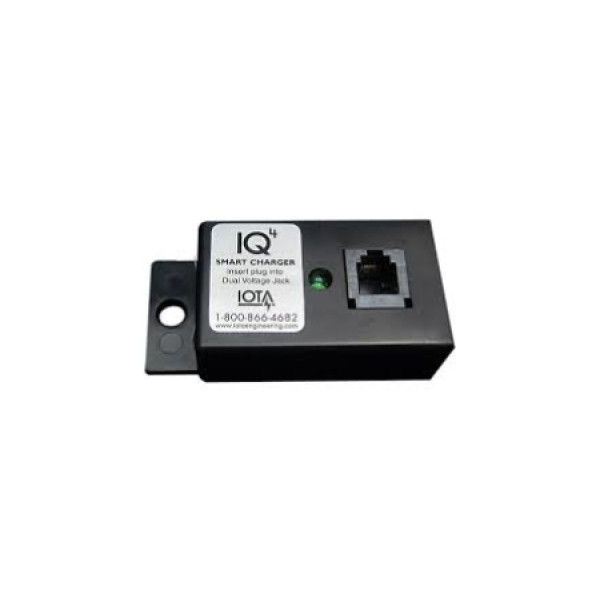

IOTA IQ4-54VDC Smart Charge Controller

IOTA, 4-Stage Battery Smart Charge Controller, IQ4-54VDC

The IQ4 Smart Charge Controller provides intelligent automatic 4-stage charging control for your IOTA DLS Series Battery Charger, keeping batteries fully charged and operating for long life. IQ4 Smart Charge Controllers are available for any DLS Series Battery Charger model and are backed by IOTA’s Two-Year Warranty. For 4-Stage Charging, either the external IQ4 pendant or a DLS Series charger with built-in IQ4 technology can be used.

The IQ4 Smart Charge Controller allows the DLS Series Battery Charger to operate as an automatic “smart charger,” delivering the charge the battery needs at the time it needs it. The IQ4 uses four different charging modes to keep your battery in peak condition:

Bulk Stage

The Bulk Stage of the IQ4 allows the batteries to be charged from the full rated output of the charger (for example: a 12V charger will charge at a maximum of 14.8V*). This increased charging period reduces the overall charge time of the battery.

Absorption Stage

After the Bulk Stage, the IQ4 then moves to the Absorption Stage (14.2V for a 12V battery*). This mode will continue for up to 480 minutes (8 hours) to ensure that the battery receives a complete charge.

Float Stage

During the Float Stage, the IQ4 reduces the DLS charge voltage. This reduced voltage maintains the full charge while minimizing ‘gassing’ of the battery. The IQ4’s Float Stage prevents boiling and bulging of the battery caused when the battery is exposed to higher charging voltages for too long.

Equalization Stage

If the batteries remain in a “float stage” for a seven-day period, the IQ4 will switch the DLS charger into a pre-programmed Equalization Stage. This protects the battery by dissolving any sulfate layer on the battery’s internal plates and avoids stratification that can occur when a battery has not been used for extended periods.

Features

• Highlights - Provides automatic charge control for IOTA DLS Series Battery Chargers. Reduces charge times. Helps prevent gassing, boiling, and bulging of batteries. Protects batteries from stratification and from sulfating of battery plates. Installs easy by plugging into Dual Voltage Jack of the DLS charger. Flashing LED to indicate current charging stage. External and internal modes available. Models available for any DLS Series Battery Charger.
