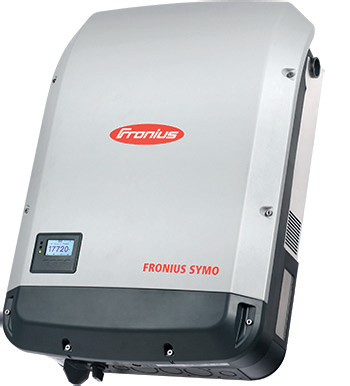

Fronius Symo Lite 15.0-3 15KW 3-Ph Inverter

Hover over image to zoom

  • 4,210,052,841
Fronius
Unavailable
SKU: SYMO-LITE-15-3
Note: Ships LTL Freight.
Condition: New
Weight: 91.90 LBS

 Product Description

Fronius 12KW GRID-TIED INVERTER - Symo Lite 4,210,052,841

Fronius Symo, 15.0-3-208 3-Ph Commercial inverter, 208VAC WYE installations only, strings may be wired up to 1000 VDC, 6 fused +/- terminals, LITE version, no Datamanger Card, 4,210,052,841

Featuring ten models ranging from 10 kW to 24 kW, the transformerless Fronius Symo is the ideal compact threephase inverter for all commercial applications. The high system voltage and wide input range ensure maximum flexibility in system design. With low roof loading, NEMA 4X and 1000 V DC rating, the Fronius Symo can be mounted in many different ways, including flat on a roof or on a pole. The modern design is equipped with the SnapINverter mounting system, allowing for lightweight, secure and convenient installation. Several industry-leading features are available with the Fronius Symo including Wi-Fi and SunSpec Modbus interfaces for seamless monitoring and datalogging, field proven Arc Fault Circuit Interruption (AFCI), NEC 2014 compliant, and Fronius’ superb online and mobile monitoring platform Fronius Solar.web.

Features

  • Compatibility - PC board replacement process. Smart grid ready.
  • Safety - Arc Fault Circuit Interruption. SuperFlex Design.
  • User Friendly - Wi-FI Interface. SnapINverter mounting system.



General Information
Manufacturer: Fronius
Product Line:
Symo Lite
Model ID:
4,210,052,841
Certifications and Safety Ratings: ul.jpg csa.jpg etl.jpg



Mechanical Data

Dimensions:
20.10 x 28.50 x 8.90 inches
Weight: 91.90 lbs
Protection Class: NEMA 4X
Overvoltage Category (DC/AC): < 1W
Night-Time Consumption: Transformerless
Cooling: Variable Speed Fan
Installation: Indoor & Outdoor Installation
Ambient Temperatue Range: -40 - +60 °C
DC Connection Technology: 6x DC+ and 6x DC- screw terminals for copper (solid / stranded / fine stranded) or aluminum (solid / stranded)



Electrical Data

Recommended PV Power: 9.50 - 15.50 kW
Maximum Useable Input Current: 25.00 A / 16.50 Amps
Minimum DC Current: 41.50 Amps
Maximum Array Short Circuit Current: 37.50 / 24.80 Amps
MPP Voltage Range:
300 V - 500 Volts
Operating Voltage Range: 200 V - 600 Volts
Maximum Input Voltage: 600 Volts
Nominal Input Voltage (240/208 V): 350 V / 370 Volts
Maximum Output Power: 11995 VA
Maximum Efficiency: 97.00%



Datasheets

Document Type
logo-adobe-pdf-2.jpgFronius Symo Lite Specifications Specifications
logo-adobe-pdf-2.jpgFronius Symo Lite Installation Guide Installation Manual
Warranty 10 Year Limited Warranty
logo-adobe-pdf-2.jpgFronius Symo Lite Warranty Warranty
