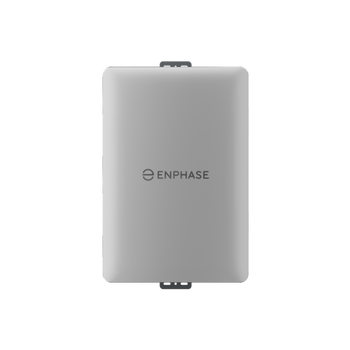

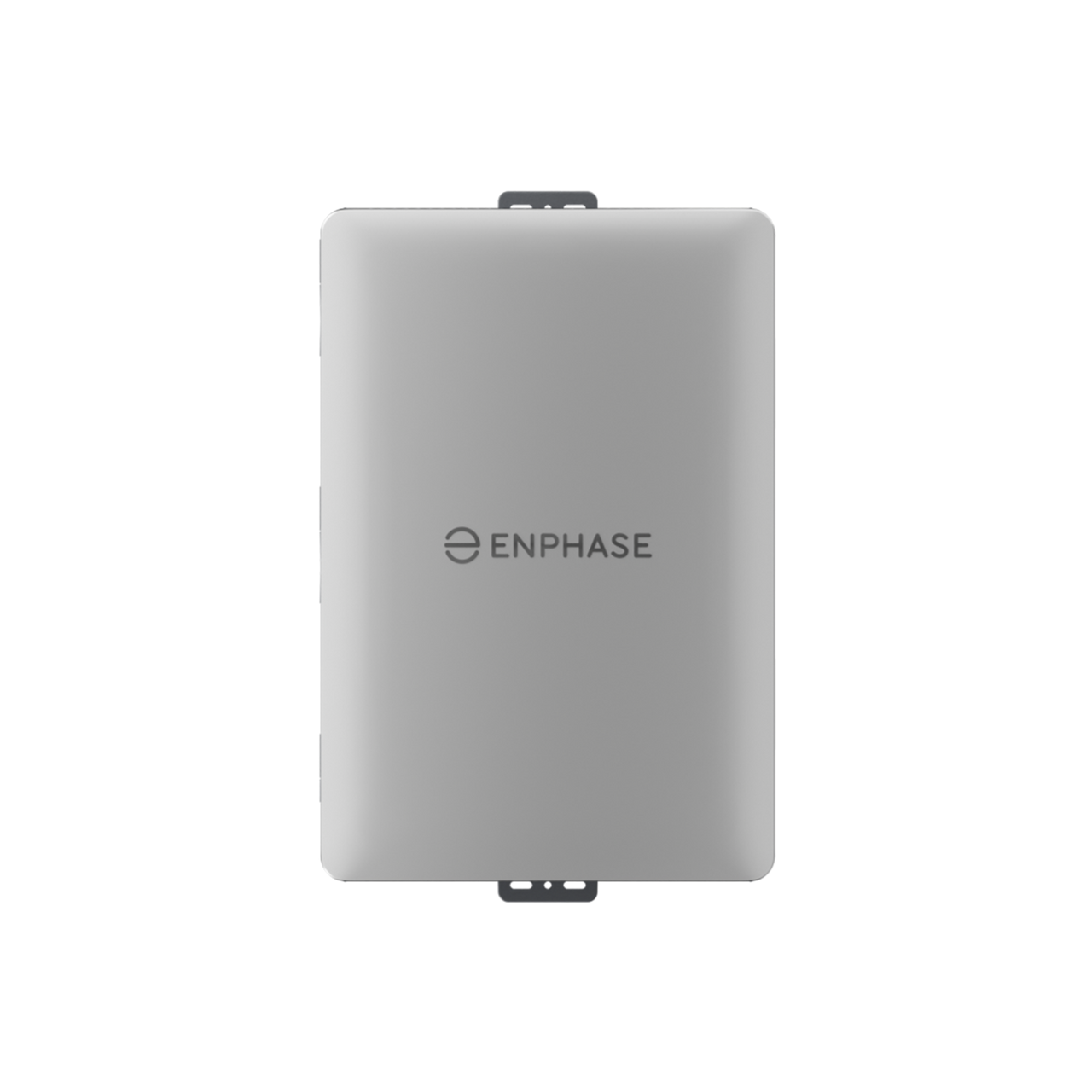

Enphase IQ Combiner 6C

The IQ Combiner 6C consolidates interconnection equipment into a single enclosure, simplifying the installation of IQ Series Microinverters and IQ Batteries by offering a consistent, pre-wired solution for residential applications.

IQ Combiner 6C is compatible with the IQ Battery 10C and IQ Meter Collar, serving as an all-in-one solution that includes breaker spaces for PV, battery, and an EV charger. It integrates a load controller with breaker spaces for loads and includes pre-installed and pre-wired current transformers (CTs) for PV and battery metering.

The IQ Combiner 6C, together with IQ Microinverters, the IQ Meter Collar, and the IQ Battery 10C, provides a complete, backup-capable Enphase Energy System.

Features

• Smart

  • Integrated controller and IQ Gateway
  • Includes Enphase Mobile Connect (CELLMODEM-07-NA)
  • Supports flexible networking: Wi-Fi, Ethernet, or Cellular
  • Provides production and storage metering (revenue-grade)
  • Provides consumption/load/third-party PV and EV charger monitoring

• Easy to install

  • Pre-installed UL 489 certified device for Rapid Shutdown
  • Single stud mountable, with two screws
  • Supports multiple conduit entry options such as top right, top left, bottom left, bottom right, bottom rear, and bottom
  • Supports up to five PV, two battery, and one EV charger branch-circuit breakers
  • Bluetooth-based Wi-Fi provisioning for easy Wi-Fi setup
  • Built-in load controller with space for a double-pole breaker enables easy monitoring and control of heavy loads

• Reliable

  • Durable NRTL-certified NEMA type 3R enclosure
  • UL-certified for safety and performance
  • Field-serviceable IQ Gateway and controller boards

• System voltage: 120/240 VAC, 60 Hz
• Internal DER busbar rating 200 A
• Internal PV busbar rating 100 A
• Maximum continuous DERs current rating 160 A
• Maximum continuous PVs current rating 80 A*
• Maximum backfeed overcurrent protection device (at the point of connection from the grid) 125 A
• Maximum input short circuit current 10 kA
• Maximum load control overcurrent protection device 80 A*
• Maximum overcurrent protection device for PV aggregation 100 A*
• Maximum overcurrent protection device rating for external PV combiner unit 100 A*

Breaker spaces:

• • 4 x 20 A or 3 x 20 A + 1 x 20-20 A IQ Microinverter breakers
  • 2 x 80 A IQ Battery breakers
  • 1 x 60 A IQ Charger breaker
  • 1x 80 A Controlled loads breaker

Dimensions

*Refer to the datasheet for details/restrictions
