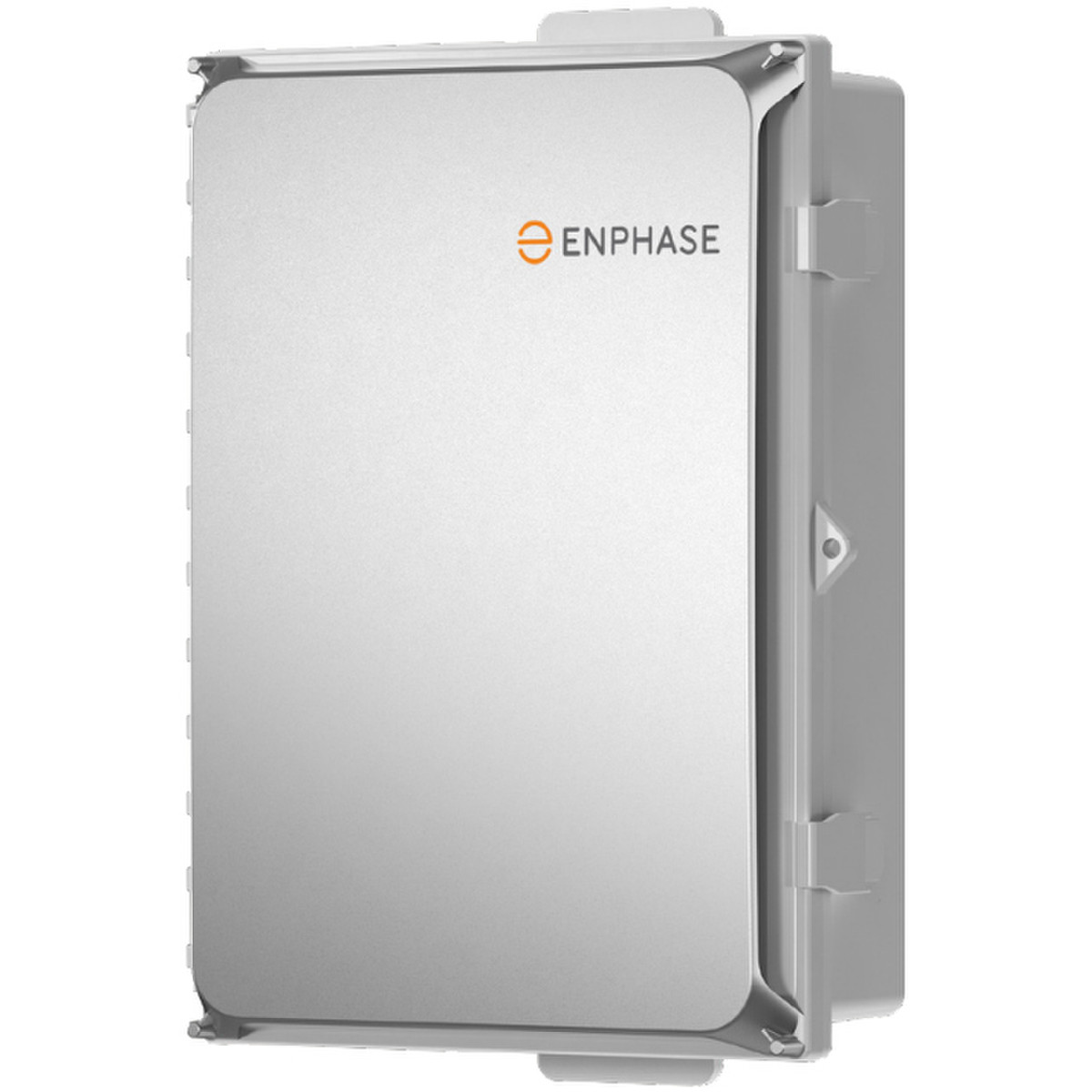

Enphase IQ Combiner 5C with IQ Gateway PCBA. 80A, 120V/240V Split Phase

Image 1

Hover over image to zoom

  • Image 1
Enphase Energy
$1,129.99
SKU: EN-X-IQ-AM1-240-5C
Condition: New
Weight: 16.50 LBS
Shipping: Calculated at checkout

 Product Description

Enphase IQ Combiner 5C with IQ Gateway PCBA. 80A, 120V/240V Split Phase - EN-X-IQ-AM1-240-5C
The IQ Combiner 5C consolidates interconnection equipment into a single enclosure, and streamlines IQ Series Microinverters and IQ Gateway installation by providing a consistent, pre-wired solution for residential applications. It uses Control Cable wiring for communication and is compatible with IQ System Controller 3/3G and IQ Battery 5P.

The IQ Combiner 5C, along with IQ Series Microinverters, the IQ System Controller 3/3G, and the IQ Battery 5P, provides you with a complete, grid-agnostic Enphase Energy System.

Features

Smart

  • Includes IQ Gateway for communication and control
  • Includes Enphase Mobile Connect (CELLMODEM-M1-06-SP-05), only with IQ Combiner 5C
  • Supports flexible networking: Wi-Fi, Ethernet, or cellular
  • Provides production metering (revenue grade) and consumption monitoring

Easy to install

  • Mounts to one stud with centered brackets
  • Supports bottom, back, and side conduit entry
  • Supports up to four 2-pole branch circuits for 240 VAC plug-in breakers (not included)
  • 80 A total PV branch circuits

Reliable

  • Durable NRTL-certified NEMA type 3R enclosure
  • 5-year limited warranty
  • Two years labor reimbursement program coverage included for both the IQ Combiner SKUs
  • UL1741 listed



General Information
Manufacturer: Enphase Energy
Product Line: Microinverter
Model ID:

EN-X-IQ-AM1-240-5C
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications




  • Rating: 80 A
  • System voltage: 120/240 VAC, 60 Hz
  • Eaton BR series busbar rating: 125 A
  • Maximum continuous current rating (input from PV/storage): 64 A
  • Branch circuits (solar and/or storage): Up to four 2-pole Eaton BR series distributed generation (DG) breakers only (not included)
  • Maximum total branch circuit breaker rating (input): 80 A of distributed generation/95 A with IQ Gateway breaker included
  • IQ Gateway breaker: 10 A or 15 A rating GE/Siemens/Eaton included
  • Production metering CT: 200 A solid core pre-installed and wired to IQ Gateway
  • Consumption monitoring CT (CT-200-CLAMP): A pair of 200 A clamp-style current transformers is included with the box
  • IQ Battery metering CT: 200 A clamp-style current transformer for IQ Battery metering, included with the box
  • Depth 19.5 in
  • Width 14.75 in
  • Height 16.8 in
  • Weight 16.5 lbs

Compatibility

  • IQ Series Microinverters
  • IQ Battery 5P
  • IQ System Controller 3/3G
  • Control cable

What’s in the box

  • IQ Combiner 5
  • IQ Gateway printed circuit board
  • IQ Gateway breaker
  • Production CT
  • 2 Consumption CTs
  • IQ Battery CT
  • CTRL board
  • Enphase Mobile Connect



Datasheets

Document Type

logo-adobe-pdf-2.jpgEnphase Energy System component list (3rd-generation)

logo-adobe-pdf-2.jpgIQ Combiner 5/5C data sheet

logo-adobe-pdf-2.jpgPCS Integration in Enphase Energy System tech brief

logo-adobe-pdf-2.jpgPlanning grid-tied IQ Battery system without backup tech brief

logo-adobe-pdf-2.jpgIQ Combiner 5/5C quick install guide

logo-adobe-pdf-2.jpgHow to make the IQ Combiner 5/5C compatible with IQ Battery 3T/10T

Warranty

Guide

Data Sheet

Guide

Guide

Guide

Guide



5 year limited warranty.



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Enphase Energy - Enphase IQ Combiner 5C with IQ Gateway PCBA. 80A, 120V/240V Split Phase
Price: 1129.99
Condition: new



 Warranty Information

MANUFACTURER'S WARRANTY:
The product comes with a 5-year warranty.
