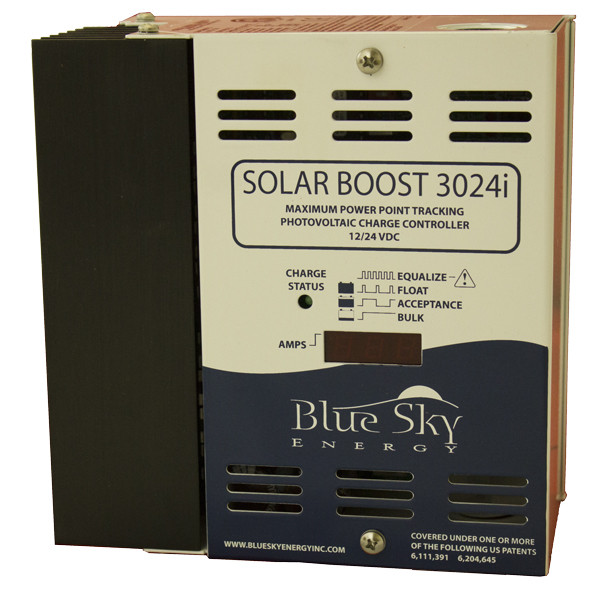

Blue Sky SB3024DiL 12/24V MPPT Charge Controller

Hover over image to zoom

  • SB3024DiL
  • Image 2
  • SB3024DiL
Blue Sky Energy
MSRP: $480.00
$453.95 (You save $26.05)
SKU: ALG-020-03159
Condition: New
Weight: 5.42 LBS
Shipping: Calculated at checkout

 Product Description

Blue Sky Energy MPPT Charge Controller - SB3024DiL

Blue Sky Energy, Solar Boost MPPT Charge Controller with Display, 40A/12V, 30A/24V SB3024DiL

Patented Maximum Power Point Tracking technology allows Solar Boost 3024iL to increase charge current up to 30% or more compared to conventional charge controllers. Don't waste your money by throwing PV power away! Get the power you paid for with a Solar Boost 3024iL charge controller.

Solar Boost 3024iL's advanced fully automatic 3-stage charge control system will properly charge flooded lead-acid, AGM and GEL batteries resulting in improved battery performance with less maintenance. The dual 30/40 amp rating will deliver at up to 30 amps in 24 volt systems, or up to 40 amps in 12 volt systems. An automatic or manual equalize function is also provided to periodically condition flooded lead-acid batteries. To further enhance versatility, a user configurable auxiliary output and Blue Sky Energy's advanced IPN network interface are also included.

The user configurable auxiliary output can serve as either a 20 amp load controller, or as a 2 amp auxiliary battery charger. The load control feature can be used to limit excessive battery discharge in unattended remote systems, where as the auxiliary battery charge feature is ideal for charging a separate battery such as the engine battery in an RV. The auxiliary output can also provide fully adjustable dusk to dawn lighting control

Blue Sky Energy's advanced Integrated PowerNet, or IPN Network, allows up to 8 IPN capable charge controllers to communicate with each other and operate as a single machine rather than separate charge controllers. The IPN network also allows networked controllers to share an optional battery temperature sensor and remote display. The IPN network does not require a display or other special communication hardware to operate.

With the addition of our optional Universal Communications Module (UCM) provides for a full featured communication bridge or gateway between Blue Sky Energy's integrated Power Net based charge controllers. The UCM allows for remote connectivity to the SB3024iL to provide for periodic real time FTP data upload to a remote server and 128 days of data logging. See the UCM data sheet for full capabilities and specifications.

Features

  • Highlights - 40 am 12V or 30 amp 24V rating supports a wide range of applications. Auxiliary output serves as 20 amp load controller or 2 amp battery charger. Load controller provides fully adjustable dusk to dawn lighting control. IPN network interface coordinates multiple controllers and shares optional battery temperature sensor and display. Optional IPN-ProRemote display provides complete charge control and battery system monitoring, eliminating the need for a separate battery monitor device. 3-stage charge control with filtered PWM output and auto/manual equalization improves battery performance and life. MPPT power converter can charge 12 volt batteries from 24 volt PV modules. Durable powder coat finish and conformal coated electronics resist corrosion. Full 5 year limited warranty. Battery temperature sensor input.



General Information
Manufacturer: Blue Sky Energy
Product Line:
Solar Boost
Model ID:
SB3024DiL
Certifications and Safety Ratings: etl.jpg ce.gifcsa.jpg fcc.jpg



Mechanical Data

Technology: Maximum Power Point Tracking (PWM)
Dimensions:
6.80 x 6.65 x 3.45 inches
Weight: 5.42 lbs
Output Current Limit: 30 AMP @ 24 Volts / 40 Amp @ 12 Volts
Nominal Battery Voltage: 12/24 VDC
PV Input Voltage: 57 Maximum (Recommend Maximum Voc at STC < 45.6 VDC)
Power Consumption: 0.35W Typical Standby; 1.0W Typical Charge On
Charge Algorithm: 3-Stage Bulk/Absorption/Float Plus Equalize
Acceptance Voltage: 14.4 VDC (Range 14.0-14.8 VDC, 10.0-40.0 VDC)
Float Voltage: 13.2 VDC (Range 13.2-13.8 VDC, 10.0-40.0 VDC)
Equalization Voltage: 15.2 VDC (Range 10.0-40.0 VDC); Automatic or Manual Operation
Auxiliary Output Function: Single Output Field Configurable as Either: 20 Amp Load Controller or 2 Amp Auxiliary Battery Charger
Auxiliary Battery Charge:
2 Amp Typical, Same Charge Voltage as Primary Battery
Load Control: 20 Amp Maximum; On @ > 12.6 VDC / Off @ < 11.5 VDC (Range 10.0-40.0 VDC, or Net Battery Amp-Hours)
Dusk-to-Dawn Control: Variable Post-Dusk and Pre-Dawn Timers, Rnage 0.5-20.0 Hours
Temperature Compensation: Optional Sensor Adjusts Charge Voltage Based on Measured Battery Temperature, -5.00 mV/°C/Cell Correction Factor (Range -0.00 to -8.00 mV/°C/Cell); Sensor Range -60 to +80°C
Power Conversion Efficiency: 97% Typical @ 28 Volt 24 Amp Output
Analog Input Accuracy/Range: Battery & Auxiliary Battery Voltmeters, 40.0 VDC ± 0.50% FS; PV Voltmeter, 60.0 VDC ± 0.50% FS
Communication: Blue Sky Energy's Proprietary IPN Network Interface
Approvals: ETL Listed to UL STD. 1741, Certified to CAN/CSA STD. E335-1/2E, CE Labeled, FCC Part 15 Certified
Environmental: -40 to +40°C, 10-90% RH Non-Condensing



Datasheets

Document Type
logo-adobe-pdf-2.jpgBlue Sky Energy SB3024DiL Specs Specifications
logo-adobe-pdf-2.jpgBlue Sky Energy SB3024DiL Manual User's Manual
logo-adobe-pdf-2.jpgBlue Sky Energy SB3024DiL Brochure Brochure
Warranty 5 Year Parts and Labor Limited Warranty
logo-adobe-pdf-2.jpgBlue Sky Energy SB3024DiL Warranty
