Blue Sky IPMPRO-S IPN Remote Display w/ Shunt

Hover over image to zoom

  • IPMPRO-S
  • IPMPRO-S
Blue Sky Energy
MSRP: $261.00
$222.40 (You save $38.60)
SKU: ALG-020-03161
Condition: New
Weight: 2.00 LBS
Shipping: Calculated at checkout

 Product Description

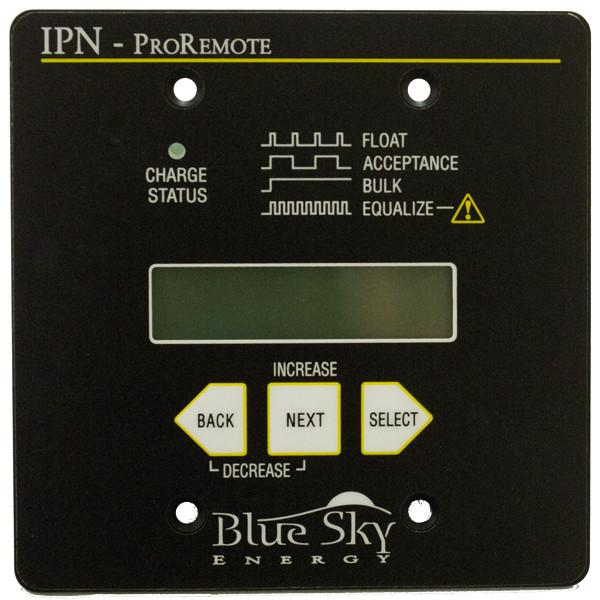

Blue Sky Energy Remote Display with 500A Shunt - IPNPRO-S

Blue Sky Energy, IPN Pro Remote Display with 500A Shunt, IPNPRO-S

The IPN-Remote display combines full-featured charge controller monitoring and battery system monitoring into a single user friendly remote display. A bright crisp backlit LCD display with plain English language text and three simple front panel keys is extremely easy to use.

With the IPN-ProRemote you no longer have to guess how much battery capacity remains. A high accuracy calculation of remaining battery capacity compensates for a variety of factors including charge/discharge current, battery size, type, temperature and how the battery was brought back to full charge. It even learns from past battery behavior to continuously improve accuracy.

The IPN-ProRemote also monitors and controls BlueSky Energy's IPN based charge controllers. It can monitor both the combined total and individual status of up to eight IPN charge controllers on a single IPN network. Depending on a particular charge controller model, certain additional parameters or settings can be accessed or modified with the IPN-ProRemote. With software version 2.00 or later the auxiliary output can also provide fully adjustable dusk to dawn lighting control.

By combining an advanced battery system monitor and charge controller display into a single unit, the IPN-Pro Remote eliminates the need for a separate battery monitor. It also simplifies installation and eliminates the headaches of trying to setup and synchronize separate charge controller and battery monitor systems.

Features

  • Highlights - Monitors up to 8 IPN network based charge controllers: total input/output current, individual controller input/output current PV voltage and internal temperature. Resetable total output amp-hour counter. LVD status or auxiliary battery voltage, equalize on/off control and time remaining, provides access to additional set-up parameters, which may vary by IPN charge controller model. Provides complete full featured battery monitoring: battery voltage, net current and temperature, remaining battery capacity shown in percent and as a bar-graph, amp-hours from full charge, days since last full charge and last equalize, captures minimum and maximum battery voltage, and lifetime battery discharge amp-hours. 2-line 16-character backlit display and plain English language text for ease of use. Conformal coated to resist corrosion. Full 24 month limited warranty, optional extended coverage available.



General Information
Manufacturer: Blue Sky Energy
Product Line:
IPN
Model ID:
IPNPRO-S
Certifications and Safety Ratings: ce.gif



Mechanical Data

Technology: IPN Remote with Display
Dimensions:
4.50 x 4.50 x 1.50 inches
Weight: 2.00 lbs
Current Shunt: Requires Current Shunt in Battery Negative Line, 50mV / 500 Amp
Battery Ammeter: Range: ±773.3A FS; Accuracy: ±1.0% FS
Other Meters: Accuracy/Range of Other Volt/Amp Meters Determined by IPN Charge Controller
Battery Size: 20 - 10,000 Amp-Hours
Power Consumption: 0.25W Typical, 1.0W Typical with Backlight On
Remaining Battery Capacity: 0-100% in 1% Increments, Based on Charge/Discharge Amp-Hour Counting, Self Discharge Rate and Self Tuning Charge Efficiency. Appropriate Factors Temperature Compensated
Amp-Hours From Full: 0 - 16,383 Amp-Hours
Full Charge Determination: Automatically Matched to IPN Charge Controller Set-Up
Total Charge Amp-Hours: 0 - 16,383 Amp-Hours, User Resetable
Lifetime Battery Amp-Hours: 0 - 9,999,999 Amp-Hours
Days Since Full Charge: 0 - 255 Days
Days Since Equalize: 0 - 255 Days
Backlight: Can Be Set to On, Off or Auto (On for 1 Minute Following Key Press)
Communication, Power & Cabling: Requires IPN Network Compatible Charge Controller. Receives Communication and Power from Charge Controller via Standard 4-Pin Telephone Cable. Charge Controller Cable Length to 500' with Power Cabling. Current Shunt Connection via Twisted Pair Cable. Length to 300' with Proper Cabling.
Environmental: -40°C to +40°C, 10-90% RH Non-Condensing



Datasheets

Document Type
logo-adobe-pdf-2.jpgBlue Sky Energy IPNPRO-S Specs Specifications
logo-adobe-pdf-2.jpgBlue Sky Energy IPNPRO-S Manual User's Manual
Warranty 1 Year Limited Warranty
logo-adobe-pdf-2.jpgBlue Sky Energy IPNPRO-S Warranty
