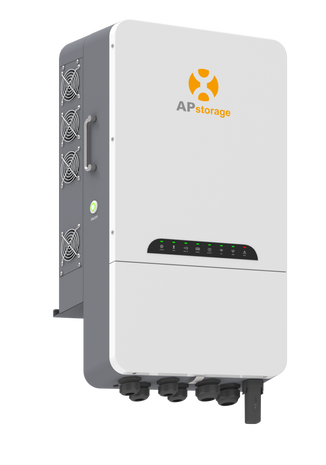

APsystems, ELS 11.4kW AC-Coupled Battery Inverter/PCS (Power Conversion System), 120/240Vac Output, NEMA-4X Enclosure, ELS-11.4K-NA

APsystems, ELS 11.4kW AC-Coupled Battery Inverter/PCS (Power Conversion System), 120/240Vac Output, NEMA-4X Enclosure, ELS-11.4K-NA

APstorage introduces its 1st generation of smart Power Conversion Systems with the ELS battery charger solution.

Together with compatible low voltage batteries connected, it becomes the ideal AC coupling storage solution for residential PV applications. With automatic energy management features based on intelligent software and integrated monitoring, system owners can choose between back-up, self-consumption, peak valley time, and peak shaving modes to secure critical loads during power outages and maximize energy savings for their houses.

Features

Safety

• Ingress protection IP65
• 48V low battery voltage input
• Intelligent charging technology, protecting battery life
• High and low voltage isolation topologies, ensuring personal safety

lntelligent

• Support split-phase unbalanced output
• UPS-level switching time <10ms
• Innovative multiple energy control modes: Backup power supply, Self- consumption, Peak and valley, and Peak shaving
• 24-hour intelligent energy management system
• Intelligent operation and maintenance platform with EMA

Flexible

• Compatible with multiple battery brands
• Provide dedicated interface for connecting generator
• AC-Coupled solution for new or existing installations
• Supports 120/240V split-phase output, no need to connect external transformer
• Provides dry contacts for controlling generator or load

Performance

• Nominal power rating up to 11400VA
• Peak backup power up to 17100VA
• Max efficiency up to 95.6%
