TrinaSolar TSM-305-DD05A.05(II) 305W Mono Solar Panel

Hover over image to zoom

  • TSM-305-DD05A.05(II)
  • TSM-DD05A.05.II Side
Trina Solar
MSRP: $325.00
$185.00 (You save $140.00)
SKU: SLR-110-1205
Note: Ships LTL Freight Only
Condition: New
Weight: 41.00 LBS
Shipping: Calculated at checkout

 Product Description

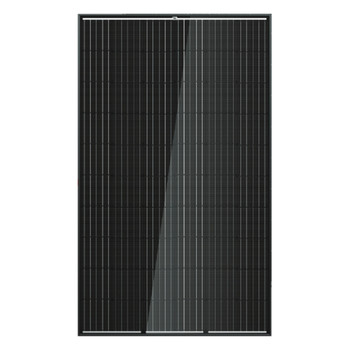

TrinaSolar 305w Mono Solar Panel - TSM-305-DD05A.05(II)

Trina, 305W PV Module, MC-4 Connector, PV Wire, 35mm Black Frame with Black Backsheet, BoB, 60 Cell Mono, 20A Fuse, 1000VDC, 3.2mm glass, 278.4W PTC, TSM-305-DD05A.05(II)

Founded in 1997, Trina Solar is the world’s leading comprehensive solutions provider for solar energy. We believe close cooperation with our partners is critical to success. Trina Solar now distributes its PV products to over 60 countries all over the world. Trina Solar is able to provide exceptional service to each customer in each market and supplement our innovative, reliable products with the backing of Trina Solar as a strong, bankable partner. We are committed to building strategic, mutually beneficial collaboration with installers, developers, distributors and other partners.

Features

  • Aesthetics - Great aesthetics for dark roofs. Dark mono cells. Back frame and backsheet.
  • High Efficiency - Excellent low light performance on cloudy days, mornings and evenings: advanced surface texturing, back surface field and selective emitter. Maximize limited space with high efficiency: up to 189w/m² power density, low thermal coefficients for greater energy production at high operating temperatures.
  • Reliable - Highly reliable due to stringent quality control. All modules have to pass electroluminescence (EL) inspection. Over 30 in-house tests (UV, TC, HF, and many more). In house testing goes well beyond certification requirements. PID resistant. 1000V UL/1000V IEC certified. Certified to withstand challenging environmental conditions: 2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h, ammonia resistance, salt mist resistance, and resistance to sand and dust abrasion.



General Information
Manufacturer: TrinaSolar
Product Line:
Honey Plus+
Model ID:
TSM-305-DD05A.05(II)
Certifications and Safety Ratings: ce.giful.jpg tuv.jpg iso.jpg pv-cycle.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
64.96 x 39.06 x 1.38 inches
Weight: 41.00 lbs
Front Glass: 32 mm, High Transparency, AR Coated and Heat Tempered Solar Glass
Backsheet: Black
Frame: Anodized Aluminum Alloy (Black)
Junction Box: IP67 or IP68 Rated
Cables: Photovoltatic Technology Cable 4.0mm², 1000mm
Connector: EU Counties: 28 MC4/UTX/TS4, Non-EU Countries: 28 QC4/TS4



Electrical Data

Maximum Power (Pmax): 305 Watts
Power Output Tolerance (Pmax): 0/+5
Maximum Power Voltage (Vmpp): 42.90 Volts
Maximum Power Current (Impp): 9.28 Amps
Open Circuit Voltage (Voc): 40.00 Amps
Short Circuit Voltage (Isc): 9.85 Amps
Module Efficiency: 18.60%



Datasheets

Document Type
logo-adobe-pdf-2.jpgTrinaSolar TSM-305-DD05A.05(II) Specs Specifications
logo-adobe-pdf-2.jpgTrinaSolar Installation Installation Guide
Warranty 10 Year Limited Product Warranty
Performance Guarantee 25 Year Limited Power Output Warranty
logo-adobe-pdf-2.jpgTrinaSolar Warranty Warranty
