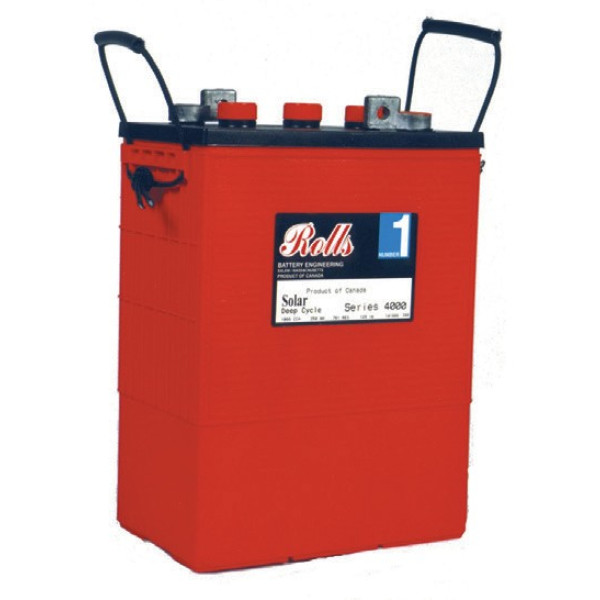

Surrette Rolls S-550 6V 428Ah Flooded Battery
Hover over image to zoom
Surrette Rolls
Discontinued
SKU: S-550-Z
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 94.00 LBS
Product Description
| Surrette Rolls 6V Flooded Battery - S-550 |
|
Surrette Rolls, 428 Ah @20hr 6V Flooded Deep Cycle Battery, S-550 Looking to learn more about Rolls Battery Engineering? It starts with the exclusive manufacturer – Surrette Battery Company Ltd. Established in 1935, Surrette Battery Company Ltd. is proud to be one of North America’s leading lead-acid battery producers and Canada’s only remaining independent battery manufacturer. Located in Springhill, Nova Scotia, we produce a wide range of Rolls-branded premium deep cycle batteries for use in Renewable Energy, Marine, Motive Power and Railroad applications. Rolls flooded and sealed AGM & GEL VRLA products are internationally recognized for their dependability, outstanding quality and industry-leading manufacturer warranties. |
|
Features
|
| General Information | |
| Manufacturer: | Surrette Rolls |
| Product Line: |
4000 Series |
| Model ID: |
S-550 |
| Certifications and Safety Ratings: |  |
| Mechanical Data |
|
| Technology: | Deep Cycle Flooded Battery |
| Dimensions: |
12.50 x 7.25 x 16.75 inches |
| Weight: | 94.00 lbs |
| Weight (Wet): | 123.00 lbs |
| Container: |
High Density Polypropylene |
| Cover: | High Density Polypropylene |
| Terminals: | Flag M |
| Handles: | Rope |
| Plate Height: | 11.55 Inches |
| Plate Width: | 5.63 Inches |
| Thickness (Positive): | 0.17 Inches |
| Thickness (Negative): | 0.12 Inches |
| Cells: | 17 Plates/Cell; 3 Cell |
| Separator Thickness: | 0.61 Inches |
| Glass Mat Insulation: | 0.02 Inches |
| Electrolyte Reserve Above Plates: | 2.25 Inches |
| Cold Crank Amps (CCA): | -17.8°C; 1315 |
| Marine Crank Amps (MCA): | 0°C; 1645 |
| Reserve Capacity (RC @25A): | 931 Minutes |
| Electrical Data |
|
| Capacity 546Ah |
|
| 100 Hour Rate: | 1.28 @ Specific Gravity; 544 @ Capacity/Amp Hr; 5.54 @ Current/Amps |
| 72 Hour Rate: |
1.28 @ Specific Gravity; 524 @ Capacity/Amp Hr; 7.28 @ Current/Amps |
| 50 Hour Rate: | 1.28 @ Specific Gravity; 500 @ Capacity/Amp Hr; 10.00 @ Current/Amps |
| 24 Hour Rate: | 1.28 @ Specific Gravity; 441 @ Capacity/Amp Hr; 18.37 @ Current/Amps |
| 20 Hour Rate: | 1.28 @ Specific Gravity; 428 @ Capacity/Amp Hr; 21.40 @ Current/Amps |
| 15 Hour Rate: | 1.28 @ Specific Gravity; 401 @ Capacity/Amp Hr; 26.76 @ Current/Amps |
| 12 Hour Rate: | 1.28 @ Specific Gravity; 381 @ Capacity/Amp Hr; 31.74 @ Current/Amps |
| 10 Hour Rate: | 1.28 @ Specific Gravity; 364 @ Capacity/Amp Hr; 36.38 @ Current/Amps |
| 8 Hour Rate: | 1.28 @ Specific Gravity; 342 @ Capacity/Amp Hr; 42.80 @ Current/Amps |
| 6 Hour Rate: | 1.28 @ Specific Gravity; 317 @ Capacity/Amp Hr; 52.79 @ Current/Amps |
| 5 Hour Rate: | 1.28 @ Specific Gravity; 300 @ Capacity/Amp Hr; 59.92 @ Current/Amps |
| 4 Hour Rate: | 1.28 @ Specific Gravity; 278 @ Capacity/Amp Hr; 69.55 @ Current/Amps |
| 3 Hour Rate: | 1.28 @ Specific Gravity; 253 @ Capacity/Amp Hr; 84.17 @ Current/Amps |
| 2 Hour Rate: | 1.28 @ Specific Gravity; 218 @ Capacity/Amp Hr; 109.14 @ Current/Amps |
| 1 Hour Rate: | 1.28 @ Specific Gravity; 154 @ Capacity/Amp Hr; 154.08 @ Current/Amps |
| Datasheets |
|
| Document | Type |
 Surrette Battery S-550 Specs |
Specifications |
| Surrette Battery S-550 Manual |
Users Manual |
| Warranty | See Warranty Statement |
| Surrette Battery S-550 Warranty |
Warranty |
