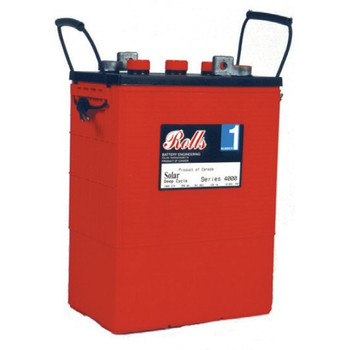

Surrette Rolls 6V Flooded Battery - S-500EX |
Surrette Rolls, 357 Ah @20hr 6V Flooded Deep Cycle Battery, S-500EX Looking to learn more about Rolls Battery Engineering? It starts with the exclusive manufacturer – Surrette Battery Company Ltd. Established in 1935, Surrette Battery Company Ltd. is proud to be one of North America’s leading lead-acid battery producers and Canada’s only remaining independent battery manufacturer. Located in Springhill, Nova Scotia, we produce a wide range of Rolls-branded premium deep cycle batteries for use in Renewable Energy, Marine, Motive Power and Railroad applications. Rolls flooded and sealed AGM & GEL VRLA products are internationally recognized for their dependability, outstanding quality and industry-leading manufacturer warranties. |
Features
|
General Information | |
Manufacturer: | Surrette Rolls |
Product Line: |
4500 Series |
Model ID: |
S-500EX |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Deep Cycle Flooded Battery |
Dimensions: |
12.50 x 7.14 x 16.75 inches |
Weight: | 100.00 lbs |
Weight (Wet): | 131.50 lbs |
Container: |
High Density Polypropylene |
Cover: | High Density Polypropylene |
Terminals: | Flag M |
Handles: | Rope |
Plate Height: | 10.75 Inches |
Plate Width: | 5.63 Inches |
Thickness (Positive): | 0.27 Inches |
Thickness (Negative): | 0.19 Inches |
Cells: | 11 Plates/Cell; 3 Cell |
Separator Thickness: | 0.11 Inches |
Glass Mat Insulation: | 0.02 Inches |
Electrolyte Reserve Above Plates: | 3.75 Inches |
Cold Crank Amps (CCA): | -17.8°C; 845 |
Marine Crank Amps (MCA): | 0°C; 1056 |
Reserve Capacity (RC @25A): | 768 Minutes |
Electrical Data |
|
Capacity 546Ah |
|
100 Hour Rate: | 1.28 @ Specific Gravity; 504 @ Capacity/Amp Hr; 5.04 @ Current/Amps |
72 Hour Rate: |
1.28 @ Specific Gravity; 475 @ Capacity/Amp Hr; 6.60 @ Current/Amps |
50 Hour Rate: | 1.28 @ Specific Gravity; 439@ Capacity/Amp Hr; 8.78 @ Current/Amps |
24 Hour Rate: | 1.28 @ Specific Gravity; 371 @ Capacity/Amp Hr; 15.46 @ Current/Amps |
20 Hour Rate: | 1.28 @ Specific Gravity; 357 @ Capacity/Amp Hr; 17.85 @ Current/Amps |
15 Hour Rate: | 1.28 @ Specific Gravity; 332 @ Capacity/Amp Hr; 22.13 @ Current/Amps |
12 Hour Rate: | 1.28 @ Specific Gravity; 311 @ Capacity/Amp Hr; 25.92 @ Current/Amps |
10 Hour Rate: | 1.28 @ Specific Gravity; 296 @ Capacity/Amp Hr; 29.60 @ Current/Amps |
8 Hour Rate: | 1.28 @ Specific Gravity; 278 @ Capacity/Amp Hr; 34.75 @ Current/Amps |
6 Hour Rate: | 1.28 @ Specific Gravity; 253 @ Capacity/Amp Hr; 42.17 @ Current/Amps |
5 Hour Rate: | 1.28 @ Specific Gravity; 239 @ Capacity/Amp Hr; 47.80 @ Current/Amps |
4 Hour Rate: | 1.28 @ Specific Gravity; 221 @ Capacity/Amp Hr; 55.25 @ Current/Amps |
3 Hour Rate: | 1.28 @ Specific Gravity; 200 @ Capacity/Amp Hr; 66.67 @ Current/Amps |
2 Hour Rate: | 1.28 @ Specific Gravity; 171 @ Capacity/Amp Hr; 85.80 @ Current/Amps |
1 Hour Rate: | 1.28 @ Specific Gravity; 121 @ Capacity/Amp Hr; 121.00 @ Current/Amps |
Datasheets |
|
Document | Type |
Surrette Battery S-500EX Specs | Specifications |
Surrette Battery S-500EX Manual | Users Manual |
Warranty | See Warranty Statement |
Surrette Battery S-500EX Warranty | Warranty |
