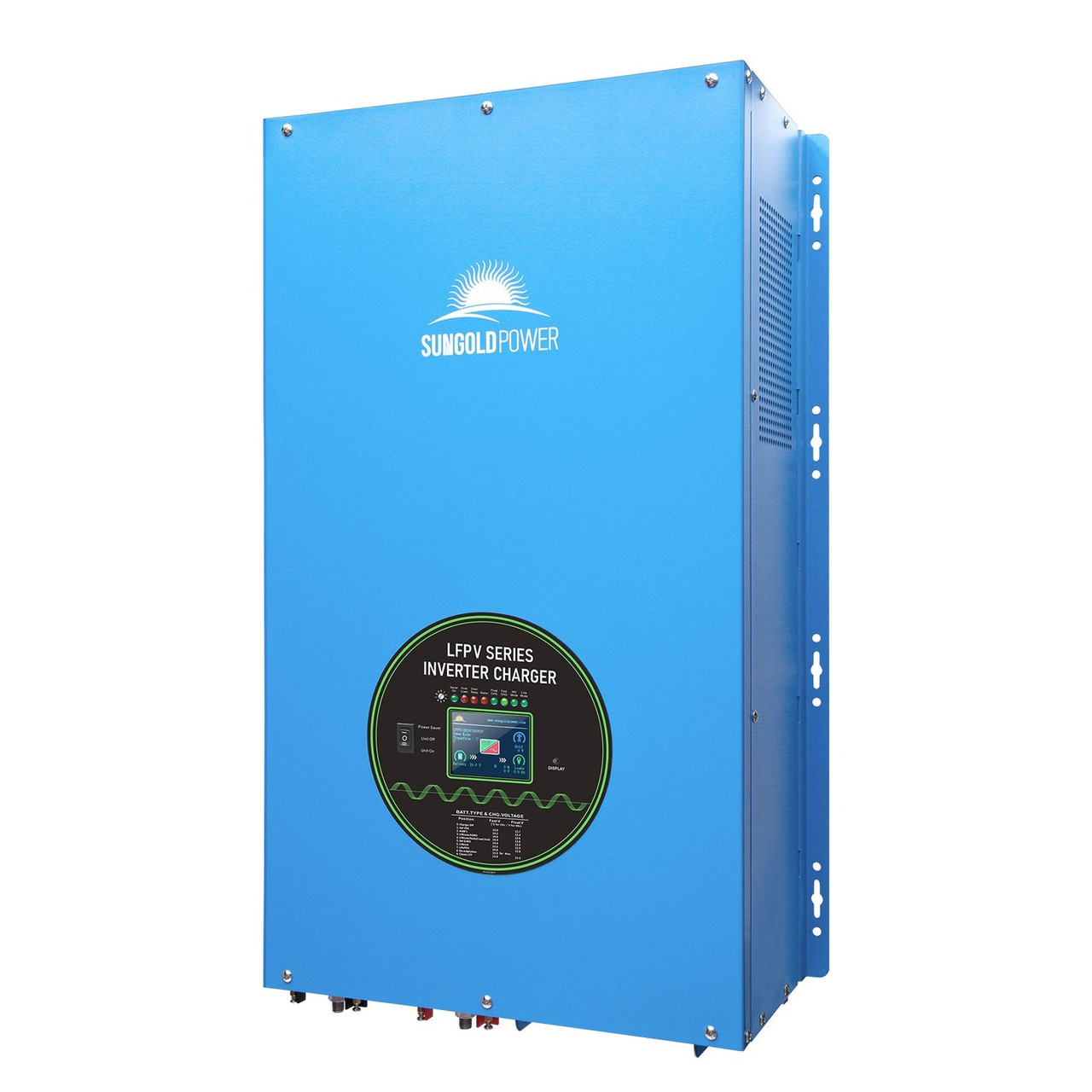

SunGoldPower 12000W 48V Split Phase Pure Sine Wave Inverter Charger

FEATURES

★ LF-PV Series Pure Sine Wave Inverter is a combination of a 48-volt inverter, AC charger, and Auto-transfer switch into one complete system (without MPPT).

★ The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

★ AC/Battery Priority: The 12000 watt power inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

★ Features: Smart Remote Control, Automatic Generator Starting (AGS), Suitable for different kinds of batteries.

★ Application: for all kinds of loads: refrigerators, freezers, microwaves, dryers, air conditioners, pumps, and all the big home and business applications.

Main Features:
*12KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V
*Auto Generator Start (AGS)
*Include Battery Temperature Sensor (BTS) and Remote Control
*8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries）
*Compatible With All kind of Home & Office Appliances
*Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%
*Built-in transfer switch and battery charge, backup or off grid power solutions
*AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
*4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
*8 ms Typical Transfer Time Between Utility & Battery,Ensure Power Continuity
*15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator

Main Specification：
Continuous Output Power: 12.0KW
Surge Rating(20s): 36.0KW
Output Waveform: Pure Sine Wave
AC Output Voltage: 120V and 240V
AC Input Voltage: 240V ( not suitable for AC 120V input )
DC Battery Voltage: 48Vdc
AC Battery charger: 115±5Amp
Output Frequency: 50Hz /60Hz
Typical transfer Time: 10ms(Max)

DC Input:
Nominal Input Voltage: 48.0Vdc
Minimum Start Voltage: 40.0Vdc/ 42.0Vdc
Low Battery Alarm: 42.0Vdc / 44.0Vdc
Low Battery Trip: 40.0Vdc / 42.0Vdc
High Voltage Alarm: 64.0Vdc
Low Battery voltage recover: 62.0Vdc
Power Saver on Idle Consumption: 40W
Power Saver off Idle Power: 180W

Charger :
Output Voltage: Depends on battery type
Battery Initial Voltage for Start Up: 40-62.8V
Over Charge Protection Shutdown: 62.8V
Charger Breaker: 80A
Input Voltage Waveform: Sine wave (Grid or Generator)
AC input range:184-253Vac/140-270Vac
Nominal Input Frequency :50Hz or 60Hz (Auto detect)

Packaging:
*12000W 48V Split Phase Pure Sine Wave Power Inverter
*English Manual
*Remote Control
*BTS Cable
*Unit Weight: 160LB
*Unit Size: 27.6 x 16.5 x 8 inch
*Shipping Weight: 185 LB
*Shipping Size: 29.2 x 23 x 16.5 inch
