Solaria PowerXT-355R-AC 355w Mono Solar Panel w/ IQ+ Micro

Hover over image to zoom

  • PowerXT-355R-AC
  • IQ7PLUS-72-2-US Microinverter
Solaria
RRP: $899.99
$506.95 (You save $393.04)
SKU:
SLR-112-0007
Note:
Ships LTL Freight Only
Condition:
New
Weight:
48.00 LBS
Shipping:
Calculated at checkout

 Product Description

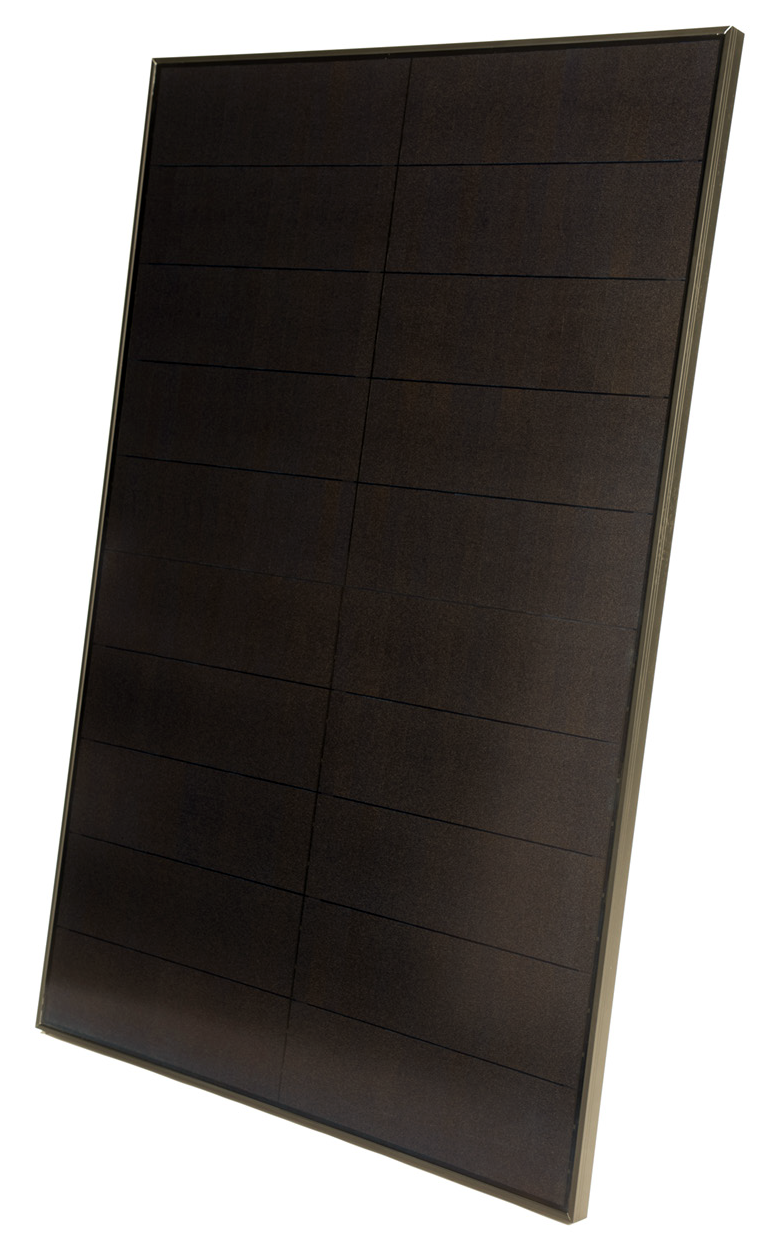

Solaria 355w Mono AC Solar Panel with Microinverter - PowerXT-355R-AC

Solaria, AC module, XT-355R with Enphase IQ7+ Micro Inverter, 355W DC, 240V/60Hz AC, 40mm Black Frame with Black Backsheet, BOB, No PTC, PowerXT-355R-AC

The Solaria PowerXT AC Module combines the latest cutting-edge microinverter technology from Enphase with the premium high-efficiency and superior aesthetics of the Solaria PowerXT Module. Utilizing the latest Enphase IQ7+ platform, the PowerXT AC Module puts aesthetics and performance together into an elegant user-friendly package that reduces installation time by combining the inverter, module and monitoring.

Achieving up to 20% efficiency, Solaria PowerXT solar modules are one of the highest power AC modules in the residential solar market. Compared to conventional modules, Solaria PowerXT modules have fewer gaps between the solar cells; this leads to higher power and superior aesthetics. Solaria PowerXT residential modules are manufactured with black backsheet and frames, giving them a striking appearance.

Established in 2000, The Solaria Corporation has created one of the industry’s most respected IP portfolios, with over 100 patents encompassing materials, processes, applications,products, manufacturing automation and equipment. Headquartered in Fremont, California, Solaria has developed a technology platform that unlocks the potential of solar energy allowing it to be ubiquitous and universally accessed.

Features

  • Higher Efficiency and Power - Solaria PowerXT modules achieve up to 20% efficiency; conventional modules typically achieve between 15 to 17% efficiency. Combined with the Enphase IQ+ microinverter, the Solaria PowerXT AC Module is one of the highest power and most efficient AC modules available.
  • Easy to Install and Smart Grid Ready - The integrated Enphase IQ7+ microinverter reduces installation costs by taking the complexity and guesswork out of designing systems and combining components in the field. It is also compliant with NEC 201&2017 rapid shutdown requirements. Meets CA Rule 21 and complies with advanced grid support, voltage and frequency ride-through requirements. Remotely updates to respond to changing grid requirements and is configurable for varying grid profiles.
  • Superior Aesthetics and Durability - Compared to conventional modules, the Solaria PowerXT AC module has a more uniform appearance and improved aesthetics. Industry leading 25 year warranty with a million hours of microinverter testing.



General Information
Manufacturer: Solaria
Product Line:
PowerXT
Model ID:
PowerXT-355R-AC
Certifications and Safety Ratings: cec.jpg ul.jpg vde.jpg tuv.jpg  enphase-energized-panel.png



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:

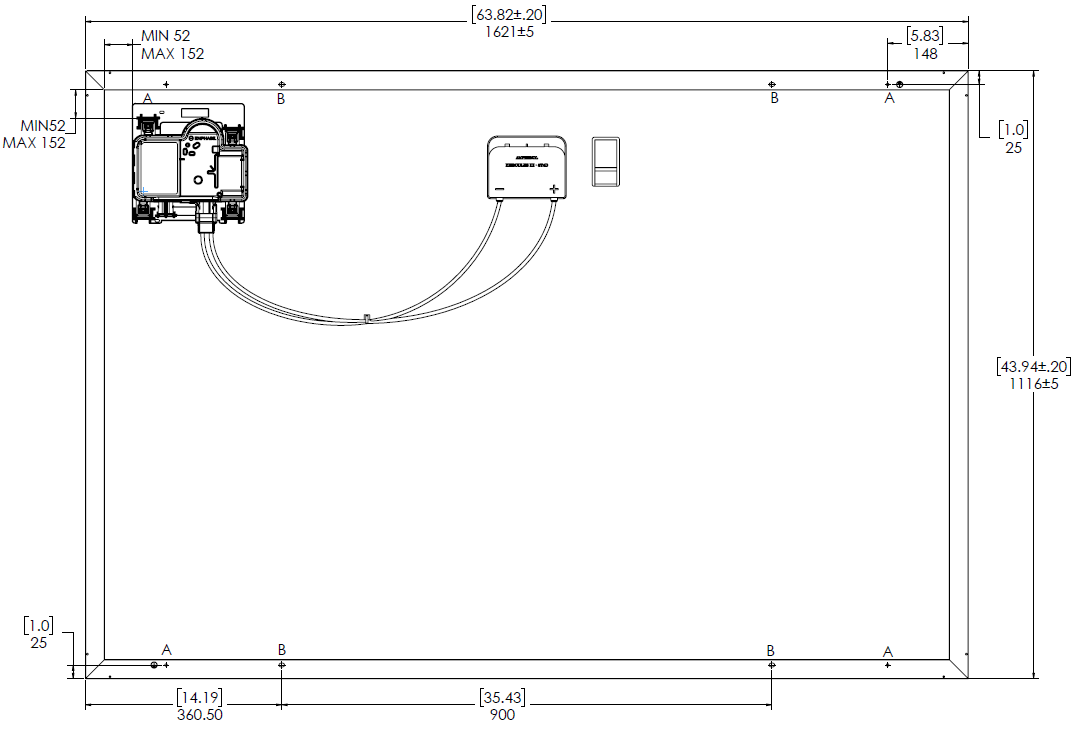

63.82 x 43.94 x 1.57 inches (PowerXT-355R-AC Dimensions)
Weight: 48.00 lbs
Front Glass: AR Coated, Tempered Glass / 3.2 mm
Frame Type: Anodized Aluminum (Black)
Cable Type: 12 AWG PV Wire (UL) / 1000 mm
Junction Box: IP67 / 4 Diodes
Front Load (UL 1703): 5400 Pa / 113 Psf
Rear Load (UL 1703): 3600 Pa / 75 Psf
Certifications: UL 1703/UL1741/CEC; NEMA 3R
Fire Type (UL 1703): 1
Enphase Energy Features
Communication Monitoring: Power Line
Monitoring: Enlighten Manager and MyEnlighten Options, Compatible with Enphase IQ Envoy
Disconnecting Means: Approved by UL for AC and DC Load Break as Required by NEC Article 690
Rapid Shutdown: Compliant per NEC-2014 & 2017



Electrical Data

Maximum Power (Pmax): 355 Watts
Efficiency: 19.60%
Open Circuit Voltage (Voc): 47.40 Volts
Short Circuit Current (Isc): 9.53 Amps
Maximum Power Voltage (Vmp): 39.10 Volts
Maximum Power Current (Imp): 9.09 Amps
NOCT: 45+/-2°C
AC Output Data: Enphase IQ7+ Microinverter
Peak Output Power: 300 VA
Max. Continuous Power: 290 VA
Nominal Voltage: 240 V
Max. Continuous Current: 1.21 A
Nominal Frequency: 60 Hz
Extended Frequency Range: 47-68 Hz
Efficiency: 97.0%
Power Factor: 0.7 Leading / 0.7 Lagging
Max. Branch Circuit: 20 A
Operating Temperature: -40°C to +65°C



Datasheets

Document Type
logo-adobe-pdf-2.jpgSolaria PowerXT-355R-AC Specs Specifications
logo-adobe-pdf-2.jpgSolaria PowerXT Installation Guide Installation Guide
Warranty 25 Year Power and Product Warranty
logo-adobe-pdf-2.jpgSolaria Warranty Warranty
