Solaria PowerXT-325R-PX 325w Mono Solar Panel

Hover over image to zoom

  • PowerXT-325R-PX
Solaria
RRP: $585.00
$308.10 (You save $276.90)
SKU:
SLG-110-1099
Condition:
New
Weight:
44.00 LBS
Note:
This item ships via LTL freight only.
Shipping:
Calculated at checkout

 Product Description

Solaria 325w Mono Solar Panel - PowerXT-325R-PX

Solaria, 325W PV Module, H-4 (MC4-compatible), PV Wire, 40mm Black Frame, Black Back Sheet, BoB,  Mono, 15A Fuse, 1000VDC, 297.5 PTC, PowerXT-325R-PX

Achieving over 19% efficiency, Solaria PowerXT solar modules are one of the highest power modules in the residential solar market. Compared to conventional modules, Solaria PowerXT modules have fewer gaps between the solar cells; this leads to higher power and superior aesthetics. Solaria PowerXT residential modules are manufactured with black backsheet and frames, giving them a striking appearance.

Developed in California, Solaria’s patented cell cutting and module assembly form high-density sub-strings, which are packed more efficiently and reduce inactive space between cells. By utilizing a ribbon-less interconnection process, cells are cut and overlaid without soldering, which creates highly reliable sub-string assemblies in a cost effective manner.

Features

  • Higher Efficiency and Power - Solaria PowerXT modules achieve over 19% efficiency; conventional modules achieve 15%-17% efficiency. Solaria PowerXT modules are one of the highest power modules available.
  • Lower System Costs - Sub-strings are interconnected in parallel, within each of the four module quadrants, which dramatically lowers the shading losses and boosts energy yield.
  • Improved Aesthetics and Durability - Compared to conventional modules, Solaria PowerXT modules have a more uniform appearance and superior aesthetics. Solder-less interconnections are highly reliable and designed to far exceed the industry leading 25 year warranty.



General Information
Manufacturer: Solaria
Product Line:
PowerXT
Model ID:
PowerXT-325R-PX
Certifications and Safety Ratings: ce.gifcsa.jpg ul.jpg vde.jpg mcs.jpg pv-cycle.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:

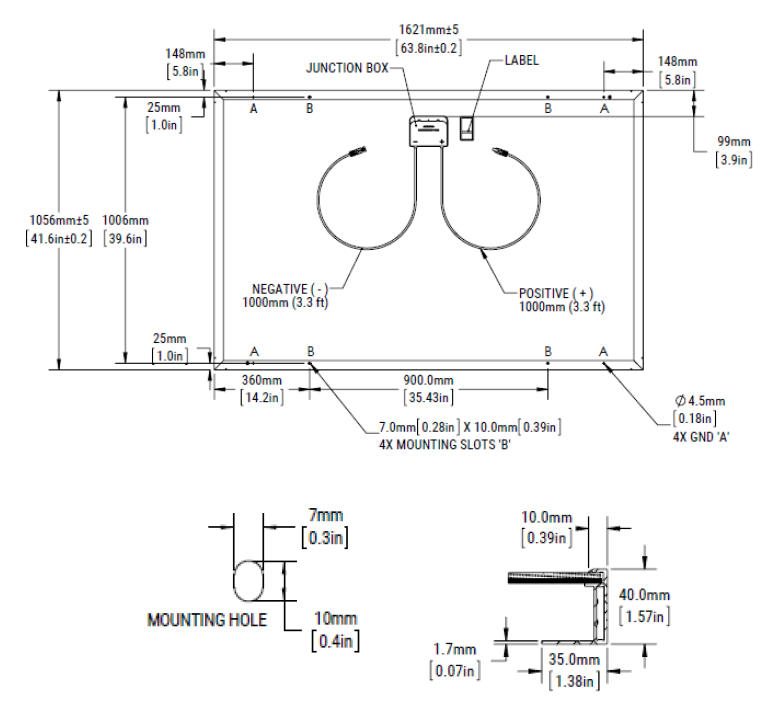

63.82 x 41.57 x 1.57 inches (PowerXT-325R-PX Dimensions)
Weight: 44.00 lbs
Front Glass: AR Coated, Tempered Glass / 3.2 mm
Frame Type: Anodized Aluminum (Black)
Back Sheet: (Black)
Cable Type: 12 AWG PV Wire (UL) / 3.2 mm
Connector Type:
Amphenol H4 (MC4 Compatible)
Junction Box: IP67 / 4 Diodes
Front Load (UL 1703): 5400 Pa / 113 Psf
Certifications: UL 1703/IEC 61215/IEC 61730/CEC
Fire Type (UL 1703): 1



Electrical Data

Maximum Power (Pmax): 325 Watts
Efficiency: 19.00%
Open Circuit Voltage (Voc): 44.30 Volts
Short Circuit Current (Isc): 9.46 Amps
Maximum Power Voltage (Vmp): 36.40 Volts
Maximum Power Current (Imp): 8.93 Amps
Power Tolerance: -0/+3%
NOCT: 45+/-2°C
Temperature Coefficient of Pmax: -0.40%/°C
Temperature Coefficient of Voc: -0.32%/°C
Temperature Coefficient of Isc: 0.05%/°C
Operating Temperature: -40 to +85°C
Maximum System Voltage: 1000 Volts
Max Fuse Rating: 15 Amps
Bypass Diodes: 4



Datasheets

Document Type
logo-adobe-pdf-2.jpgSolaria PowerXT-325R-PX Specs Specifications
logo-adobe-pdf-2.jpgSolaria PowerXT-325R-PX Installation Guide Installation Guide
Warranty 25 Year Power and Product Warranty
logo-adobe-pdf-2.jpgSolaria PowerXT-325R-PX Warranty Warranty
