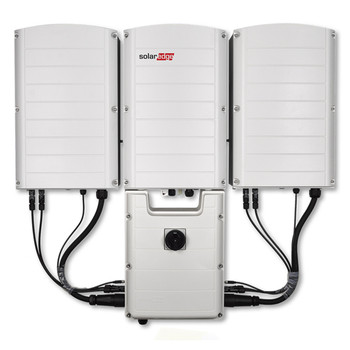

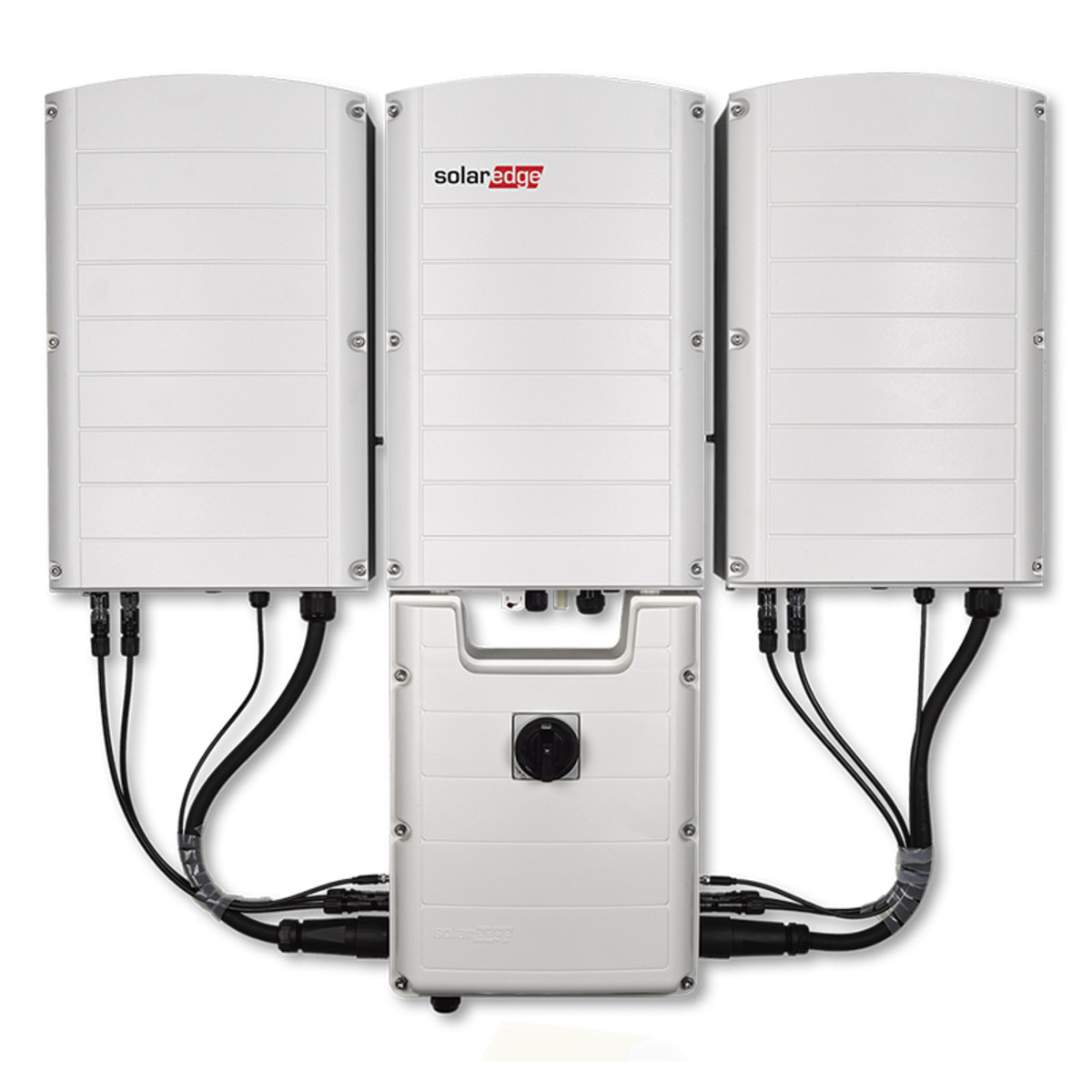

SolarEdge Three Phase SESU-USRS0NNN4 Universal Secondary Inverter

SolarEdge, Universal Commercial Inverter Secondary SKU. ***Paired as Follows*** 43.2kW - 1 Primary, 2 Secondary 66.6kW - 1 Primary, 1 Secondary 100kW - 1 Primary, 2 Secondary, SESU-USRS0NNN4

The SolarEdge PV inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability.

A proprietary data monitoring receiver has been integrated into the single phase solar inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge monitoring portal for performance analysis, fault detection and troubleshooting of PV systems.

Features

• Highlights - Easy two-person installation - each unit mounted separately, equipped with cables for simple connection between units. Balance of System and labor reduction compared to using multiple smaller string inverters. Independent operation of each unit enables higher up-time and easy serviceability. No wasted area: wall/rail mounted, or horizontally mounted under the modules (10° inclination). Integrated arc fault protection and rapid shutdown for NEC 2014 and 2017, per article 690.11 and 690.12. Built-in module-level monitoring with Ethernet or cellular GSM. Fixed voltage inverter for superior efficiency (98.5%) and longer strings. Integrated DC Safety Switch and optional surge protection & DC fuses (plus & minus). Built-in RS485 Surge Protection Device, to better withstand lightning events.
