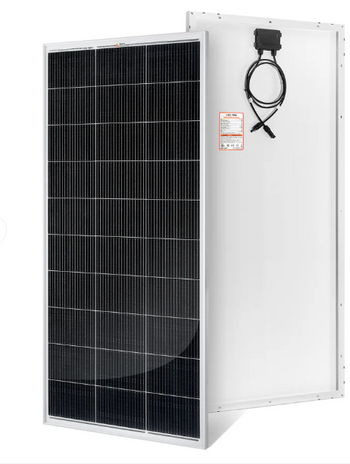

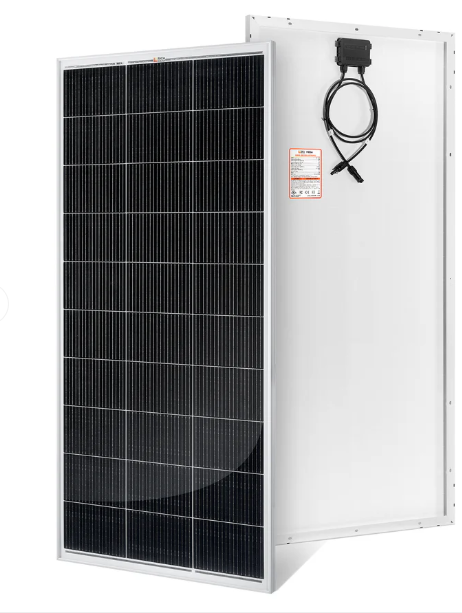

Rich Solar MEGA 200 Watt 12V Solar Panel
Hover over image to zoom
Rich Solar
Product Description
FEATURES
MEGA 200
200W 12V SOLAR PANEL
-
Maximum Power(Pmax) 200W
Maximum Power Voltage(Vmp) 18.4V
Maximum Power Current(Imp) 10.9A
Open Circuit Voltage(Voc) 21.8V
Short Circuit Current(Isc) 11.6A
Nominal Operating Cell Temp(NOCT) 113 +/-35° F
Temperature Range -40 ~ +185°F
Weight 23.6 lbs
Dimensions 58.7 x 26.8 x 1.2 in
Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
High PerformanceExcellent low-light performance even on early mornings, evenings, and cloudy days.
Rugged DurabilityBuilt with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame.
Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
Warranty25-year limited warranty for power output; 10-year workmanship warranty.
Specifications
200W 12V SOLAR PANEL
-
Maximum Power(Pmax) 200W
Maximum Power Voltage(Vmp) 18.4V
Maximum Power Current(Imp) 10.9A
Open Circuit Voltage(Voc) 21.8V
Short Circuit Current(Isc) 11.6A
Nominal Operating Cell Temp(NOCT) 113 +/-35° F
Temperature Range -40 ~ +185°F
Weight 23.6 lbs
Dimensions 58.7 x 26.8 x 1.2 in
INFO & GUIDE
Manufacturer's Warranty: 25-year power output warranty replacement
Rich Solar - Rich Solar MEGA 200 Watt 12V Solar Panel
Condition: new
Warranty Information
Rigid Solar Panels
25-Year Power Output Warranty
10-Year Workmanship Warranty
Portable Solar Panels
25-Year Power Output Warranty
5-Year Workmanship Warranty
2-Year Warranty for Controller on Kits
Flexible Panels
1-Year Warranty
Batteries
ALPHA LITE Series
*5-Year Warranty
ALPHA Series
*5-Year Warranty
ALPHA PRO Series
*10-Year Warranty
LiFePO4 Battery Bank (Black)
*5-Year Warranty
Inverters
Grid-Tie Inverters
10-Year Warranty
Pure Sine Wave Inverters
2-Year Warranty
Hybrid Inverters
3-Year Warranty
Controllers
MPPT Controllers
2-Year Warranty
PWM Controllers
1-Year Warranty
