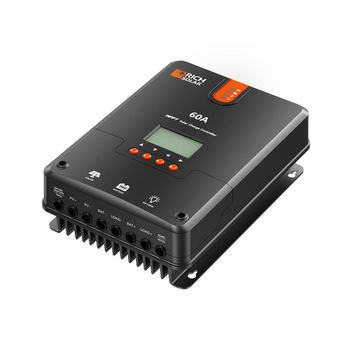

Rich Solar RS-MPPT60 60 Amp MPPT Solar Charge Controller

Hover over image to zoom

  • Rich Solar RS-MPPT60 60 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT60 60 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT60 60 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT60 60 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT60 60 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT60 60 Amp MPPT Solar Charge Controller
Rich Solar
MSRP: $299.99
$239.99 (You save $60.00)
SKU: RS-MPPT60
Condition: New
Weight: 7.94 LBS
Shipping: Free Shipping

 Product Description

Rich Solar RS-MPPT60 60 Amp MPPT Solar Charge Controller - RS-MPPT60





Features

  • Automatically detects 12V/24V/36V/48V DC system voltages.
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
  • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
  • Features diverse load control; also capable of charging over-discharged lithium batteries.
  • Die-cast aluminum design allows for efficient heat dissipation.
  • RS232 port for communicating with BT-1 Bluetooth module.



General Information
Manufacturer: Rich Solar
Product Line: Solar Charge Controller
Model ID:
RS-MPPT60
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications




  • Rated Battery Current: 60A
  • Rated Load Current: 20A
  • Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
  • Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
  • Charge Circuit Voltage Drop: ≤0.26V
  • Discharge Circuit Voltage Drop: ≤0.15V
  • Operating Temperature: -31°F to 113°F
  • Max Terminal Size: <11mm
  • Overall Dimensions: 11.2 x 8.1 x 3.7 in
  • Net Weight: 7.94 lb



Available Now at Solaris – Trusted Distributor.



Datasheets

Document Type

logo-adobe-pdf-2.jpgSpecSheet

logo-adobe-pdf-2.jpgManual

SpecSheet

Manual
