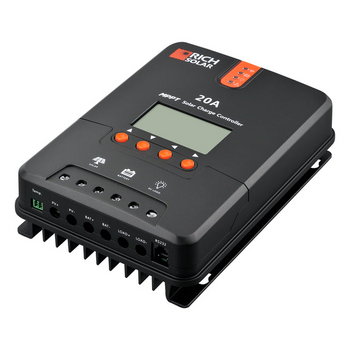

Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller

Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller

Hover over image to zoom

  • Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller
  • Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller
Rich Solar
MSRP: $89.99
$71.99 (You save $18.00)
SKU: RS-MPPT20
Condition: New
Weight: 3.08 LBS
Shipping: Free Shipping

 Product Description

Rich Solar RS-MPPT20 20 Amp MPPT Solar Charge Controller - RS-MPPT20





Features

  • Automatically detects 12V or 24V DC system voltages
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
  • Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
  • Features diverse load control; also capable of charging over-discharged lithium batteries
  • Die-cast aluminum design allows for efficient heat dissipation
  • RS232 port to communicate with BT-1 Bluetooth module



General Information
Manufacturer: Rich Solar
Product Line: Solar Charge Controller
Model ID:
 RS-MPPT20
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications




  • Nominal System Voltage: 12V/24V Auto Recognition
  • Rated Battery Current: 20A
  • Rated Load Current: 20A
  • Max. PV Input Short Current: 25A
  • Max. Battery Voltage: 32V
  • Max Solar Input Voltage: 100 VDC
  • Discharge Circuit Voltage Drop: ≤0.15 V
  • Max. Photovoltaic System Input Power: 260W/12V, 520W/24V
  • Conversion Efficiency: ≤98%
  • MPPT Tracking Efficiency: >99%
  • Operating Temperature: -35℃ to +45℃
  • Protection Degree: IP32
  • Net Weight: 3.08 lb
  • Overall Dimensions: 8.27 x 5.94 x 2.34 in



Available Now at Solaris – Trusted Distributor.



Datasheets

Document Type

logo-adobe-pdf-2.jpgSpecSheet

logo-adobe-pdf-2.jpgManual

SpecSheet

Manual
