SMA RSB-2S-US-10 Rapid Shutdown Box

Hover over image to zoom

  • RSB-2S-US-10
SMA America
Discontinued
SKU: ALG-053-01820
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 10.00 LBS

 Product Description

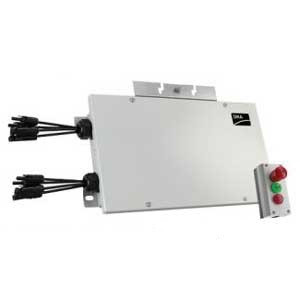

SMA Rapid Shutdown Box- RSB-2S-US-10
SMA, Rapid Shutdown Box, 600V, 4 strings, 2 in parallel per channel, RSB-2S-US-10

The SMA Rapid Shutdown System is the most cost-effective way to achieve 2014 NEC 690.12 Rapid Shutdown compliance for systems using Sunny Boy inverters. This DC powered system allows for the use of Secure Power Supply, providing opportunity power to homeowners during daytime grid outages. Hybrid switches and automatic self-test ensure system safety and durability, reducing risk and costs. Each component plays a critical role in a PV system; don’t compromise your Sunny Boy’s performance with any other rapid shutdown solution.

Features

  • Reliable & Perfect Alignment - Optimal system reliability with hybrid switches for disconnecting. Automatic self-test upon startup to ensure functionality. Engineered for Sunny Boy-US and Sunny Boy TL-US inverter lines with multiple MPP tracking channels. Compatible with Secure Power Supply.
  • Code Compliant - UL-Certified and compliant with 2014 NEC 690.12 Rapid Shutdown. No interference with AFCI function of Sunny Boy inverters.
  • Cost Effective - Incorporated junction box reduces equipment and speeds installation time. Pre-wired MC4 connectors and snap terminals reduce materials and installation time.



General Information
Manufacturer: SMA America
Product Line:
SMA Accessory
Model ID:
RSB-2S-US-10
Certifications and Safety Ratings: ul.jpg ieee.jpg fcc.jpg csa.jpg



Mechanical Data

Technology: Rapid Shutdown
Dimensions:
21.30 x 14.00 x 3.00 inches
Weight: 10.00 lbs
DC Input:
Cable Whips with MC4 Connectors
Wire Size DC Outputs: AWG 12 to AWG 6
Wire Size Control Wires: AWG 18 to 16
Wire Size Grounding: AWG 10 to AWG 6
Enclosure Rating: Type 4X
Enclosure Finish: Aluminum
Conduit Size (Home Run): 3/4 Inch Conduit
Conduit Size (Control Wires): 2 x 1/2 Inch for Daisy Chain Wiring
Compliance: NEC 2014, Article 690.12
Safety Listing and Certification: UL 1741
Type Design: RSB-2S-US-10
Ambient Temperature Range:
-40°C to +75°C



Electrical Data

Maximum Input Voltage: 600VDC
Minimum Input Voltage: 100VDC
Number of DC Inputs: 4 Strings, 2 in Parallel per Channel
DC Operating Current per Channel:
20ADC
Maximum Channel Short Circuit Current per Channel:
36ADC
Integrated Power Supply: DC Powered by PV Array (Max. 5W)
