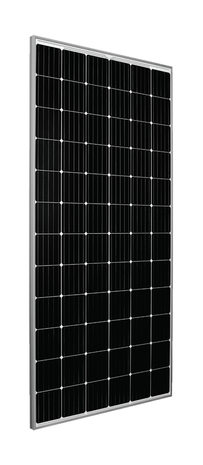

Silfab Solar 380W Mono Solar Panel - SIL-380 NT |
Silfab Solar, 380w Monocrystalline Solar Panel, 72 Cell, SIL-380 NT Silfab panels are designed and manufactured to meet Buy American Act Compliance. The US State Department, US Military and FAA have all utilized Silfab panels in their solar installations. Engineered to accommodate low load bearing structures up to 5400Pa. The light-weight frame is exclusively designed for wide-ranging racking compatibility and durability. Total automation ensures strict quality controls during the entire manufacturing process at our ISO certified facilities. 48.18 ppm as per December 2018. Silfab Solar manufactures our PV modules in two automated locations within North America. Our 300+ North American team is ready to help our partners win the hearts and minds of customers, providing customer service and product delivery that is direct, efficient and local. Sleek design in silver frame with white backsheet. PID Resistant due to advanced cell technology and material selection. In accordance to IEC 62804-1. |
Features
|
General Information | |
Manufacturer: | Silfab Solar |
Product Line: |
SIL NT |
Model ID: |
SIL-380 NT |
Certifications and Safety Ratings: | ![]() ![]() ![]() ![]() |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |
78.43 x 39.13 x 1.50 inches |
Weight: | 51.81 lbs |
Maximum Surface Load (Wind/Snow): | 2400 Pa Rear Load / 5400 Pa Front Load |
Hail Impact Resistance: | Ø 25mm at 83 km/h |
Cells: | 72 Cell Si Mono PERC - 5 Busbar |
Glass: | 3.2 mm High Transmittance, Tempered, DSM Anti-Reflective Coating |
Backsheet: | High Durability, Superior Hydrolysis Resistance, Multi-Layer Dielectic Film |
Frame: | Anodized Aluminum |
Electrical Data |
|
Module Power (Pmax): | 380 Wp |
Maximum Power Voltage (Vpmax): | 39.25 Volts |
Maximum Power Current (Ipmax): | 9.69 Amps |
Open Circuit Voltage (Voc): | 47.95 Volts |
Short Circuit Current (Isc): | 10.29 Amps |
Module Efficiency: | 19.2% |
Datasheets |
|
Document | Type |
![]() |
Specifications |
![]() |
Installation Guide |
Warranty | 25 Year Product Warranty |
Performance Guarantee | 30 Year Linear Power Performance |
![]() |
Warranty |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 25 Year Product Warranty
Performance Guarantee: 30 Year Linear Power Performance
