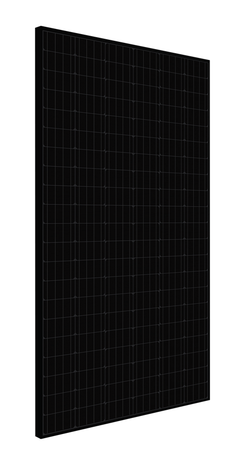

Silfab Solar 330W Mono Solar Panel - SIL-330 BL |
Silfab Solar, 330w Monocrystalline Solar Panel, 126 Half Cut Cells, SIL-330 BL 126 high-efficiency half-cut cells combined with a black conductive back-sheet resulting in a maximum power rating of 330Wp. Leveraging over 35+ years of worldwide experience in the solar industry, Silfab is dedicated to superior manufacturing processes and innovations such as Bifacial and Back Contact technologies to ensure our partners have the latest in solar innovation. Silfab panels are designed and manufactured to meet Buy American Act Compliance. The US State Department, US Military and FAA have all entrusted Silfab panels in their solar installations. Engineered to accommodate low load bearing structures up to 5400Pa. The light-weight frame is exclusively designed for wideranging racking compatibility and durability. Total automation ensures strict quality controls during the entire manufacturing process at our ISO certified facilities. 48.18 ppm as per December 2018. Silfab is 100% North American which means our customer service is direct, efficient and local. Your solar panels can be delivered anywhere in the Continental USA within days. Superior Power achieved through relocation of tabbing ribbon to reduce shading on module front surface. Sleek aesthetics from black cells to black back-sheet without tabbing or bus-bar ribbons, ideal for residential applications. Enhanced life-time performance through reduced thermal stresses and increased current flow paths. PID Resistant due to advanced cell technology and material selection. In accordance to IEC 62804-1. |
Features
|
General Information | |
Manufacturer: | Silfab Solar |
Product Line: |
SIL BL |
Model ID: |
SIL-330 BL |
Certifications and Safety Ratings: | ![]() ![]() ![]() ![]() |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |
66.93 x 39.37 x 1.50 inches |
Weight: | 42.99 lbs |
Maximum Surface Load (Wind/Snow): | 4000 Pa Upward / 5400 Pa Downward |
Hail Impact Resistance: | Ø 25mm at 83 km/h |
Cells: | 126 High-Efficiency Half-Cut Mono-PERC MWT c-Si Cells |
Glass: | 3.2 mm High Transmittance, Tempered, DSM Anti-Reflective Coating |
Backsheet: | Multi-Layer, Integrated Insulation Film and Electrically Conductive Basket |
Frame: | Anodized Aluminum (Black) |
Electrical Data |
|
Module Power (Pmax): | 330 Wp |
Maximum Power Voltage (Vpmax): | 34.2 Volts |
Maximum Power Current (Ipmax): | 9.65 Amps |
Open Circuit Voltage (Voc): | 42.1 Volts |
Short Circuit Current (Isc): | 9.98 Amps |
Module Efficiency: | 19.4% |
Datasheets |
|
Document | Type |
![]() |
Specifications |
![]() |
Installation Guide |
Warranty | 25 Year Product Warranty |
Performance Guarantee | 30 Year Linear Power Performance |
![]() |
Warranty |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 25 Year Product Warranty
Performance Guarantee: 30 Year Linear Power Performance
