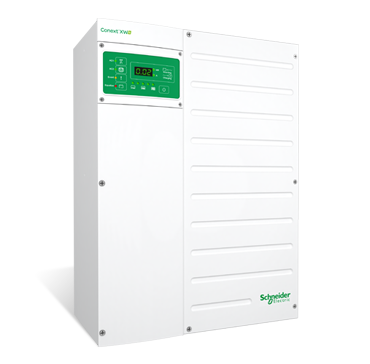

Schneider Electric CONEXT XW+5548-NA 5500W Battery Inverter

Hover over image to zoom

  • RNW865554801
Schneider Electric
MSRP: $4,924.00
$2,883.85 (You save $2,040.15)
SKU: ALG-030-01227Z
Note: Ships LTL Freight Only
Condition: New
Weight: 165.00 LBS
Shipping: Calculated at checkout

 Product Description

Schneider Electric 5.5KW Battery INVERTER - RNW865554801

Schneider Electric, CONEXT XW+5548-NA battery inverter, 5500W, 120/240VAC, 50/60Hz, 60A Transfer, 48VDC, Sinewave, Grid Tied, 110A PFC Charger, 5 Yr Warr, with BTS, RNW865554801

Conext SW delivers new value and a new price point to the marketplace in 2013. Conext SW is a pure sine wave, inverter/charger system with switchable 50/60 Hz functionality available for both 120/240 VAC or 230 VAC models.

North American units feature split-phase input and output without the need for an external transformer. Available DC and AC switchgear panels, display control panel, remote monitoring and automated generator control modules present even more value. Stacking Conext SW units will double the power and available solar charge controllers allow for the integration of solar capacity as required.


  • Easy to Install - Configures quickly into compact wall mounted system. Companion switchgear integrates inverter with battery bank and solar charge controllers.
  • Flexible & Easy to Service - All models support both 50 Hz and 60 Hz output. All models support stackable power. Remote monitoring and configuration. Global support.
  • Higher ROI - Cost effective residential and community system. Harness the continuously declining production cost of solar power.


General Information
Manufacturer: Schneider Electric
Product Line:
Model ID:
Certifications and Safety Ratings: ul.jpg csa.jpg fcc.jpg ieee.jpg


Mechanical Data
23.00 x 16.00 x 9.00 inches
Weight: 118.00 lbs
IP Degree of Protection: NEMA Type 1 Indoor
Operating Air Temperature Range: -25 to +70°C
System Monitoring and Network Communications: Available
Intelligent Features: Grid Sell, Peak Load Shave, Generator Support, Prioritized Consumption of Battery or External DC Energy
Auxiliary Port: 0 to 12 V, Maximum 250mA DC Output, Select-able Triggers
Off-Grid AC Coupling: Frequency Control
Multi-Unit Operation: Single and Split Phase: Up to Four Units in Parallel, Three Phase: Up to 12 Units in Multi-Cluster Configuration with External AC Conductor


Electrical Data
Inverter AC Output
Continuous Output Power at 25°C: 5500 Watts
Overload 30min/60sec at 25°C:
7000 Watts/9500 Watts
Continuous Output Power at 40°C: 4500 Watts
Maximum Output Current 60sec: 82 Amps (120 Volts); 41 Amps (240 Volts)
Output Frequency (Select-able): 50/60 Hz
Output Voltage: L-N: 120 V +/- 3%; L-L: 240 V +/- 3%
Total Harmonic Distortion:
< 5%
Ideal Consumption Search Mode: < 8 W
Input DC Voltage Range: 42 to 60 V (48 V Nominal)
Maximum Input DC Current: 150 Amps
Charger DC Output
Maximum Output Charge Current: 110 Amps
Output Voltage Range: 40-64 Volts (48 V Nominal)
Charge Control: Three Stage, Two Stage, Boost, Custom
Charge Temperature Compensation: Battery Temperature Sensor Included
Power Factor Corrected Charging: 0.98
Compatible Battery Types: Flooded (Default), Gel, AGM, LiON, Custom*
Battery Bank Range (Scaled to PV Array Size): 440 - 1000 Ah
AC Input
AC 1 (Grid) Input Current: 3-60 A (60 A Default)
AC 2 (Generator) Input Current: 3-60 A (60 A Default)
Automatic Transfer Relay Rating: 60 Amps
Typical Transfer Time: 8 ms
AC Input Voltage Limits: L-N: 78-140 V (120 V Nominal); L-L: 160-270 V (240 V Nominal)
AC Input Frequency Range: 55-65 Hz (Default); 52-68 Hz (Allowable)
AC Grid-Tie Output
Grid Sell Current Range on AC1: 0 to 48 A (120 V) / 0 to 27 A (240 V)
Grid Sell Voltage Range on AC1: L-N: 105.5 to 132 +/- 1.5 V; L-L: 211 to 264 +/-3.0 V
Grid Sell Frequency Range on AC1: 59.4 to 60.4 +/- 0.05 Hz
Peak Efficiency: 95.7%
CEC Weighted Efficiency: 93.0%


Document Type
logo-adobe-pdf-2.jpgSchneider Electric RNW865554801 Specifications Specifications
logo-adobe-pdf-2.jpgSchneider Electric RNW865554801 Installation Guide Installation Manual
Warranty 2 Year Contractual Warranty
logo-adobe-pdf-2.jpgSchneider Electric RNW865554801 Warranty Warranty
