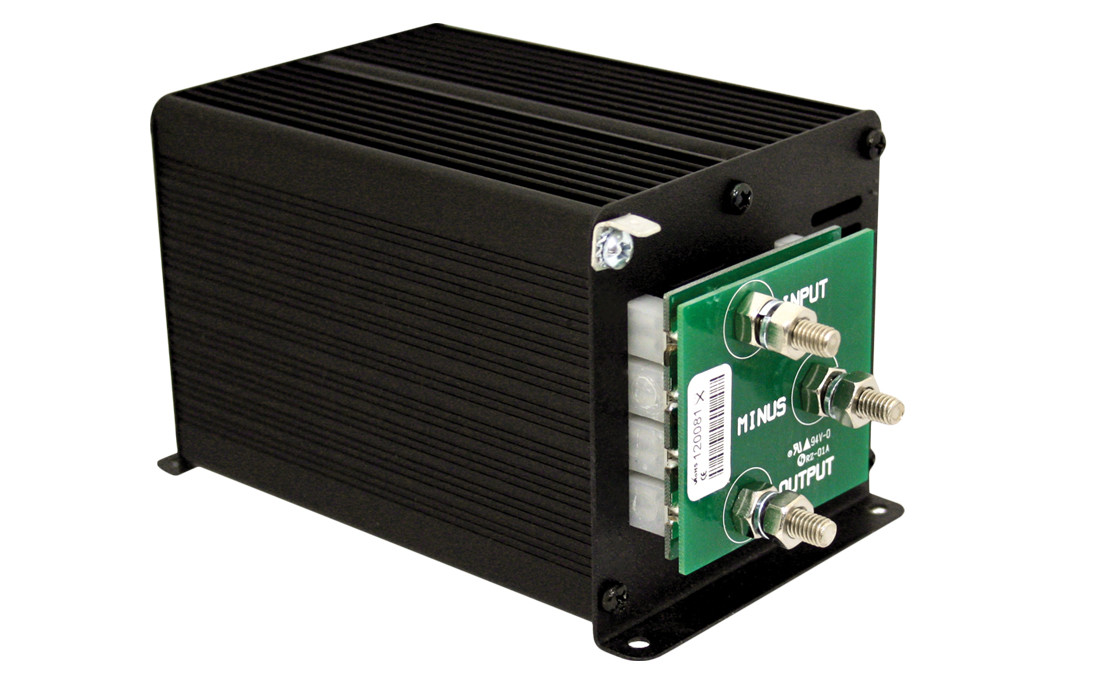

Samlex America, 20-32V to 13.8V, 60A, DC-DC Converter, SDC-60 This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 60 Amps. The SDC-60 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection. |
Features
|
General Information | |
Manufacturer: | Samlex America |
Product Line: |
SDC |
Model ID: |
SDC-60 |
Certifications and Safety Ratings: | ![]() |
Mechanical Data |
|
Technology: | DC-DC Converter |
Dimensions: |
3.50 x 3.60 x 7.00 inches |
Weight: | 2.60 lbs |
Input / Output Connections: | Terminal Block - MC6 Bolt and Nut |
Output Ripple and Noise: | Less Than 50 mV RMS |
Efficiency: | ~ 92% |
Operating Ambient Temperature: | -20°C to +30°C |
Humidity: | Maximum 95%, Non-Condensing |
Overload: | By Current Limiting |
Cooling: | Temperature Controlled Fan |
Over Heating: | Drop in Output Voltage |
Reverse Polarity: | Fuse Protection |
Over Voltage: | Varistor (Also Protects Against Load Dump) |
Input Side Fuse: | 60 A (2 Pieces of 32 V, 30 A in Parallel) |
Emission: | EN50081-1 |
Immunity: | EN50082-1 |
Automotive Directive: | 95 / 45 / EC |
Electrical Data |
|
Input to Output Isolation: |
Not Isolated. Input and Output Connections Have a Common Negative. |
Input Voltage: | 20 to 35 VDC |
Output Voltage: | 13.8 VDC ± 0.1 V |
Output Voltage Regulation: | 3% |
Input Current at No Load: | < 50 mA |
Continuous Output Current: | 60 Amps |
Current Limit: | 70 Amps |
