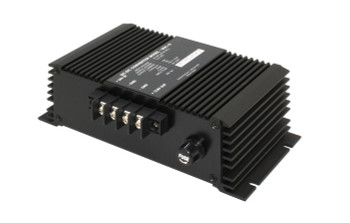

Samlex SDC-15 15A DC-DC Non-Isolated Converter

Hover over image to zoom

  • SDC-15
Samlex America
Unavailable
SKU: ALG-030-08720
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 2.00 LBS

 Product Description

Samlex America 15A DC-DC Isolated Converter - SDC-15

Samlex America, DC-DC Non-Isolated Converter, 20-32V to 13.8V, 15A, SDC-30

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 12 Amps. The SDC-15 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-15 DC-DC converter is designed for heavy duty applications.

Features

  • Highlights - Advanced switch mode design. Mounts in almost any location. Compact and light weight. Reverse polarity protection. High efficiency. Cycle by cycle current limiting circuit. Over voltage protection. Short circuit protection. Applications: Earth moving equipment, heavy trucks, buses, marine vehicles, CB radios, 12 volt lighting systems, AM/FM sound systems.



General Information
Manufacturer: Samlex America
Product Line:
Samlex Accessory
Model ID:
SDC-15
Certifications and Safety Ratings: ce.gif



Mechanical Data

Technology: DC-DC Converter
Dimensions:
2.40 x 7.80 x 4.80 inches
Weight: 2.00 lbs
Input to Output Isolation: Not isolated. Input and output connections have a common negative.
Fuse Protections: Overload, Short Circuit



Electrical Data

Output Voltage: 13.8 VDC ± 0.1 Volts
Continuous Output Current: 12 Amps
Peak Output Current: 15 Amps
Current Limit: 16 ± 0.5 Amps
Input Current at No Load: < 150 mA
Input Voltage: 12-35 VDC
Load Regulation: 0.15 Volts, 26 Volts, 0-12 Amps
Efficiency @ Maximum Output: > 88%



Datasheets

Document Type
logo-adobe-pdf-2.jpgSamlex America SDC-15 Specs Specifications
logo-adobe-pdf-2.jpgSamlex America SDC-15 Manual User's Manual
Warranty 2 Year Limited Warranty
