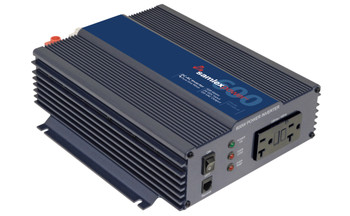

Samlex America 600W Battery Inverter - PST-600-24 |
Samlex America, 600w Battery Inverter, Pure Sine Wave Series, 24VDC, 120VAC, 60Hz, PST-600-24 This high efficiency DC-AC inverter converts 24 Volts DC to 600 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include built-in electronic GFCI, overload protection, low battery alarm / shut down, low idle power draw of less than 0.5 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards. |
Features
|
General Information | |
Manufacturer: | Samlex America |
Product Line: |
Pure Sine Wave |
Model ID: |
PST-600-24 |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Battery Inverter |
Dimensions: |
9.37 x 10.87 x 3.23 inches |
Weight: | 5.90 lbs |
Operating Temperature Range: | -20°C to 40°C |
Forced Air Cooling: | Temperature Controlled Fan: Fan ON at 55°C ± 3°C; Fan OFF at 45°C ± 3°C |
AC Output Connections: | NEMA 5-20R GFCI Duplex Outlets |
DC Input Connections: | Hole Diameter: 11mm; M8 Set Screw |
Display: | LED: Power, Overload, Over Temperature |
Remote: | RC-15A (Sold Separately) with 15' Cable |
Safety: | Intertek - ETL Listed. Conforms to ANSI/UL Standard 458 and Certified to CSA Standard C22.2 No. 107.1-01 |
EMI/EMC: | FCC Part 15(B), Class B |
Electrical Data |
|
Output Voltage: |
120 VAC ± 3% |
Maximum Output Current: | 5.10 Amps |
Output Frequency: | 60 Hz ± 1% |
Output Voltage Waveform: | Pure Sine Wave |
Total Harmonic Distortion: | <3% |
Continuous Output Power: | 600 Watts |
Surge Output Power: | 1000 Watts (< 8 ms) |
Peak Efficiency: | 85% |
Nominal DC Input Voltage: | 24 Volts |
DC Input Voltage Range: | 21.4 - 33.0 VDC |
Maximum Input Current: | 40 Amps |
DC Input Current at No Load: | < 450 mA |
Low DC Input Voltage Alarm: | 21.4 Volts ± 0.2 Volts |
Low DC Input Voltage Shutdown: | 20 Volts ± 0.2 Volts ; Auto-reset: 23 Volts ± 0.5 Volts |
High DC Input Voltage Shutdown: | 33.0 Volts; Auto Reset at < 33.0 Volts |
Short Circuit Shutdown: | When Output Voltage Drops to 80 VAC or Lower for up to 2.5 Sec |
Overload Shutdown: | At Overload of 110% to 115% for 2 to 2.5 Sec |
Ground Fault Shutdown: | Through GFCI Outlets (5 to 6 mA Leakage) |
Over Temperature Shutdown: | 90°C ± 5°C ; Auto reset at 65°C ± 5°C |
Reverse Polarity on DC Input Side: | External/Internal DC Sides Fuses Will Blow |
Datasheets |
|
Document | Type |
Samlex America PST-600-24 Specs | Specifications |
Samlex America PST-600-24 Installation Guide | Installation Guide |
Warranty | 2 Year Limited Warranty |
