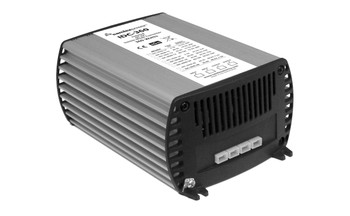

Samlex IDC-360A-24 15A DC-DC Isolated Converter

IDC-360A-24

Hover over image to zoom

  • IDC-360A-24
  • IDC-360A-24
Samlex America
MSRP: $395.95
$302.00 (You save $93.95)
SKU: ALG-030-08758
Note: 1-2 Week Lead Time
Condition: New
Weight: 3.10 LBS
Shipping: Calculated at checkout
  • Buy 2 - 4 and get 1% off
  • Buy 5 or above and get 2% off

 Product Description

Samlex America 15A DC-DC Isolated Converter - IDC-360A-24

Samlex America, DC-DC Isolated Converter, 9-18V to 24V, 15A, IDC-360A-24

IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360A-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 15 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with ¼” push-on flat blade “quick disconnect” connectors. IDC-360A-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/EC.

Features

  • Highlights - Advanced switch mode design. Compact and lightweight. High efficiency. Galvanic isolation between input and output: suitable for both common/different grounds on input and output and for noise sensitive applications like radios and instrumentation. Compliance with European standards - CE marked.



General Information
Manufacturer: Samlex America
Product Line:
 Samlex Accessory
Model ID:
 IDC-360A-24
Certifications and Safety Ratings: ce.gif



Mechanical Data

Technology: DC-DC Converter
Dimensions:
 5.23 x 7.50 x 3.27 inches
Weight: 3.10 lbs
Cooling: 1 Temperature Controlled Fan
Short Circuit / Overload: Yes
Over Voltage on Output Side: Yes
Over Voltage / Transients on Input Side: Yes
Reverse Polarity on Input Side: Yes
Over Temperature: Yes
Input / Output Connections: Quick Connect Male Tabs 1/4" Wide Blades
Operating Temperature Range: -20°C to +30°C, De-Rate Linearly to Zero at 70°C
Operating Humidity: Maximum 95%
European Conformity Marking: CE Marked
Emission: EN50081-1 / EN61000-6-3
Immunity: EN50082-1 / EN61000-6-1
Automotive: Automotive Directive 95/54/EC



Electrical Data

Input Voltage Range:
 9-18 VDC
Maximum Input Current: < 40 Amps
No Load Current Draw: < 25 mA
Output Voltage: 24.5 VDC
Output Ripple and Noise: < 50 mV RMS
Maximum Continuous Output Current: 15 Amps
Peak Efficiency: > 85%
Input to Output Isolation: > 400 RMS
Input Side Fuse: 32 Volts, 40 Amps
Output Side Fuse: 32 Volts, 15 Amps



Datasheets

Document Type
logo-adobe-pdf-2.jpgSamlex America IDC-360A-24 Specs Specifications
logo-adobe-pdf-2.jpgSamlex America IDC-360A-24 Manual User's Manual
Warranty 2 Year Limited Warranty
