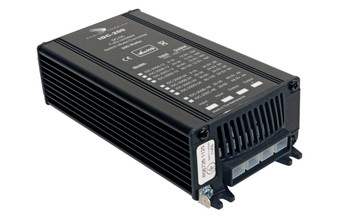

Samlex IDC-200A-24 8A DC-DC Isolated Converter
Hover over image to zoom
Samlex America
Discontinued
SKU: ALG-030-08751
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 1.40 LBS
Product Description
| Samlex America 8A DC-DC Isolated Converter - IDC-200A-24 |
|
Samlex America, DC-DC Isolated Converter, 9-18V to 24V, 8A, IDC-200A-24 IDC-200 series is a complete line of high efficiency 200 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-200A-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 8 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with ¼” push-on flat blade “quick disconnect” connectors. IDC-200A-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE. |
|
Features
|
| General Information | |
| Manufacturer: | Samlex America |
| Product Line: |
Samlex Accessory |
| Model ID: |
IDC-200A-24 |
| Certifications and Safety Ratings: |  |
| Mechanical Data |
|
| Technology: | DC-DC Converter |
| Dimensions: |
6.90 x 3.50 x 1.90 inches |
| Weight: | 1.40 lbs |
| Cooling: | By Temperature Controlled Fan |
| Input/Output Connections: | Quick Connect Male: 1/4" Wide Blades |
| Input Wire (Up to 6 ft): | AWG #6 |
| Output Wire (Up to 10 ft): | AWG #12 |
| External Input Side Fuse: | 32 Volts, 30 Amps |
| External Output Side Fuse: | 32 Volts, 10 Amps |
| Operating Temperature Range: | -20°C to +30°C, De-Rate Lineraly to Zero at 70°C |
| Protections: | Overload/Short Circuit on the Output Side, Over Voltage on the Output Side, Over Voltage / Transients on the Input Side, Reverse Polarity on the Input Side, Over Heating |
| Emission: | EN50081-1 / EN61000-6-3 |
| Immunity: | EN50082-1 / EN61000-6-1 |
| Automotive: | 95 / 54 / EC |
| Electrical Data |
|
| Input Voltage Range: |
9-18 VDC |
| Output Voltage: | 24.5 VDC |
| Output Current: | 8 Amps |
| Input to Output Isolation: | Yes > 400V RMS |
| Output Ripple and Noise: | < 50 mV RMS |
| Peak Efficiency: | 85% |
| Datasheets |
|
| Document | Type |
 Samlex America IDC-200A-24 Specs |
Specifications |
| Samlex America IDC-200A-24 Manual |
User's Manual |
| Warranty | 2 Year Limited Warranty |
