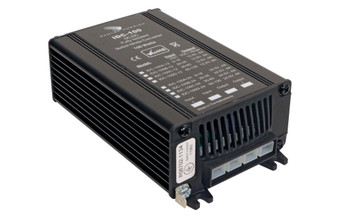

Samlex IDC-100A-24 4A DC-DC Isolated Converter

IDC-100A-24

Hover over image to zoom

  • IDC-100A-24
  • IDC-100A-24
Samlex America
MSRP: $295.95
$204.00 (You save $91.95)
SKU: ALG-030-08744
Note: 1-2 Week Lead Time
Condition: New
Weight: 1.20 LBS
Shipping: Calculated at checkout
  • Buy 2 - 4 and get 1% off
  • Buy 5 or above and get 2% off

 Product Description

Samlex America 4A DC-DC Isolated Converter - IDC-100A-24

Samlex America, DC-DC Isolated Converter, 9-18V to 24V, 4A, IDC-100A-24

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100A-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 4 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with ¼” push-on flat blade “quick disconnect” connectors. IDC-100A-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

Features

  • Highlights - Fully isolated. Short circuit protected. Current limited.



General Information
Manufacturer: Samlex America
Product Line:
 Samlex Accessory
Model ID:
 IDC-100A-24
Certifications and Safety Ratings: ce.gif



Mechanical Data

Technology: DC-DC Converter
Dimensions:
 5.90 x 3.50 x 1.90 inches
Weight: 1.20 lbs
Cooling: By Temperature Controlled Fan
Input/Output Connections: Quick Connect Male: 1/4" Wide Blades
Input Wire (Up to 6 ft): AWG #8
Output Wire (Up to 10 ft): AWG #12
External Input Side Fuse: 32 Volts, 15 Amps
External Output Side Fuse: 32 Volts, 20 Amps
Operating Temperature Range: -20°C to +30°C, De-Rate Lineraly to Zero at 70°C
Protections: Overload/Short Circuit on the Output Side, Over Voltage on the Output Side, Over Voltage / Transients on the Input Side, Reverse Polarity on the Input Side, Over Heating
Emission: EN50081-1 / EN61000-6-3
Immunity: EN50082-1 / EN61000-6-1
Automotive: 95 / 54 / EC



Electrical Data

Input Voltage Range:
 9-18 VDC
Output Voltage: 24.5 VDC
Output Current: 4 Amps
Input to Output Isolation: Yes > 400V RMS
Output Ripple and Noise: < 50 mV RMS
Peak Efficiency: 85%



Datasheets

Document Type
logo-adobe-pdf-2.jpgSamlex America IDC-100A-24 Specs Specifications
logo-adobe-pdf-2.jpgSamlex America IDC-100A-24 Manual User's Manual
Warranty 2 Year Limited Warranty
