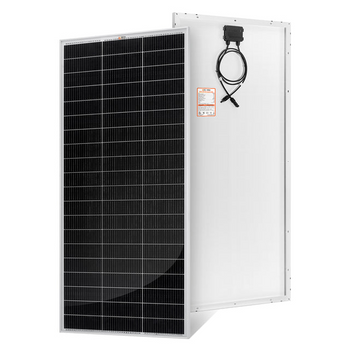

Rich Solar MEGA 200 PRO | 200 Watt 24 Volt Solar Panel | Premium 24V Off-Grid Solar Panel for RVs, Trailers, Cabins | 25-Year Output Warranty | UL Certified

Image 1

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
  • Image 9
  • Image 10
  • Image 11
Rich Solar
$249.99
SKU: RS-M200P
Weight: 24.00 LBS
Shipping: Free Shipping

 Product Description

Rich Solar MEGA 200 PRO | 200 Watt 24 Volt Solar Panel | Premium 24V Off-Grid Solar Panel for RVs, Trailers, Cabins | 25-Year Output Warranty | UL Certified - RS-M200P

Industry Standard

Generates 5.51A of power, charges 24-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.

High Performance

Excellent low-light performance even on early mornings, evenings, and cloudy days.

Rugged Durability

Built with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame.

Simple Installation

Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.

Warranty

25-year limited warranty for power output; 10-year workmanship warranty.

FEATURES

  • 18 busbar solar cell configuration
  • Lightweight anodized aluminum frame
  • High transmission, AR (anti-reflective) coated tempered glass
  • Industry standard quick connect cables (Solar Connectors) work in series or in parallel
  • Excellent low light performance on cloudy days, mornings and evenings
  • Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
  • Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

Rich Solar Mega 200W Specification

Rich Solar Mega 200W Max Features
Man installing solar panel.



General Information
Manufacturer: Rich Solar
Product Line: Solar Panel
Model ID:
 RS-M200P
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications

200W 24V SOLAR PANEL

  • Maximum Power(Pmax) 200W
  • Maximum Power Voltage(Vmp) 36.3V
  • Maximum Power Current(Imp) 5.51A
  • Open Circuit Voltage(Voc) 43.5V
  • Short Circuit Current(Isc) 5.93A
  • Maximum System Voltage 1000 VDC
  • Maximum Series Fuse Rating 15A
  • Temperature Range -40 ~ +185°F
  • Weight 24.0 lb
  • Dimensions 58.7 x 26.8 x 1.2 in




Datasheets

Document Type

logo-adobe-pdf-2.jpgSheet

 logo-adobe-pdf-2.jpgCertification

Sheet

Certification
