Panasonic VBHN315KA01 315w Mono Solar Panel

Hover over image to zoom

  • VBHN315KA01
Panasonic Solar
RRP: $645.75
$340.20 (You save $305.55)
SKU:
SLG-110-1083
Condition:
New
Weight:
40.81 LBS
Note:
This item ships via LTL freight only.
Shipping:
Calculated at checkout

 Product Description

Panasonic Eco Solutions 315w Mono Solar Panel - hit VBHN315KA01

Panasonic, 315W PV Module, MC4, PV Wire, 35mm Black Frame on Black back-sheet, BoB, 96 Cell HIT, 15A Fuse, 600VDC, No PTC, VBHN315KA01

Panasonic's unique hetero-junction technology uses ultra-thin amorphous silicon layers. These thin dual layers reduce losses, resulting in higher energy output than conventional panels.

Panasonic HIT Black is the brand new all-black module which features high efficiency 19.1%, industry leading temperature coefficient of -0.258% and a sleek design. Powerful and aesthetic designed to make your roof look great.

Features

  • Efficiency & Reliability - As temperature increases, HIT continues to perform at high levels due to the industry leading temperature coefficient of -0.258%/°C. No other module even comes close to our temperature characteristics. That means more energy throughout the day. Panasonic's vertical integration, 20 years of experience manufacturing HIT and 20 internal tests beyond those mandated by current standards provides extreme quality assurance.
  • Low Degration - HIT "N-Type" cells result in extremely Low Light Induced Degradation (LID) and zero Potential Induced Degradation (PID) which supports reliability and longevity. This technology reduces annual degradation to 0.26% compared to 0.70% in conventional panels, guaranteeing more power for the long haul.
  • Highlights - Industry leading 25 year product workmanship and performance warranty is backed by a century old company- Panasonic. Power output is guaranteed to 90.76% after 25 years, far greater than other companies. Enables higher power output and greater energy yields. HIT provides maximum production for your limited roof space. The water drainage system give rain, water and snow melt a place to go, reducing water strains and soiling on the panel. Less dirt on the panel means more sunlight getting through to generate power.



General Information
Manufacturer: Panasonic
Product Line:
HIT
Model ID:
VBHN315KA01
Certifications and Safety Ratings: ul.jpg cec.jpg iso.jpg iec.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:

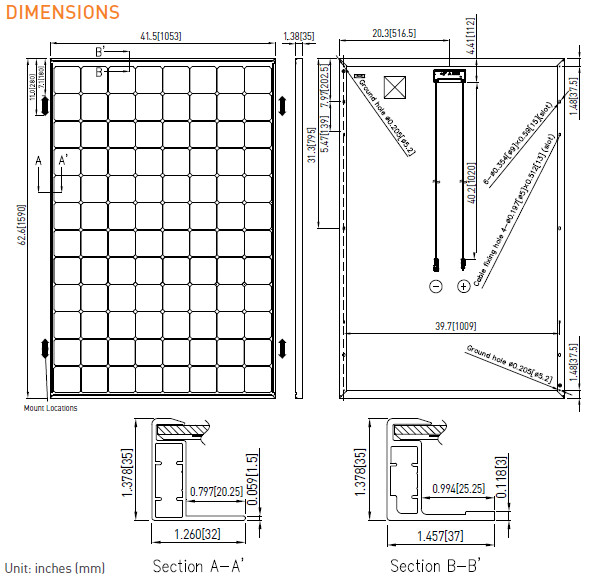

62.60 x 41.50 x 1.40 inches (VBHN315KA01 Dimensions)
Weight: 40.81 lbs
Internal Bypass Diodes: 4 Bypass Diodes
Module Area: 18.02 ft²
Cable Length +Male/-Female: 40.2/40.2 in
Cable Size/Type: No. 12 AWG/PV Cable
Connector Type: Multi-Contact Type IV (MC4)
Static Wind/Snow Load: 50 PSF (2400 Pa)
Operating Temperature: -40°C to +85°C
Hail Safety Impact Velocity: 1" Hailsone at 52 MPH
Safety & Rating Certifications: UL 1703, cUL, CEC
UL 1703 Fire Classification: Type 2



Electrical Data

Nominal Maximum Power (Pmax): 315 Watts
Maximum Power Voltage (Vpm): 58.40 Volts
Maximum Power Current (Ipm) 5.40 Amps
Operating Circuit Voltage (Voc): 70.20 Volts
Short Circuit Current (Isc): 5.83 Amps
Temperature Coefficient (Pmax): -0.258%/°C
Temperature Coefficient (Voc): -0.16V/°C
Temperature Coefficient (Isc): 3.21mA/°C
NOCT: 44.0°C
Cell Efficiency: 21.20%
Module Efficiency: 18.80%
Watts per Feet²: 17.50 Watts
Maximum System Voltage: 600 Volts
Series Fuse Rating: 15 Amps
Warranted Tolerance (-/+): +10%/-0%



Datasheets

Document Type
logo-adobe-pdf-2.jpgPanasonic Eco Solutions VBHN315KA01 Specs Specifications
logo-adobe-pdf-2.jpgPanasonic Eco Solutions VBHN315KA01 Installation Installation Guide
Warranty 15 Year Workmanship Warranty
Performance Guarantee 25 Year Power Output
logo-adobe-pdf-2.jpgPanasonic Eco Solutions VBHN315KA01 Warranty Warranty
